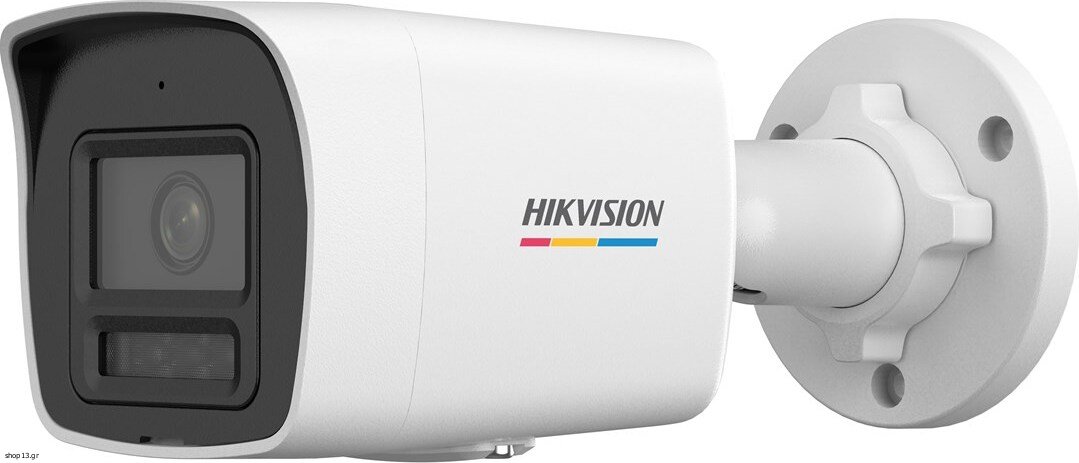

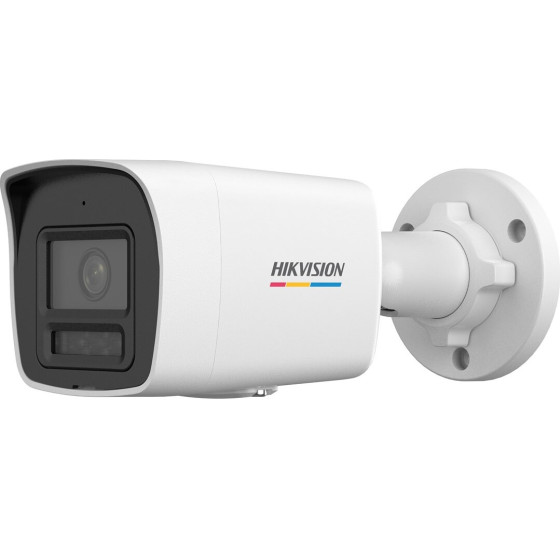

Hikvision IP CAMERA DS-2CD1047G2H-LIU(2.8mm) EN - (DS-2CD1047G2H-LIU(2.8mm) PL)

Technical details
Sustainability certificates: REACH, WEEE

Design
Product colour: White
International Protection (IP) code: IP67
Housing material: Plastic, Metal

Power
PoE standard: IEEE 802.3af
DC output current: 0.5 A
Power management: DC 12 V
Power over Ethernet (PoE): Yes

Security
Heartbeat: Yes
Mirror: Yes
Video motion detection: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Web-based management: Yes

Weight & dimensions
Depth: 172.9 mm
Width: 67.9 mm
Weight: 550 g
Package width: 150 mm
Package height: 141 mm
Package depth: 150 mm
Height: 69.8 mm
Package weight: 800 g

Network
Number of users: 32 user(s)
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Quality of Service (QoS) support: Yes

Performance
Day/night mode: Yes
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): 120 dB

Packaging content
Number of cameras: 1

Audio
Mono sound: Yes
Audio codecs: G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Sample rate: 8 kHz / 16 kHz
Noise filter: Y
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, vertical: 60°
Lens viewing angle, horizontal: 115°
Lens viewing angle, diagonal: 143°
Tilt angle range: 0 - 90°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Pan range: 0 - 360°

Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")

Video
Region of Interest (ROI) encoding: Yes
Video compression formats: H.265+, H.264+, H.264, H.265, M-JPEG
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Maximum resolution: 2560 x 1410 pixels
Highlight Compensation (HLC): Yes
Bit rate: 32 Kbps - 16 Mbps
Total megapixels: 4 MP

Night vision
Night vision: Yes
Infra-red wavelength: 850 nm
LED type: IR
Night vision distance: 30 m
Minimum illumination: 0.001 lx

Lens system
Maximum aperture number: 1
Detect distance (wide): 64 m
Number of lenses: 1
Observe distance (wide): 25 m
Identify distance (wide): 6 m
Recognize distance (wide): 12 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 36 months
