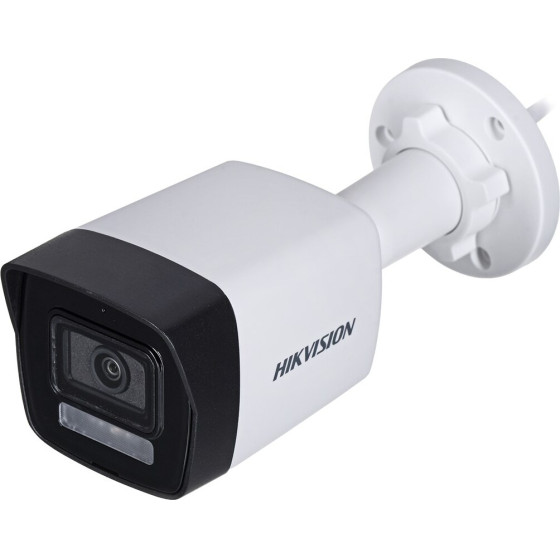

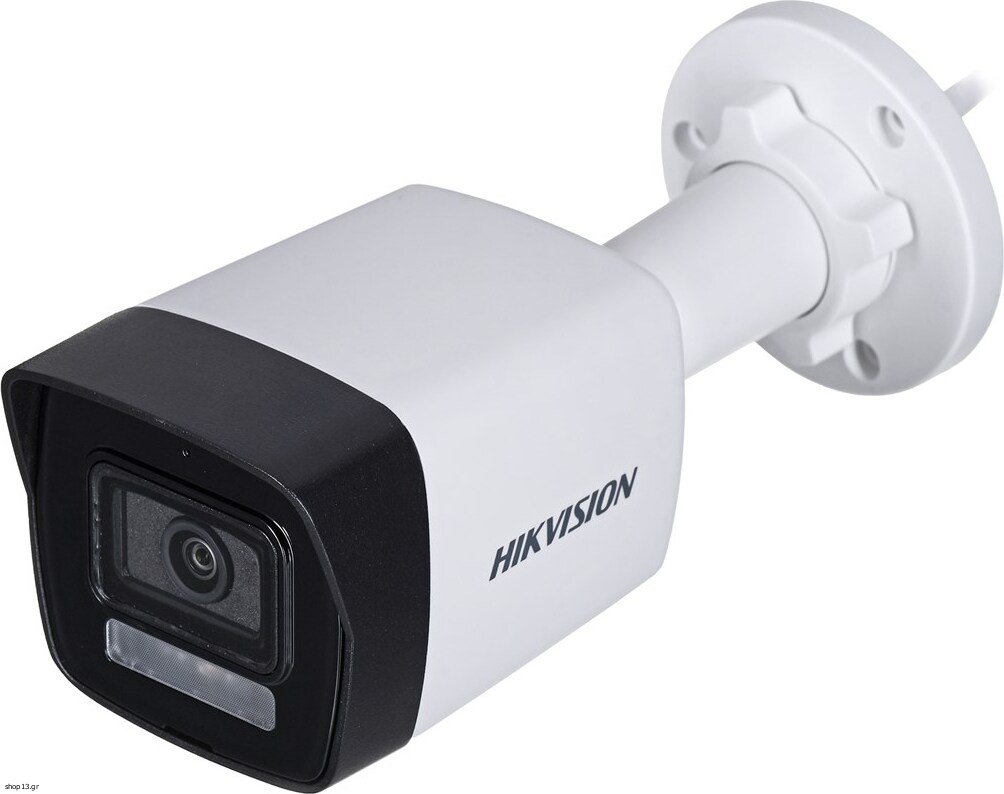

Hikvision IP camera - (DS-2CD1043G2-LIU(2.8mm))

Technical details
Lens mount interface: M12
Sustainability certificates: WEEE, CE, RoHS, Federal Communications Commission (FCC), REACH

Design
Housing material: Metal, Plastic
Protection features: Water resistant, Dust resistant
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Form factor: Bullet
Product colour: White

Power
Power consumption (Power over Ethernet (PoE)): 6.5 W
DC output voltage: 12
DC output current: 0.4 A
Power consumption (max): 5 W
Power source type: DC, PoE

Security
Heartbeat: Yes
Digital watermark: Yes
Privacy protection: Yes
Mirror: Yes
Active tampering alarm: Yes
Digest authentication: Yes
Video motion detection: Yes
Audit log: Yes
Password protection: Yes
Password reset via email: Yes

Operational conditions
Storage temperature (T-T): -30 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Management features
Web-based management: Yes

Weight & dimensions
Length: 170.8 mm
Height: 66 mm
Package height: 118 mm
Width: 69.1 mm
Package depth: 121 mm
Package width: 216 mm
Weight: 270 g
Package weight: 481 g

Network
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Wi-Fi: No
Ethernet LAN: Yes
Live view: Yes
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels
Bluetooth: No
Quality of Service (QoS) support: Yes

Performance
Languages support: Ukrainian, English
Wide Dynamic Range (WDR): Yes
Dynamic range: 120 dB
Number of languages: 2
Day/night mode: Yes
Placement supported: Indoor & outdoor
Type: IP security camera
Connectivity technology: Wired

Packaging content
Number of cameras: 1

Storage
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Angle of rotation: 360°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 4
Lens viewing angle, horizontal: 98°
Lens viewing angle, diagonal: 114°
Lens viewing angle, vertical: 54°
Tilt angle range: 0 - 90°

Image sensor
Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Progressive scan: Yes

Video
Bit rate: 32 Kbps - 8 Mbps
Total megapixels: 4 MP
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Video compression formats: H.265+, H.264, M-JPEG, H.264+, H.265
Image quality adjustment: Contrast, Sharpness, Saturation, Brightness
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Video streaming: Yes
Noise reduction technology: 3D noise reduction
Frame rate: 25 fps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Supported graphics resolutions: 2560 x 1440, 1280 x 720 (HD 720), 640 x 360, 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Maximum resolution: 2560 x 1440 pixels

Night vision
LED type: IR
Infra-red wavelength: 850 nm
Night vision distance: 30 m
Night vision: Yes

Lens system
Number of lenses: 1
Recognize distance: 12 m
Identify distance: 6 m
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Observe distance: 25 m
Detect distance: 63 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: warranty 36 months
