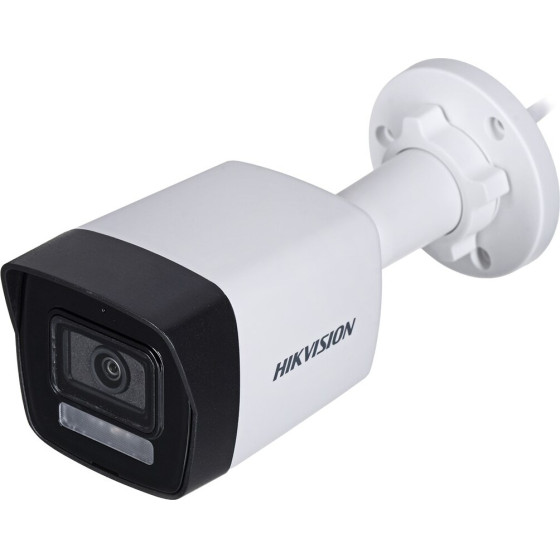

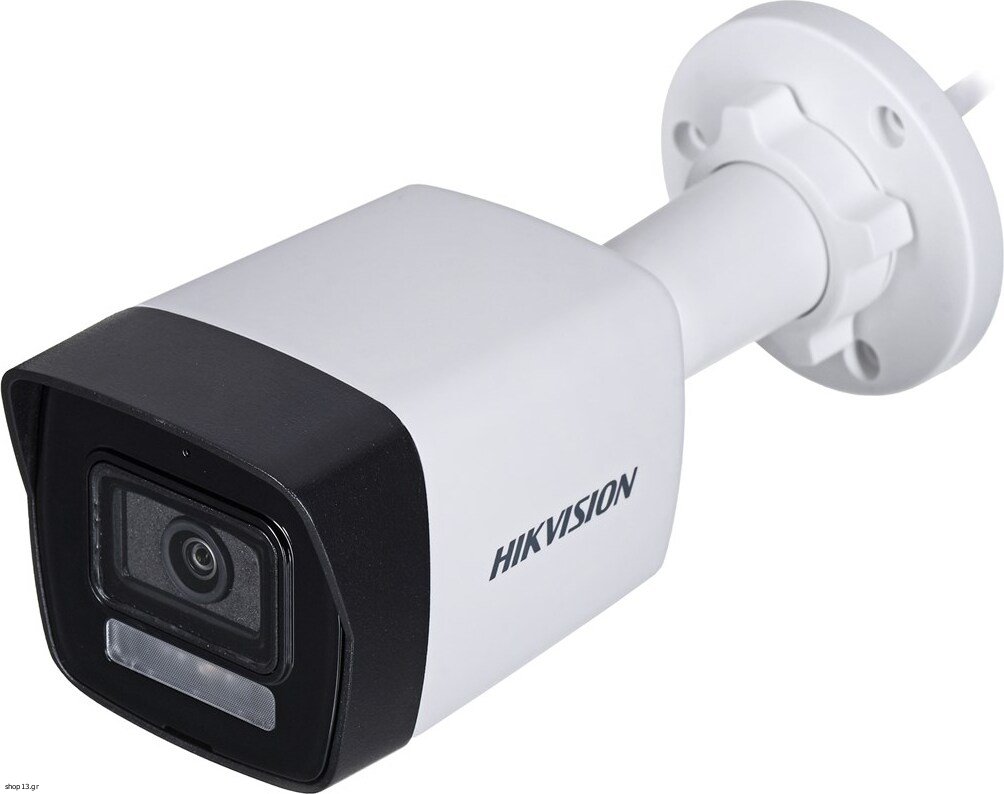

Hikvision IP camera DS-2CD1043G2-LIU(2.8mm) - (DS-2CD1043G2-LIU(2.8mm) PL)

Technical details
Sustainability certificates: WEEE, RoHS, CE, Federal Communications Commission (FCC), REACH
Lens mount interface: M12

Design
Product colour: White
International Protection (IP) code: IP67
Housing material: Plastic, Metal
Protection features: Water resistant, Dust resistant
Form factor: Bullet
Mounting type: Ceiling/wall

Power
Power consumption (max): 5 W
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 6.5 W
DC output current: 0.4 A
Power source type: DC, PoE

Security
Audit log: Yes
Password reset via email: Yes
Digest authentication: Yes
Video motion detection: Yes
Mirror: Yes
Heartbeat: Yes
Privacy protection: Yes
Digital watermark: Yes
Active tampering alarm: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%

Management features
Web-based management: Yes

Weight & dimensions
Package weight: 481 g
Package depth: 121 mm
Height: 66 mm
Length: 170.8 mm
Package width: 216 mm
Width: 69.1 mm
Package height: 118 mm
Weight: 270 g

Network
Bluetooth: No
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Quality of Service (QoS) support: Yes
Number of simultaneous live view channels: 6 channels
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
User access level: Administrator, Operator, User
Live view: Yes
Number of users: 32 user(s)

Performance
Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Languages support: Ukrainian, English
Dynamic range: 120 dB
Number of languages: 2
Placement supported: Indoor & outdoor

Packaging content
Number of cameras: 1

Storage
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 90°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Lens viewing angle, horizontal: 98°
Angle of rotation: 360°
Lens viewing angle, vertical: 54°
Lens viewing angle, diagonal: 114°
Number of Privacy masking areas: 4

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Number of sensors: 1

Video
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 8 Mbps
Total megapixels: 4 MP
Frame rate: 25 fps
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 640 x 360, 640 x 480 (VGA)
Maximum resolution: 2560 x 1440 pixels
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Video compression formats: H.264+, M-JPEG, H.264, H.265, H.265+
Privacy masking: Yes
Image quality adjustment: Sharpness, Contrast, Saturation, Brightness

Night vision
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Detect distance: 63 m
Identify distance: 6 m
Observe distance: 25 m
Maximum aperture number: 1.6
Recognize distance: 12 m
Fixed focal length: 2.8 mm
Number of lenses: 1

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: warranty 36 months
