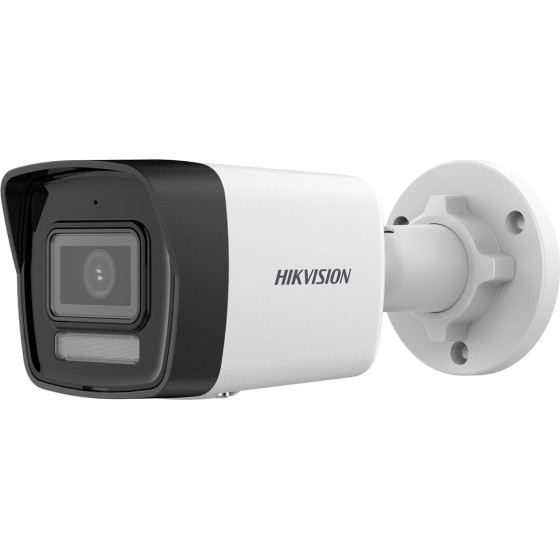

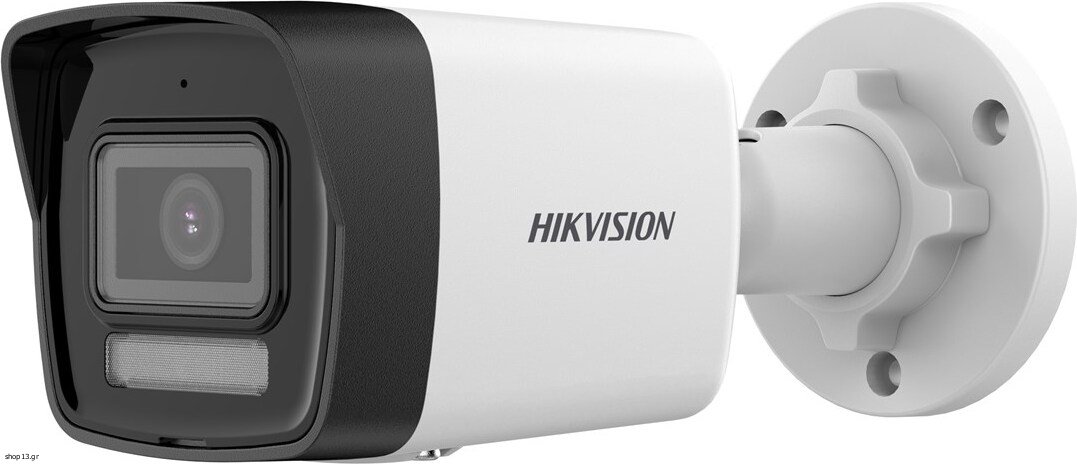

Hikvision IP CAMERA DS-2CD1021G2-LIU 2.8mm - (DS-2CD1021G2-LIU 2.8MM PL)

Design
Product colour: White
International Protection (IP) code: IP67
Form factor: Bullet
Housing material: Metal, Plastic
Mounting type: Ceiling/wall

Power
Power source type: DC, PoE
Power consumption (max): 5 W
DC output voltage: 12
DC output current: 0.4 A
Power consumption (Power over Ethernet (PoE)): 6.5 W

Security
Password protection: Yes
Video motion detection: Yes
Mirror: Yes
Digital watermark: Yes
Heartbeat: Yes

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Weight & dimensions
Weight: 265 g
Height: 69.1 mm
Length: 170.8 mm
Width: 66 mm
Package weight: 495 g

Network
Bluetooth: No
Networking standards: IEEE 802.3af
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Quality of Service (QoS) support: Yes
Number of users: 32 user(s)

Performance
Connectivity technology: Wired
Day/night mode: Yes
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor

Packaging content
Number of cameras: 1

Storage
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 90°
Angle of rotation: 360°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, diagonal: 118°
Camera pan control: Yes
Lens viewing angle, horizontal: 101°
Camera tilt control: Yes
Lens viewing angle, vertical: 56°

Image sensor
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1

Video
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360
Maximum resolution: 1920 x 1080 pixels
Noise reduction: Yes
Total megapixels: 2 MP
Region of Interest (ROI) encoding: Yes
Frame rate: 30 fps
Bit rate: 32 Kbps - 8 Mbps
Video compression formats: H.265, H.264, H.264+, H.265+, M-JPEG
Privacy masking: Yes
Video streaming: Yes
Image quality adjustment: Brightness, Saturation, White balance, Contrast, Sharpness
Gain control type: Auto

Night vision
LED type: IR
Night vision distance: 20 m
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Maximum aperture number: 2
Fixed focal length: 2.8 mm
Number of lenses: 1

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
