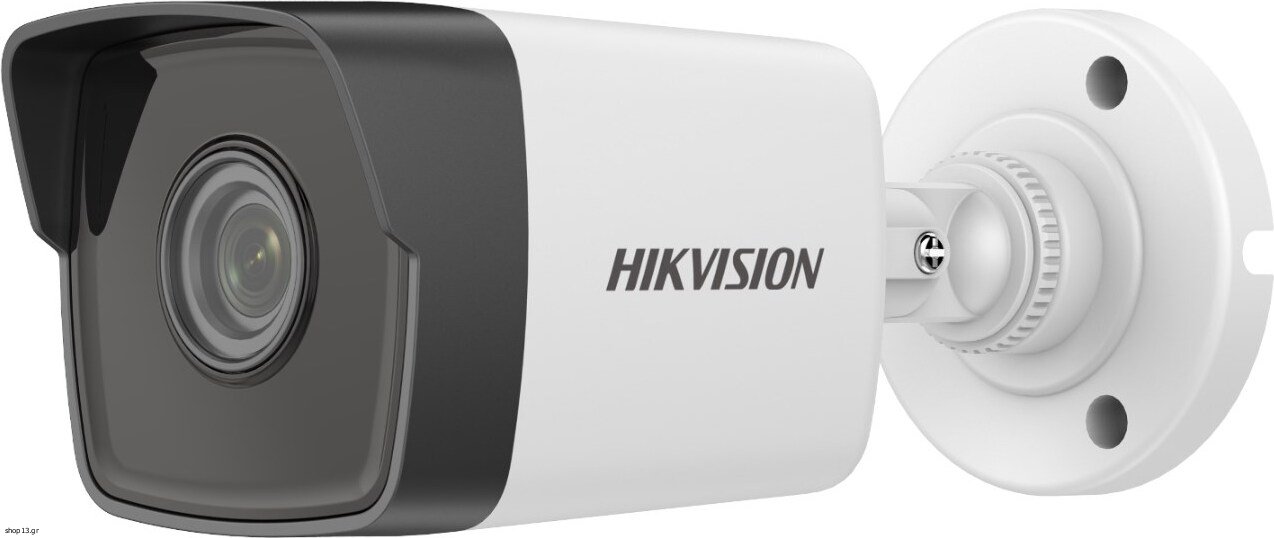

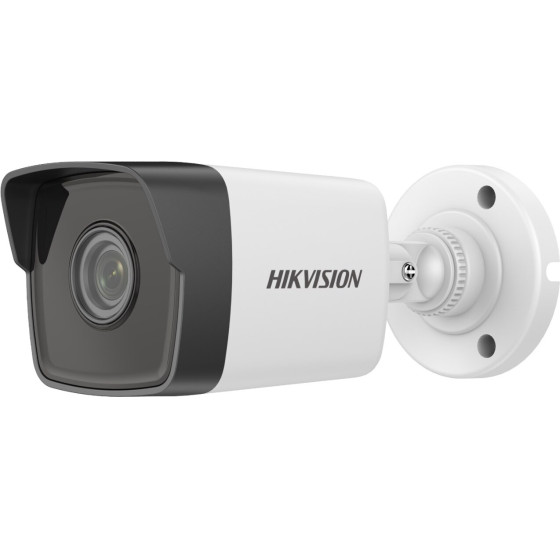

Hikvision IP CAMERA DS-2CD1021-I (F) 2.8MM - (DS-2CD1021-I(F)2.8mm)

Design
Form factor: Bullet
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Product colour: White
Mounting type: Ceiling/wall

Power
Power consumption (max): 3.5 W
Power source type: DC, PoE
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 4.5 W
DC output current: 0.3 A

Security
IP address filtering: Yes
Anti-flicker: Yes
Digital watermark: Yes
Mirror: Yes
Video motion detection: Yes
Heartbeat: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions
Length: 172.7 mm
Depth: 66 mm
Weight: 270 g
Width: 69.1 mm
Package weight: 510 g

Network
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Networking standards: IEEE 802.3af, IEEE 802.1x
Wi-Fi: No
Bluetooth: No
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)

Performance
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Day/night mode: Yes

Packaging content
Number of cameras: 1

Storage
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Angle of rotation: 360°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, vertical: 62°
Lens viewing angle, horizontal: 114.8°
Tilt angle range: 0 - 180°
Pan range: 0 - 360°
Camera tilt control: Yes
Camera pan control: Yes
Lens viewing angle, diagonal: 135.5°

Image sensor
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of sensors: 1

Video
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 640 x 360
Frame rate: 30 fps
Video compression formats: H.264+, M-JPEG, H.265, H.264, H.265+
Back Light Compensation (BLC): Yes
Total megapixels: 2 MP
Bit rate: 32 Kbps - 8 Mbps
Maximum resolution: 1920 x 1080 pixels
Image quality adjustment: Sharpness, Saturation, Contrast, Brightness
Video streaming: Yes
Gain control type: Auto
Privacy masking: Yes

Night vision
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Fixed focal length: 2.8 mm
Maximum aperture number: 2
Number of lenses: 1

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
