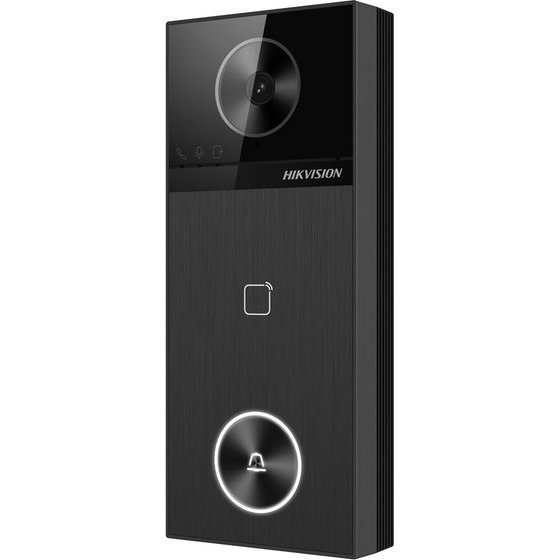

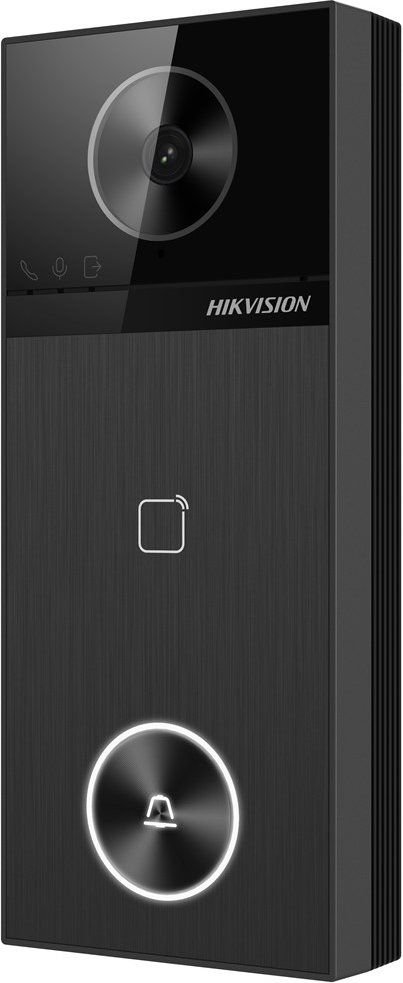

Hikvision DS-KV6114-WBE1(O-STD) Video Intercom System 4 Mp Black - (DS-KV6114-WBE1)

Technical details
Sound level: 80 dB
Colour: No
Built-in microphone: Yes
Maximum number of cameras supported: 1
Backlight buttons: Yes
Motion detection function: Yes
Number of buttons: 1 buttons
Relay inputs: 2
Echo cancellation: Yes
Connectivity technology: Wired
Number of users: 2000 user(s)
Speakerphone: Yes
Wall mountable: Yes
RFID reader: Yes

Design
Housing material: Glass, Plastic
International Protection (IP) code: IP65
Product colour: Black
LED indicators: Yes
Placement supported: Vertical
Control type: Buttons
On Screen Display (OSD) languages: Multi

Power
Power consumption (typical): 10 W
AC adapter output voltage: 12 V
AC adapter output current: 1 A

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 60 °C

Weight & dimensions
Width: 69 mm
Weight: 273 g
Depth: 24.7 mm
Height: 164 mm

Network
Power over Ethernet (PoE): Yes
Ethernet interface type: Fast Ethernet
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Supported network protocols: TCP/IP, RTSP, ipv6,onvif
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100
Bluetooth: Yes

Packaging data
Package weight: 431 g
Indoor unit included: No
Outdoor unit included: Yes

Display
Video formats supported: M-JPEG, H.265, H.264
Wide Dynamic Range (WDR): Yes

Audio
Voice codecs: G.711a, G.722.1, G.711u, AAC, G.729, G.726, OPUS
Microphone direction type: Omnidirectional
Built-in speaker(s): Yes

Storage
Compatible memory cards: MicroSD (TransFlash)
ROM capacity: 4000 MB
Maximum memory card size: 128 GB
Memory card slot: Yes

Camera
Viewing angle, vertical: 75°
Supported video modes: 720p, 480p, 1080p, 1520p
Viewing angle, horizontal: 150°
Maximum video resolution: 2688 x 1520 pixels
Field of view (FOV) angle: 150°
Megapixel (approx.): 4 MP

Night vision
Night vision distance: 3 m
LED type: IR
Night vision: Yes

Outdoor unit
Alarm input channels (transmitter): 4

Indoor unit
RS-485 ports: 1


Warranty: Manufacturer warranty 36 months
