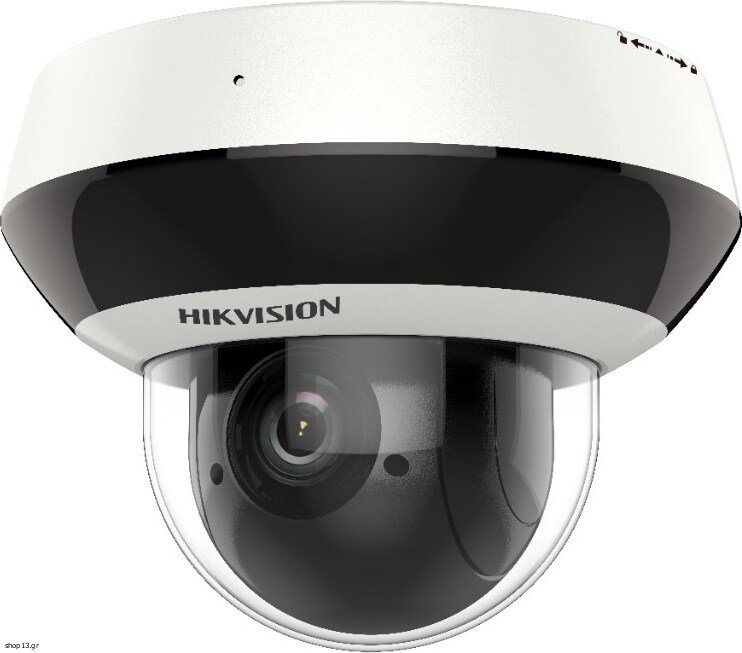

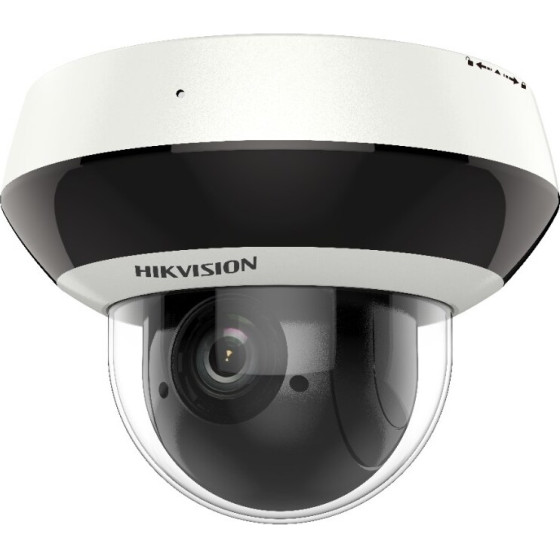

Hikvision DS-2DE2A404IW-DE3(C0)(O-STD)(S6)(C) surveillance camera Dome IP security camera Indoor & outdoor 2560 x 1440 px Ceiling - (DS-2DE2A404IW-DE3)

Design
Protection features: Water resistant, Dust resistant
International Protection (IP) code: IP65
IK code: IK10
Mounting type: Ceiling
Product colour: Black, White
Form factor: Dome

Power
Power consumption (max): 9.2 W
DC output voltage: 12
DC output current: 0.06 A
Power source type: DC, PoE

Security
Active tampering alarm: Yes
Digital watermark: Yes
Mirror: Yes
Alert notification type: E-mail
Automatic Network Replenishment (ANR): Yes
Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
HTTPS encryption: Yes
Security algorithms: EAP-MD5, EAP-LEAP, EAP-TLS

Operational conditions
Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%

Management features
Web browser: Yes
Web-based management: Yes
Reset button: Yes

Weight & dimensions
Diameter: 13.1 cm
Height: 101.7 mm
Weight: 530 g

Network
Ethernet LAN: Yes
Live view: Yes
Ethernet interface type: Fast Ethernet
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Wi-Fi: No
Client interoperability: iVMS-4200, HikCentral Pro, Hik-Connect
Number of users: 32 user(s)
Networking standards: IEEE 802.3af, IEEE 802.1x
Bluetooth: No
Quality of Service (QoS) support: Yes

Performance
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Placement supported: Indoor & outdoor
Type: IP security camera
Connectivity technology: Wired

Packaging content
Number of cameras: 1

Audio
Sample rates: 8 - 64 kHz
Bit rate range: 16 - 192 Kbit/s
Voice codecs: AAC, G.722.1, G.726, G.711alaw, MP2L2, G.711ulaw
Signal-to-Noise Ratio (SNR): 52 dB
Audio input channels: 1 channels
Audio output channels: 1 channels
Built-in microphone: Yes

Storage
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 256 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Camera pan control: Yes
Camera tilt control: Yes
Camera shutter speed: 1/1 - 1/30000 s
Lens viewing angle, vertical: 51.1 - 17.7°
Tilt preset speed: 100 °/sec
Pan speed: 100 °/sec
Pan range: 0 - 355°
Tilt speed: 100 °/sec
Lens viewing angle, horizontal: 96.7 - 31.6°
Lens viewing angle, diagonal: 115.1 - 36.3°
Pan preset speed: 100 °/sec
Preset programs quantity: 300
Tilt angle range: 0 - 90°

Image sensor
Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Progressive scan: Yes

Video
Total megapixels: 4 MP
Noise reduction: Yes
Back Light Compensation (BLC): Yes
Frame rate: 30 fps
Image quality adjustment: Sharpness, Contrast, Brightness, Saturation
Highlight Compensation (HLC): Yes
Video compression formats: H.265, H.264+, H.265+, H.264
Gain control type: Auto
Region of Interest (ROI) encoding: Yes
Video streaming: Yes
Privacy masking: Yes
Noise reduction technology: 3D noise reduction
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2560 x 1440, 1280 x 720 (HD 720), 352 x 240, 640 x 480 (VGA), 704 x 576, 704 x 480, 352 x 288
Maximum resolution: 2560 x 1440 pixels

Night vision
Infra-red wavelength: 850 nm
Night vision distance: 20 m
LED type: IR
Night vision: Yes

Lens system
Optical zoom: 4x
Zoom capability: Yes
Number of lenses: 1
Digital zoom: 16x
Identify distance (tele): 18 m
Auto focus: Yes
Recognize distance (tele): 36 m
Focus: Manual
Focal length range: 2.8 - 12 mm
Observe distance (tele): 71.4 m
Maximum aperture number: 1.5
Detect distance (tele): 180 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., The product contains electronic components; do not dispose of with the normal household waste., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
