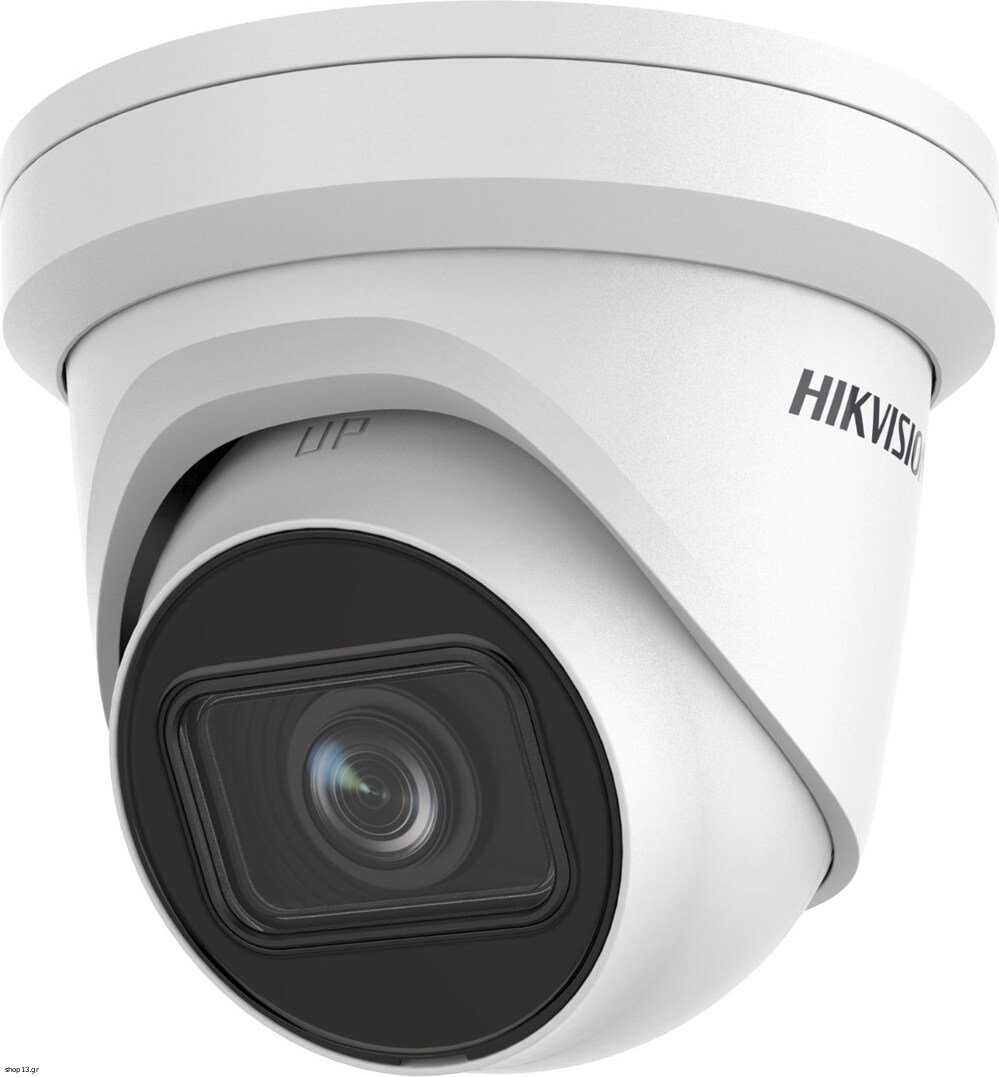

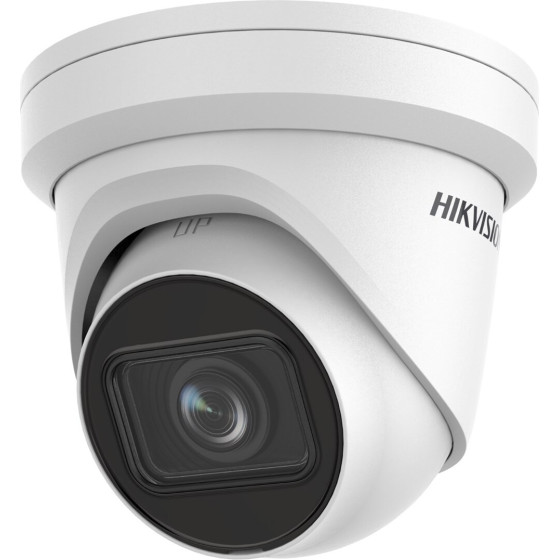

Hikvision DS-2CD2H83G2-IZS In-Ear IP Security Camera Outdoor 3840 x 2160 px Ceiling / Wall - (DS-2CD2H83G2-IZS (2.8-12mm))

Design
Product colour: Black, White
Form factor: Dome
International Protection (IP) code: IP67
IK code: IK10
Housing material: Aluminium
Mounting type: Ceiling/wall

Power
Power consumption (max): 11.04 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 12.5 W
DC output current: 0.92 A
DC output voltage: 12

Security
Security algorithms: HTTPS, TLS
IP address filtering: Yes
HTTPS encryption: Yes
Video motion detection: Yes
Anti-flicker: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Password protection: Yes
Heartbeat: Yes

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Behavior analysis: Intrusion detection, Line crossing detection
Web-based management: Yes
Reset button: Yes

Weight & dimensions
Weight: 830 g
Height: 126 mm
Package width: 216 mm
Package depth: 121 mm
Package height: 118 mm
Package weight: 1.16 kg
Diameter: 13.8 cm

Network
Wi-Fi: No
Bluetooth: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.1x
Quality of Service (QoS) support: Yes
Number of users: 32 user(s)

Performance
Number of languages: 33
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Connectivity technology: Wired
Day/night mode: Yes
Languages support: Greek, French, Vietnamese, Norwegian, Dutch, Czech, Spanish, Hungarian, Korean, Romanian, SER, Lithuanian, Turkish, Thai, German, Polish, Japanese, Russian, Italian, Traditional Chinese, Danish, Slovak, Bulgarian, Swedish, Finnish, Estonian, Portuguese, Slovenian, English, Ukrainian, LAT
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor

Packaging content
Number of cameras: 1

Audio
Sample rate: 48 kHz
Voice codecs: AAC, G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM
Audio formats supported: MP3

Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Maximum memory card size: 256 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Lens viewing angle, horizontal: 108°
Lens viewing angle, vertical: 56°
Lens viewing angle, diagonal: 131°
Camera pan control: Yes
Camera tilt control: Yes
Pan range: 0 - 360°

Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Number of sensors: 1

Video
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360, 2688 x 1520, 3840 x 2160
Bit rate: 32 Kbps - 16 Mbps
Maximum resolution: 3840 x 2160 pixels
Back Light Compensation (BLC): Yes
Video compression formats: H.265, H.265+, H.264, H.264+, M-JPEG
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels: 8 MP
Noise reduction technology: 3D noise reduction
Noise reduction: Yes
Privacy masking: Yes
Image quality adjustment: Brightness, Sharpness, Contrast, Saturation
Highlight Compensation (HLC): Yes
Frame rate: 30 fps
Video streaming: Yes

Night vision
Infra-red wavelength: 850 nm
Night vision distance: 40 m
LED type: IR
Night vision: Yes

Lens system
Maximum aperture number: 1.6
Focal length range: 2.8 - 12 mm
Number of lenses: 1

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
