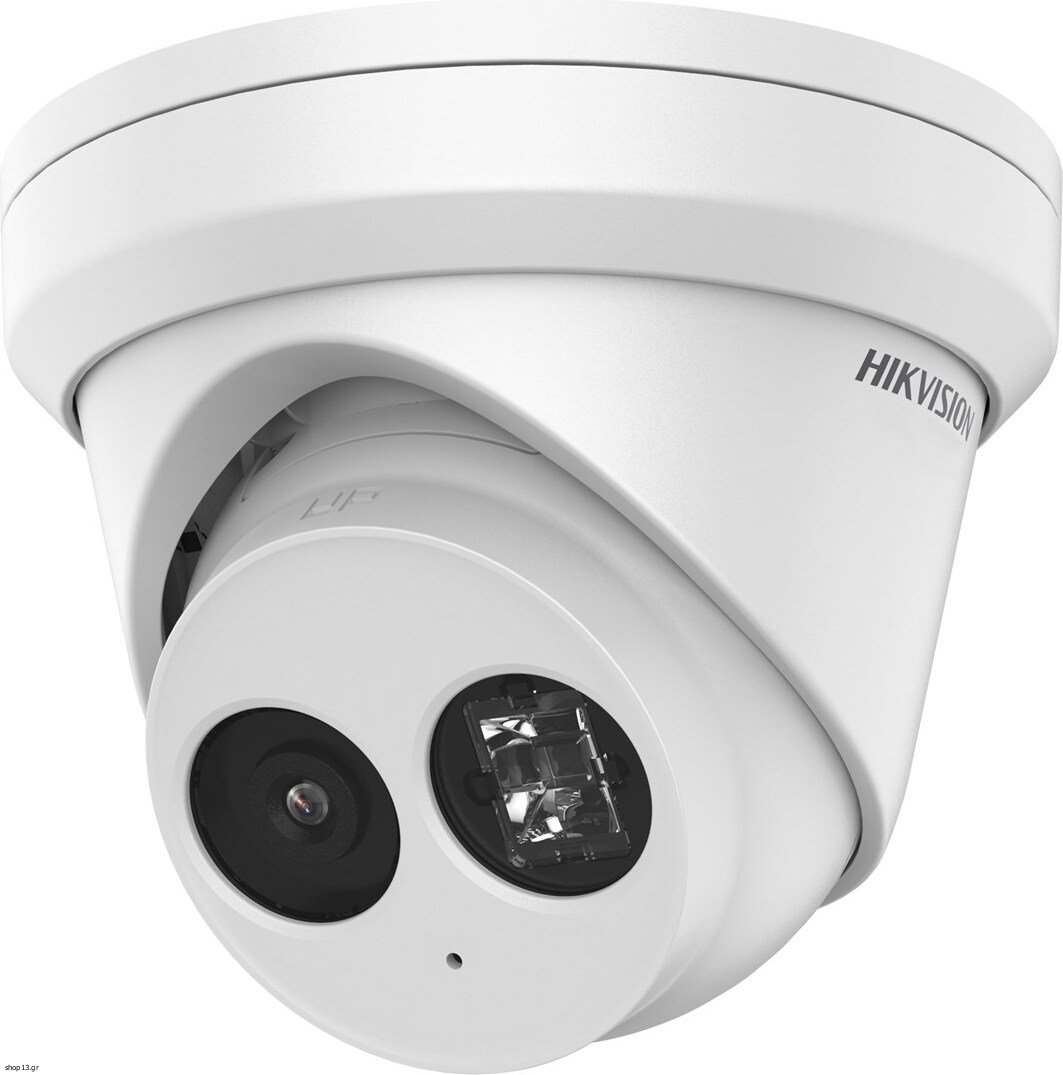

Hikvision - (DS-2CD2363G2-I)
[Κωδικός : 758179]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Technical details
Lens mount interface: M12
Design
Housing material: Metal
International Protection (IP) code: IP67
Product colour: White
Protection features: Water resistant
Form factor: Dome
Mounting type: Ceiling/wall
Power
Power consumption (max): 6 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 7.5 W
DC output voltage: 12
DC output current: 0.5 A
Security
Security algorithms: EAP-MD5, EAP-TLS, EAP-LEAP
Audit log: Yes
HTTPS encryption: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Password protection: Yes
Video motion detection: Yes
Privacy protection: Yes
Password reset via email: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes
Operational conditions
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Management features
Web-based management: Yes
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Weight & dimensions
Height: 95.9 mm
Weight: 600 g
Diameter: 12.7 cm
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Wi-Fi: No
Bluetooth: No
Live view: Yes
Number of users: 32 user(s)
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Performance
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Languages support: Multi
Number of languages: 33
Day/night mode: Yes
Dynamic range: 120 dB
Packaging data
Package height: 141 mm
Package weight: 909 g
Package depth: 150 mm
Package width: 150 mm
Packaging content
Number of cameras: 1
Audio
Built-in microphone: No
Storage
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Minimum illumination: 0 lx
Tilt angle range: 0 - 75°
Angle of rotation: 360°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, diagonal: 128°
Lens viewing angle, horizontal: 107°
Lens viewing angle, vertical: 57°
Other features
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Video
Supported graphics resolutions: 640 x 360, 1920 x 1080 (HD 1080), 3200 x 1800, 640 x 480 (VGA), 2688 x 1520, 1280 x 720 (HD 720)
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 16 Mbps
Highlight Compensation (HLC): Yes
Total megapixels: 6 MP
Maximum resolution: 3200 x 1800 pixels
Video compression formats: H.264, H.264+, M-JPEG, H.265+, H.265
Noise reduction: Yes
Image quality adjustment: Saturation, Sharpness, Contrast, Brightness
Noise reduction technology: 3D noise reduction
Frame rate: 30 fps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video recording: Yes
Video streaming: Yes
Night vision
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Infra-red wavelength: 850 nm
Lens system
Fixed focal length: 2.8 mm
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Sustainability
Compliance certificates: Low Voltage Directive (LVD), CB, UL, RoHS, CE
Warranty: Manufacturer warranty 36 months
Lens mount interface: M12
Design
Housing material: Metal
International Protection (IP) code: IP67
Product colour: White
Protection features: Water resistant
Form factor: Dome
Mounting type: Ceiling/wall
Power
Power consumption (max): 6 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 7.5 W
DC output voltage: 12
DC output current: 0.5 A
Security
Security algorithms: EAP-MD5, EAP-TLS, EAP-LEAP
Audit log: Yes
HTTPS encryption: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Password protection: Yes
Video motion detection: Yes
Privacy protection: Yes
Password reset via email: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes
Operational conditions
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Management features
Web-based management: Yes
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Weight & dimensions
Height: 95.9 mm
Weight: 600 g
Diameter: 12.7 cm
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Wi-Fi: No
Bluetooth: No
Live view: Yes
Number of users: 32 user(s)
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Performance
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Languages support: Multi
Number of languages: 33
Day/night mode: Yes
Dynamic range: 120 dB
Packaging data
Package height: 141 mm
Package weight: 909 g
Package depth: 150 mm
Package width: 150 mm
Packaging content
Number of cameras: 1
Audio
Built-in microphone: No
Storage
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Minimum illumination: 0 lx
Tilt angle range: 0 - 75°
Angle of rotation: 360°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, diagonal: 128°
Lens viewing angle, horizontal: 107°
Lens viewing angle, vertical: 57°
Other features
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Video
Supported graphics resolutions: 640 x 360, 1920 x 1080 (HD 1080), 3200 x 1800, 640 x 480 (VGA), 2688 x 1520, 1280 x 720 (HD 720)
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 16 Mbps
Highlight Compensation (HLC): Yes
Total megapixels: 6 MP
Maximum resolution: 3200 x 1800 pixels
Video compression formats: H.264, H.264+, M-JPEG, H.265+, H.265
Noise reduction: Yes
Image quality adjustment: Saturation, Sharpness, Contrast, Brightness
Noise reduction technology: 3D noise reduction
Frame rate: 30 fps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video recording: Yes
Video streaming: Yes
Night vision
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Infra-red wavelength: 850 nm
Lens system
Fixed focal length: 2.8 mm
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Sustainability
Compliance certificates: Low Voltage Directive (LVD), CB, UL, RoHS, CE
Warranty: Manufacturer warranty 36 months
