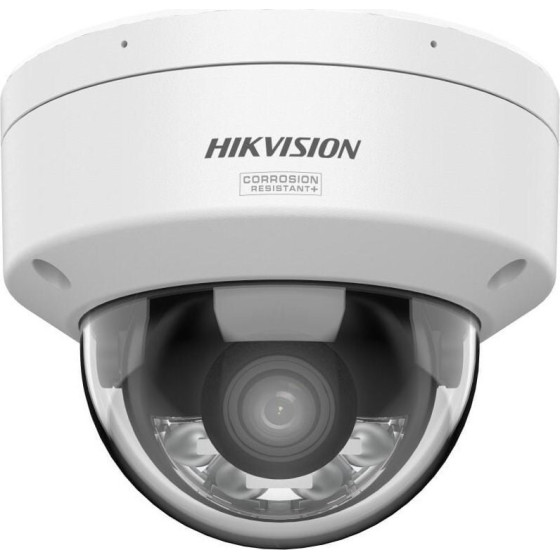

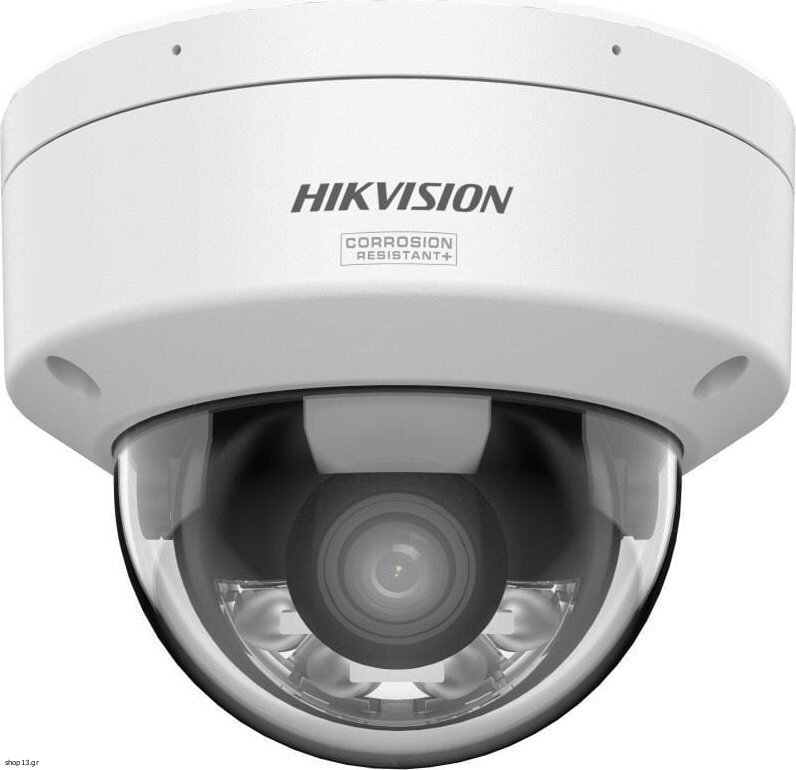

Hikvision DS-2CD2147G3-LIS2UY 2.8mm - (DS-2CD2147G3-LIS2UY 2.8mm PL)

Technical details
Sustainability certificates: CE, RoHS, Federal Communications Commission (FCC), REACH, CB, WEEE
Lens mount interface: M16

Design
Mounting type: Ceiling
Form factor: Dome
IK code: IK10
Housing material: Metal
International Protection (IP) code: IP67
Product colour: White
Protection features: Water resistant

Power
Power consumption (Power over Ethernet (PoE)): 9 W
DC output current: 0.6 A
DC output voltage: 12
Power consumption (max): 7.2 W
Power source type: DC, PoE

Security
Anti-flicker: Yes
Mirror: Yes
Heartbeat: Yes
Privacy protection: Yes
Password protection: Yes
Password reset via email: Yes
IP address filtering: Yes
Pixel counter: Yes
HTTPS encryption: Yes
Video motion detection: Yes
Automatic Network Replenishment (ANR): Yes
Digest authentication: Yes
Audit log: Yes
Flash log: Yes

Operational conditions
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Web-based management: Yes
Reset button: Yes

Weight & dimensions
Package height: 117 mm
Diameter: 12.1 cm
Package width: 234 mm
Height: 97.6 mm
Weight: 600 g
Package depth: 120 mm

Network
Live view: Yes
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Number of users: 32 user(s)
Bluetooth: No
Ethernet interface type: Fast Ethernet
Quality of Service (QoS) support: Yes
Wi-Fi: No
Ethernet LAN: Yes
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central

Performance
Number of languages: 33
Dynamic range: 130 dB
Languages support: Multi
Placement supported: External / Internal
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Connectivity technology: Wired

Packaging content
Number of cameras: 1

Audio
Number of microphones: 2
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB

Storage
Maximum memory card size: 512 GB
Card reader integrated: Yes
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Built-in HDD: No

Ports & interfaces
Line-out: Yes
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1

Camera
Camera shutter speed: 1/100000 s
Tilt angle range: 0 - 75°
Pan range: 0 - 355°
Angle of rotation: 355°
Minimum illumination: 0.0001 lx

Image sensor
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes

Video
Image quality adjustment: Saturation, Contrast, Sharpness, Brightness
Privacy masking: Yes
Noise reduction technology: 3D noise reduction
Video compression formats: H.265, H.264+, H.265+, H.264, M-JPEG
Video streaming: Yes
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 2688 x 1520, 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720)
Total megapixels: 4 MP
Frame rate: 30 fps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Maximum resolution: 2688 x 1520 pixels
Bit rate: 32 Kbps - 8 Mbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Night vision
Night vision: Yes

Lens system
Number of lenses: 1
Maximum aperture number: 1
Fixed focal length: 2.8 mm
Recognize distance: 12 m
Observe distance: 24 m
Detect distance: 61 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 24 months
