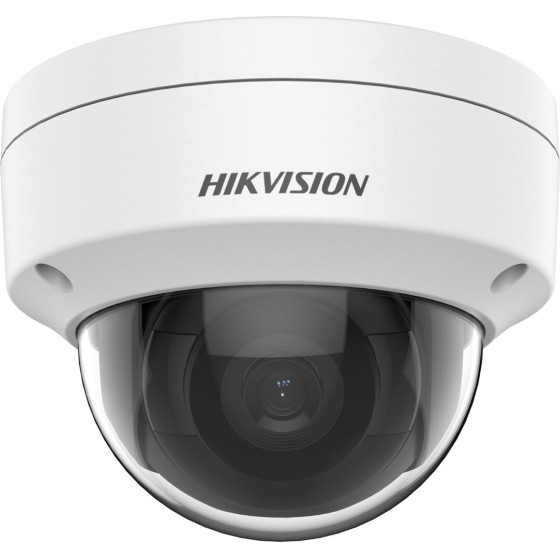

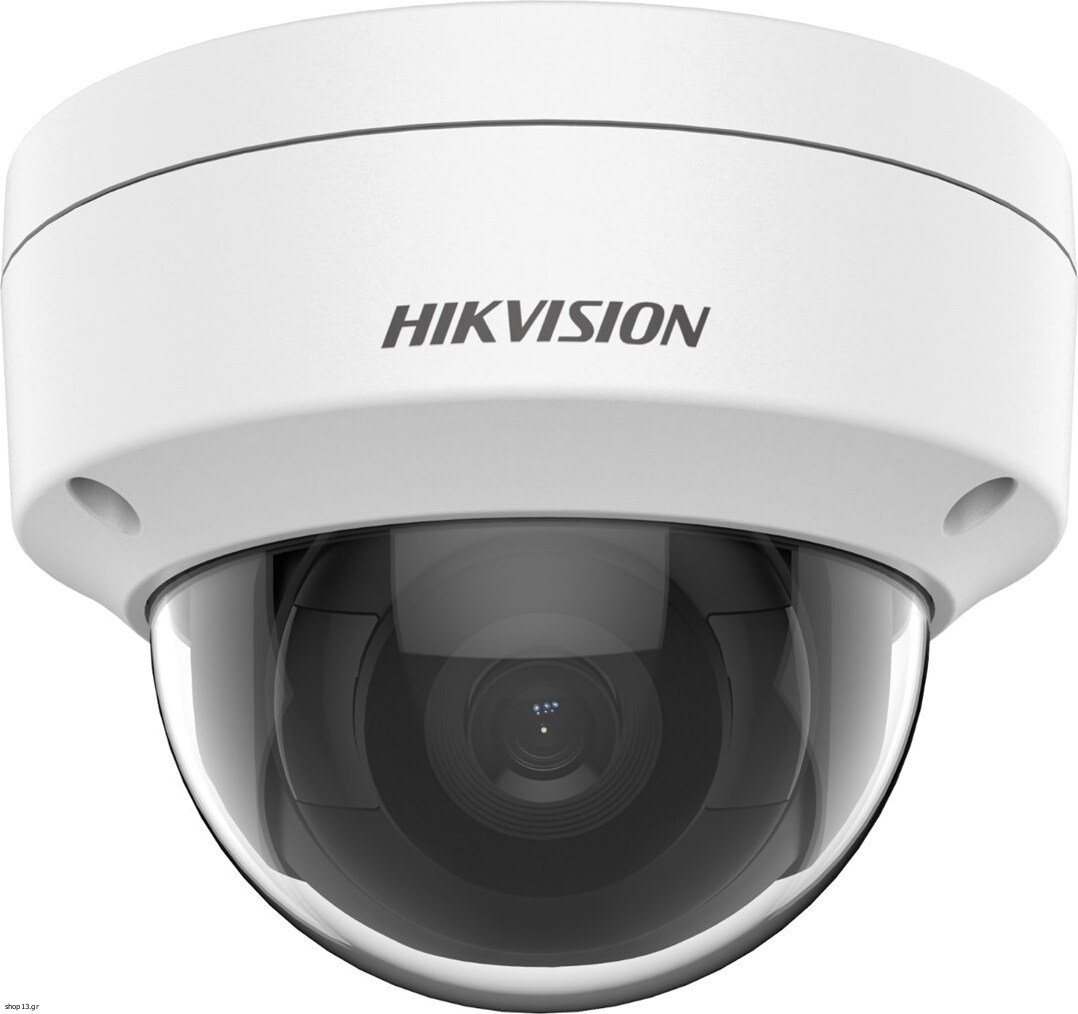

Hikvision DS-2CD2143G2-Is In-Ear Outdoor Ip Security Camera 2688 x 1520 Px Ceiling / Wall - (DS-2CD2143G2-IS(2.8mm))

Technical details
Sustainability certificates: RoHS, REACH

Design
Mounting type: Ceiling/wall
Housing material: Aluminium
Form factor: Dome
IK code: IK10
Product colour: White
International Protection (IP) code: IP65

Power
DC output current: 0.4 A
Power consumption (max): 5 W
DC output voltage: 12
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 6.5 W

Security
Anti-flicker: Yes
Password protection: Yes
IP address filtering: Yes
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
HTTPS encryption: Yes
Mirror: Yes
Heartbeat: Yes

Operational conditions
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Reset button: Yes
Web-based management: Yes
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection

Weight & dimensions
Diameter: 11.1 cm
Package height: 108 mm
Weight: 530 g
Package weight: 720 g
Height: 84.7 mm
Package depth: 134 mm
Package width: 134 mm

Network
Networking standards: IEEE 802.1x, IEEE 802.3af
Ethernet interface type: Fast Ethernet
Bluetooth: No
Number of users: 32 user(s)
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Wi-Fi: No

Performance
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Placement supported: Outdoor
Type: IP security camera
Connectivity technology: Wired
Infrared (IR) cut-off filter: Yes
Number of languages: 33

Packaging content
Number of cameras: 1

Audio
Audio formats supported: AAC, MP3, PCM
Audio input channels: 1 channels
Voice codecs: G.726, G.722.1, MP2L2, G.711alaw, G.711ulaw
Audio output channels: 1 channels
Sample rate: 48 kHz

Storage
Built-in HDD: No
Maximum memory card size: 256 GB
Card reader integrated: Yes
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, diagonal: 122°
Lens viewing angle, horizontal: 103°
Angle of rotation: 355°
Lens viewing angle, vertical: 55°
Pan range: 0 - 355°
Camera pan control: Yes
Camera tilt control: Yes

Image sensor
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 3 mm (1 / 3")

Video
Video compression formats: H.264+, H.264, H.265+, H.265, M-JPEG
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Image quality adjustment: Brightness, Saturation, Sharpness, Contrast
Noise reduction technology: 3D noise reduction
Back Light Compensation (BLC): Yes
Privacy masking: Yes
Noise reduction: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 360, 640 x 480 (VGA), 2688 x 1520, 1920 x 1080 (HD 1080)
Video streaming: Yes
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Bit rate: 32 Kbps - 8 Mbps
Maximum resolution: 2688 x 1520 pixels
Frame rate: 30 fps

Night vision
Night vision: Yes
LED type: IR
Night vision distance: 30 m
Infra-red wavelength: 850 nm

Lens system
Maximum aperture number: 1.6
Fixed focal length: 2.8 mm
Number of lenses: 1

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
