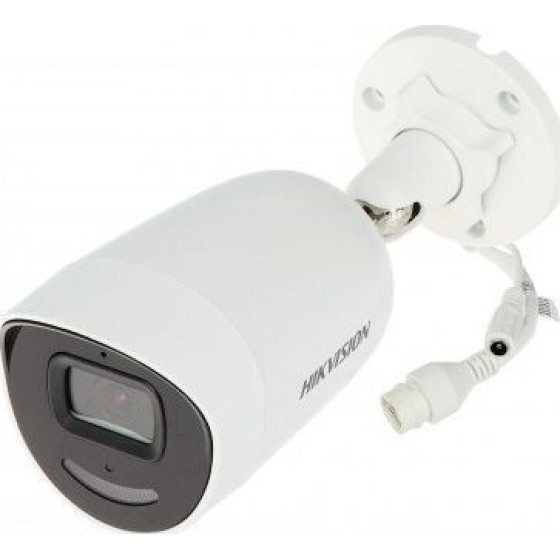

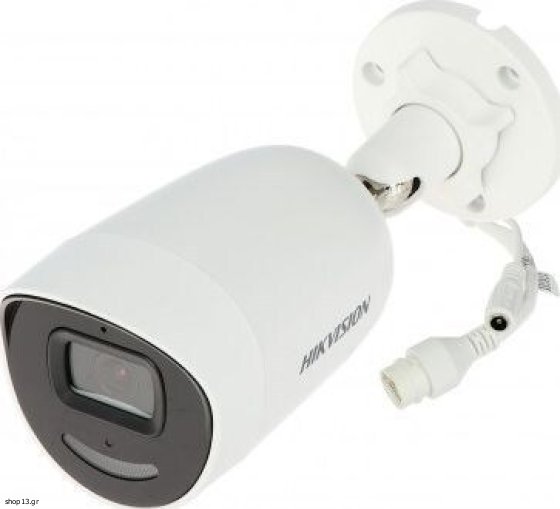

Hikvision DS-2CD2046G2-IU/SL IP CAMERA (2.8 mm) (C) - (DS-2CD2046G2-IU/SL (2.8mm) (C))

Design
International Protection (IP) code: IP67
Housing material: Plastic, Metal
Mounting type: Ceiling/wall
Product colour: White

Power
Power consumption (max): 8 W
Power source type: DC, PoE

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C

Weight & dimensions
Width: 72.9 mm
Depth: 191 mm
Weight: 590 g

Network
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Live view: Yes
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
User access level: Administrator, Operator, User

Performance
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Built-in light: Yes
Type: IP security camera
Dynamic range: 120 dB
Placement supported: Indoor & outdoor

Packaging data
Package width: 216 mm
Package depth: 121 mm
Package weight: 481 g
Package height: 118 mm

Packaging content
Manual: Yes
Number of cameras: 1

Storage
SD memory card reader: Yes
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Minimum illumination: 0 lx
Camera tilt control: Yes
Lens viewing angle, vertical: 90°
White balance: Manual, Auto
Camera pan control: Yes
Angle of rotation: 360°

Video
Frame rate: 25 fps
Video recording: Yes
Image quality adjustment: Sharpness, Contrast, Brightness
Noise reduction: Yes
Total megapixels: 4 MP

Night vision
LED type: IR/White
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Number of lenses: 1
Detect distance: 40 m


Warranty: Manufacturer warranty 36 months
