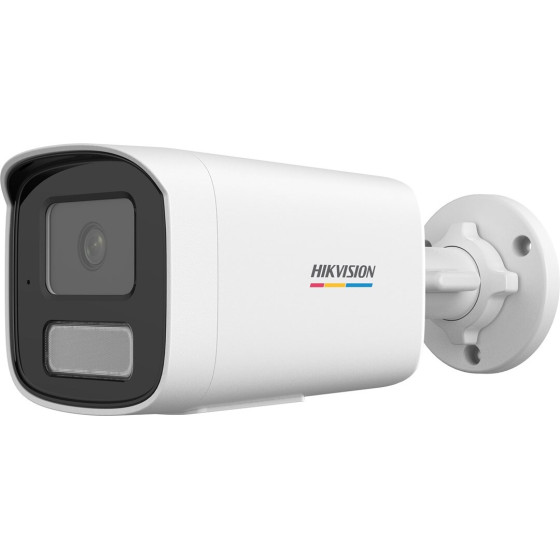

Hikvision DS-2CD1T47G2H-Liu 2.8mm Ip Camera - (DS-2CD1T47G2H-Liu 2.8mm PL)

Design
Mounting type: Wall
Product colour: White
Form factor: Bullet
International Protection (IP) code: IP67

Power
Power consumption (Power over Ethernet (PoE)): 8.3 W
DC output voltage: 12
Power consumption (typical): 6.8 W
Power source type: DC, PoE
Power consumption (max): 8.3 W

Security
Audit log: Yes
Automatic Network Replenishment (ANR): Yes
Anti-flicker: Yes
Heartbeat: Yes
Network access storage (NAS): Yes
Mirror: Yes
Video motion detection: Yes
Human and vehicle targets classification: Yes
Password reset via email: Yes
Digest authentication: Yes

Operational conditions
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%

Management features
Remotely operated: Yes
Management software: iVMS-4200,Hik-Connect,Hik-Central
Cloud-managed: Yes

Weight & dimensions
Width: 81 mm
Height: 202 mm
Depth: 83.7 mm
Weight: 550 g

Network
Live view: Yes
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Number of users: 32 user(s)
Bluetooth: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet

Performance
Day/night mode: Yes
Placement supported: Indoor & outdoor
Infrared (IR) cut-off filter: Yes
Languages support: Polish
Type: IP security camera
Built-in light: Yes
Connectivity technology: Wired
Number of languages: 1
Dynamic range: 120 dB

Packaging content
Number of cameras: 1

Audio
Audio formats supported: G.726, G.722.1, PCM, MP2L2, AAC-LC, G.711
Number of microphones: 1

Storage
Built-in HDD: No
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Camera shutter speed: 1 - 1/100000 s
Lens viewing angle, horizontal: 115°
Lens viewing angle, vertical: 60°
Lens viewing angle, diagonal: 143°
Number of Privacy masking areas: 4
Angle of rotation: 355°
Minimum illumination: 0.001 lx
Tilt angle range: 0 - 180°

Image sensor
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 1.3 mm (1 / 1.3")

Video
Video streaming: Yes
Video formats supported: H.265, H.264+, MJPEG, H.265+, H.264
Noise reduction technology: 3D noise reduction
Back Light Compensation (BLC): Yes
Digital Wide Dynamic Range (DWDR): Yes
Video recording: Yes
Video compression formats: H.265+, H.264, H.265, H.264+
Noise reduction: Yes
Image stabilizer: Yes
Frame rate: 25 fps
Highlight Compensation (HLC): Yes
Smart IR: Yes
Total megapixels: 4 MP
Supported graphics resolutions: 640 x 360, 1280 x 720, 2560 x 1440, 1920 x 1080, 640 x 480 (VGA)
Maximum resolution: 2560 x 1440 pixels

Night vision
Night vision distance: 50 m
Night vision: Yes
LED type: IR/White
Infra-red wavelength: 850 nm

Lens system
Detect distance: 64 m
Identify distance: 6 m
Number of lenses: 1
Observe distance: 25 m
Maximum aperture number: 1
Fixed focal length: 2.8 mm
Recognize distance: 12 m
Fixed focus: Yes


Warranty: Manufacturer warranty 24 months
