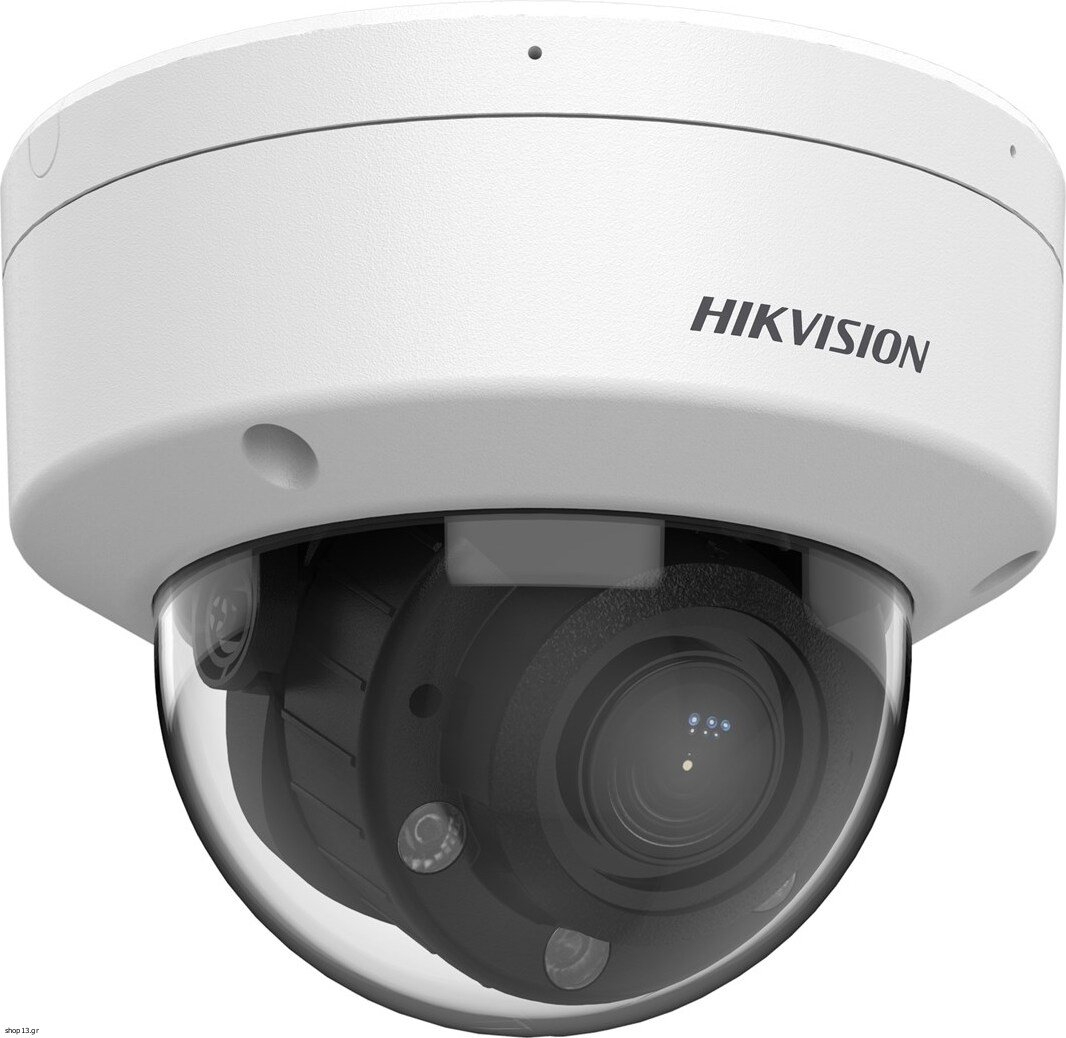

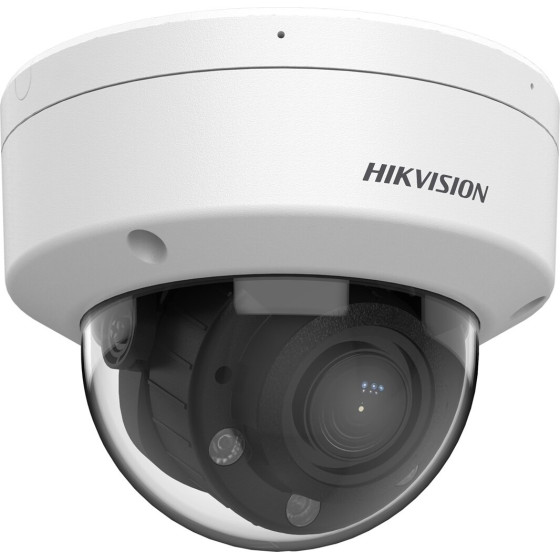

Hikvision DS-2CD1763G2-LIZU 2.8-12mm - (DS-2CD1763G2-LIZU 2.8-12mm PL)

Design
Degree of protection IK: IK08
International Protection (IP) code: IP67
Mounting type: Ceiling
Housing material: Metal
Product colour: White
Form factor: Dome

Power
Power consumption (Power over Ethernet (PoE)): 12 W
DC output voltage: 12V
Power source type: DC, PoE

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 60 °C

Management features
Web browser: Yes
Web-based management: Yes

Weight & dimensions
Height: 97.6 mm

Network
Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
Wi-Fi: No
4G LTE: No
Networking standards: IEEE 802.3af
Bluetooth: No

Performance
Network interface : RJ-45 10/100
Placement supported: External / Internal
Signal-to-Noise Ratio (SNR): 52 dB
Connectivity technology: Wired
Type: IP security camera

Packaging content
Number of cameras: 1

Audio
Audio codecs: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Built-in microphone: Yes

Ports & interfaces
Number of memory card slots: 1
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Maximum memory card size: 512 GB
Ethernet LAN (RJ-45) ports: 1

Camera
Motion detection : Yes
Lens viewing angle, vertical: 57 - 20°
People detection : Yes
Horizontal rotation angle: 0 - 355°
Vertical rotation angle: 0 - 70°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor
Progressive scan: Yes
Sensor type: 1/2.4" Progressive Scan CMOS

Video
Frame rate: 25 / 30 fps
Video compression formats: M-JPEG, H.265+, H.264, H.264+, H.265
Total megapixels: 6 MP
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Supported graphics resolutions: 2592 x 1944, 704 x 480, 2688 x 1520, 1280 x 720, 640 x 480 (VGA), 3072 x 2048, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 1728, 352 x 288, 2560 x 1440, 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960
Maximum resolution: 3200 x 1800 pixels

Night vision
Night vision distance: 30 m
Night vision: Yes

Lens system
Identify distance (wide): 6.8 m
Focal length range: 2.8 - 12 mm
Observe distance (wide): 27 m
Lens type: Varifocal
Recognize distance (wide): 13.6 m
Detect distance (wide): 68 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 24 months
