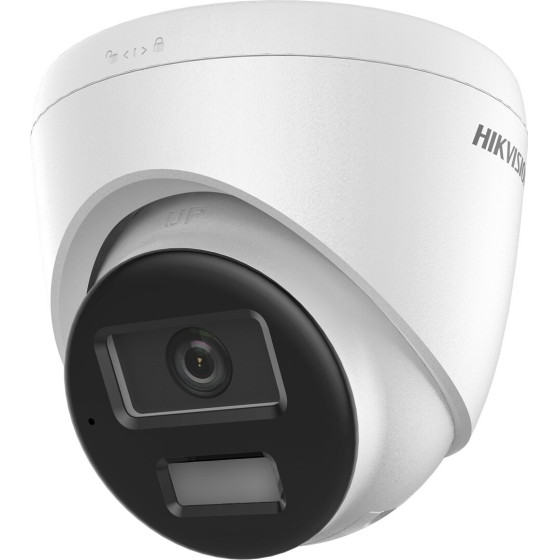

Hikvision DS-2CD1343G2-LIUF/Sl 2.8MM Ip Camera - (DS-2CD1343G2- LIUF/Sl 2.8mm PL)
[Κωδικός : 840881]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Technical details
Sustainability certificates: REACH, CE
Design
International Protection (IP) code: IP67
Form factor: Dome
Product colour: White
Housing material: Plastic, Metal
Power
Power over Ethernet (PoE): Yes
Power management: DC 12 V
DC output current: 0.66 A
PoE standard: IEEE 802.3af
Security
Password protection: Yes
Video motion detection: Yes
Heartbeat: Yes
Mirror: Yes
Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
Height: 102.7 mm
Package height: 141 mm
Package depth: 150 mm
Package weight: 560 g
Package width: 150 mm
Weight: 340 g
Diameter: 11 cm
Network
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Number of users: 32 user(s)
Performance
Type: IP security camera
Wide Dynamic Range (WDR): 120 dB
Connectivity technology: Wired
Day/night mode: Yes
Languages support: Polish
Placement supported: Outdoor
Number of languages: 1
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Sample rate: 8 kHz / 16 kHz
Storage
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, vertical: 54°
Pan range: 0 - 360°
Angle of rotation: 360°
Lens viewing angle, diagonal: 114°
Lens viewing angle, horizontal: 98°
Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Progressive scan: Yes
Video
Bit rate: 32 Kbps - 8 Mbps
Maximum resolution: 2560 x 1440 pixels
Video compression formats: M-JPEG, H.264, H.265+, H.265, H.264+
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Night vision
Night vision distance: 30 m
Minimum illumination: 0.005 lx
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR/White
Lens system
Maximum aperture number: 1.6
Recognize distance (wide): 12 m
Detect distance (wide): 63 m
Identify distance (wide): 6 m
Observe distance (wide): 25 m
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Warranty: Manufacturer warranty 36 months
Sustainability certificates: REACH, CE
Design
International Protection (IP) code: IP67
Form factor: Dome
Product colour: White
Housing material: Plastic, Metal
Power
Power over Ethernet (PoE): Yes
Power management: DC 12 V
DC output current: 0.66 A
PoE standard: IEEE 802.3af
Security
Password protection: Yes
Video motion detection: Yes
Heartbeat: Yes
Mirror: Yes
Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
Height: 102.7 mm
Package height: 141 mm
Package depth: 150 mm
Package weight: 560 g
Package width: 150 mm
Weight: 340 g
Diameter: 11 cm
Network
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Number of users: 32 user(s)
Performance
Type: IP security camera
Wide Dynamic Range (WDR): 120 dB
Connectivity technology: Wired
Day/night mode: Yes
Languages support: Polish
Placement supported: Outdoor
Number of languages: 1
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Sample rate: 8 kHz / 16 kHz
Storage
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, vertical: 54°
Pan range: 0 - 360°
Angle of rotation: 360°
Lens viewing angle, diagonal: 114°
Lens viewing angle, horizontal: 98°
Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Progressive scan: Yes
Video
Bit rate: 32 Kbps - 8 Mbps
Maximum resolution: 2560 x 1440 pixels
Video compression formats: M-JPEG, H.264, H.265+, H.265, H.264+
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Night vision
Night vision distance: 30 m
Minimum illumination: 0.005 lx
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR/White
Lens system
Maximum aperture number: 1.6
Recognize distance (wide): 12 m
Detect distance (wide): 63 m
Identify distance (wide): 6 m
Observe distance (wide): 25 m
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Warranty: Manufacturer warranty 36 months
Χαρακτηριστικά
Μοντέλο
Hikvision DS-2CD1343G2-LIUF/SL 2.8MM IP CAMERA - (DS-2CD1343G2- LIUF/SL 2.8mm PL)
Σύνολο: 588.61€
