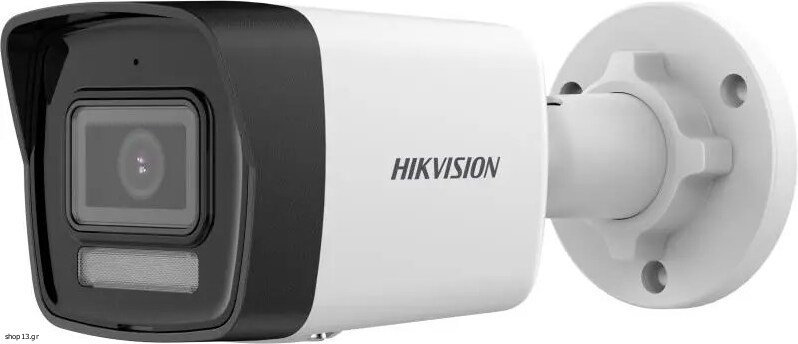

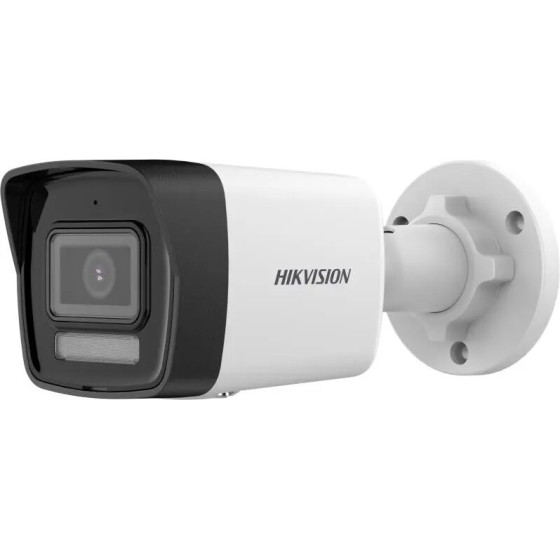

Hikvision DS-2CD1063G2-LIU(2.8MM)PL security camera Bullet IP security camera Indoor & outdoor 3200 x 1800 pixels Ceiling/wall - (DS-2CD1063G2-LIU(2.8mm) PL)

Design
Product colour: White
Mounting type: Ceiling/wall
International Protection (IP) code: IP67
Housing material: Plastic, Metal
Form factor: Bullet
Protection features: Waterproof

Power
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 6.5 W
DC output current: 0.41 A
Power consumption (max): 5 W
DC output voltage: 12

Security
Video motion detection: Yes
Privacy protection: Yes
Digital watermark: Yes
Mirror: Yes
Password protection: Yes
Heartbeat: Yes
Password reset via email: Yes
Digest authentication: Yes
Audit log: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Web-based management: Yes

Weight & dimensions
Weight: 285 g
Width: 66 mm
Length: 170.8 mm
Height: 69.1 mm

Network
Bluetooth: No
Live view: Yes
Number of users: 32 user(s)
Number of simultaneous live view channels: 6 channels
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Client interoperability: iVMS-4200, Hik-Connect
Ethernet LAN: Yes
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User access level: Administrator, Operator, User

Performance
Built-in light: Yes
Connectivity technology: Wired
Languages support: Polish
Number of languages: 1
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Type: IP security camera

Packaging data
Package height: 118 mm
Package depth: 121 mm
Package width: 216 mm
Package weight: 481 g

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Sample rates: 8 - 16 kHz
Audio formats supported: G.711, G.726, G.722.1, AAC-LC, PCM, MP2L2
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 16 - 160 Kbit/s

Storage
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 90°
Lens viewing angle, horizontal: 105°
Lens viewing angle, diagonal: 127°
Minimum illumination: 0 lx
Pan range: 0 - 360°
Lens viewing angle, vertical: 55°
Camera shutter speed: 1 - 1/100000 s
Angle of rotation: 360°
Number of Privacy masking areas: 4

Image sensor
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")

Video
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 360, 640 x 480 (VGA), 2688 x 1520, 3200 x 1800
Maximum resolution: 3200 x 1800 pixels
Video streaming: Yes
Image quality adjustment: Contrast, Brightness, Sharpness, Saturation
Privacy masking: Yes
Video compression formats: H.264, H.265+, H.264+, H.265, M-JPEG
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 16 Mbps
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Total megapixels: 6 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Night vision
Infra-red wavelength: 850 nm
Night vision: Yes
Night vision distance: 30 m

Lens system
Number of lenses: 1
Detect distance: 76 m
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Recognize distance: 15 m
Fixed focus: Yes
Observe distance: 30 m
Identify distance: 7 m

Sustainability
Compliance certificates: Low Voltage Directive (LVD), CB, WEEE, RCM, REACH, RoHS, CE
Sustainability compliance: Yes


Warranty: Manufacturer warranty 24 months
