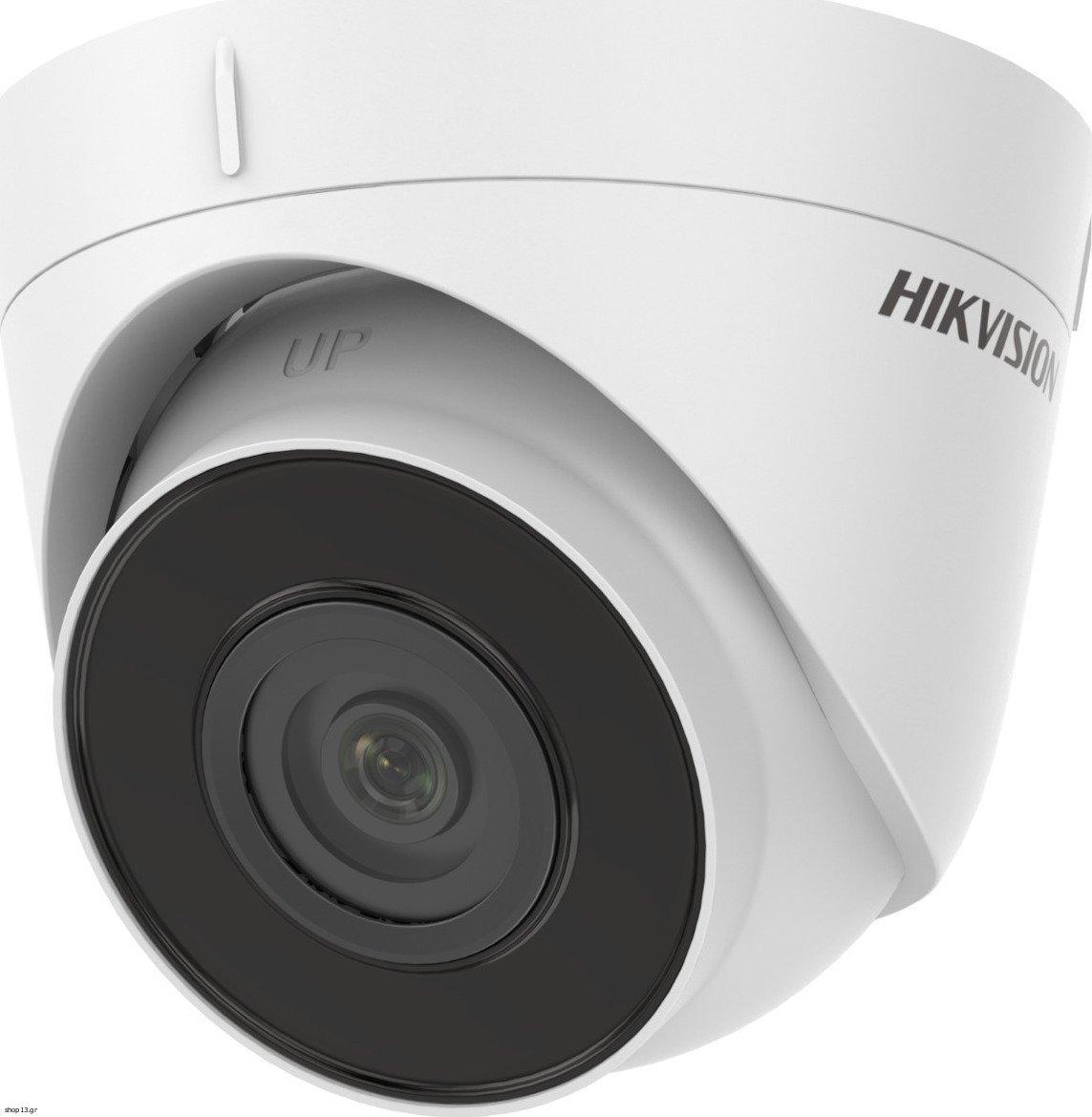

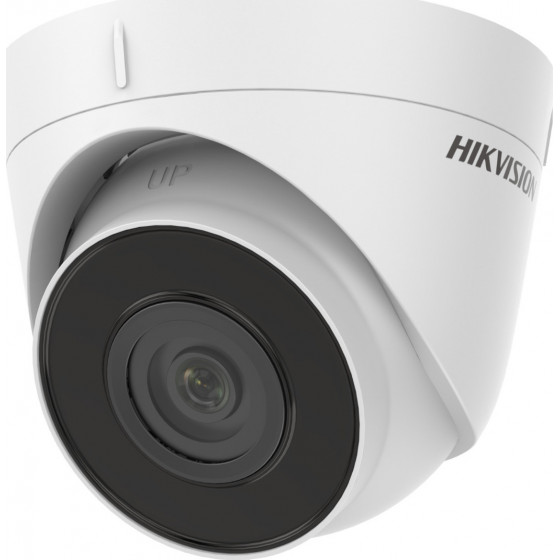

Hikvision Dome Ip 2.0MP 2.8mm IR30 - (DS-2CD1321-I)

HIKVISION DS-2CD1321-I Dome IP 2.0MP 2.8mm IR30




Δικτυακή κάμερα Dome (τύπου turret) 2MP, εξωτερικού χώρου, 1/2.7’’, σταθερός ευρυγώνιος φακός 2.8mm (γωνία θέασης 114.8°), υπέρυθρος φωτισμός (IR) εμβέλειας ως 30 m, ευαισθησία 0.01 Lux @ F1.2 (AGC On) / 0 Lux με IR, 3D DNR, DWDR, BLC, Η.264+, βαθμός στεγανότητας IP67, τροφοδοσία PoE ή 12 VDC, κατανάλωση 3.5W / 4.5W (PoE), (διάμετρος x ύψος) 110x93 mm.










Sensor

1/2.7" Progressive Scan CMOS





Minimum Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)





Shutter Speed

1/3 s to 1/100,000 s





Lens

2.8mm Focal length





Adjustment Range

Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°





Day& Night

IR cut filter





Wide Dynamic Range

Digital WDR





Digital Noise Reduction

3D DNR





Video Compression

Main stream: H.264+, H264 Sub stream: H.264/MJPEG





Video bit Rate

32 Kbps to 8 Mbps





Network Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, IGMP, UDP, QoS





Power Supply

12VDC/PoE





Working Temperature

-30 °C to +60 °C (-22 °F to +140 °F)





Ingress Protection IP

IP67





Power Consumption

12 VDC,0.3 A, Max. 3.5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W





IR LED Range

Up to 30 m





Dimensions (W x D x H)

Φ 110 mm x 93.2 mm (Φ 4.3" x 3.7")





Weight

approx. 360 g (0.8 lb.)





Anti-Corrosion

No





Power Supply

DC12V - POΕ





Bracket 1

DS-1275ZJ





Bracket 2

DS-1276ZJ
