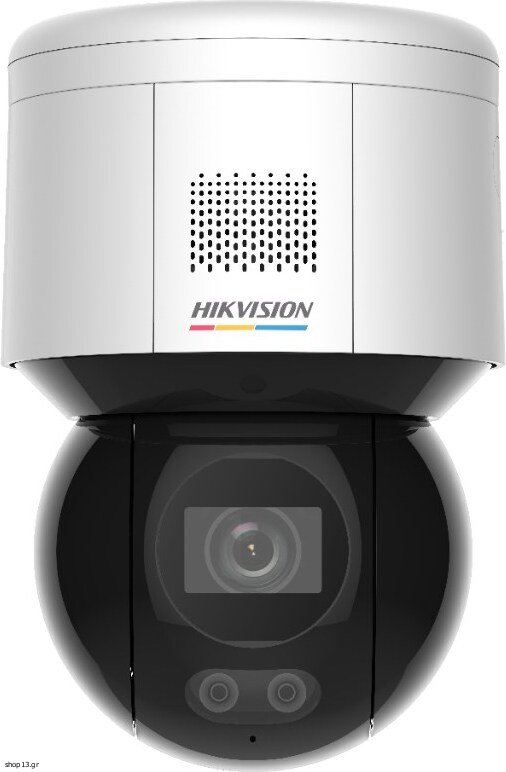

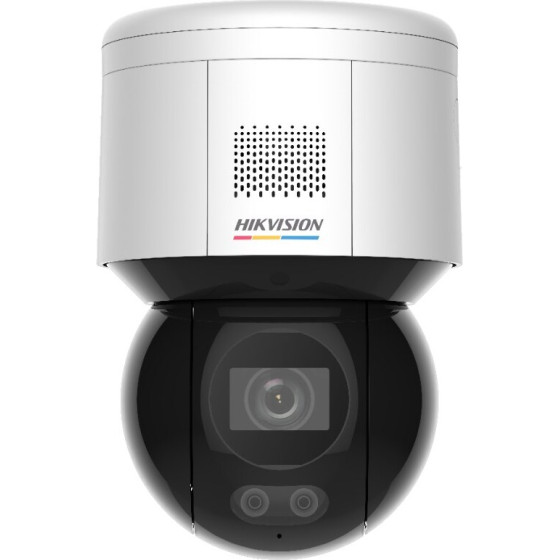

Hikvision Digital Technology - (DS-2DE3A400BW-DE(T5))

Design
Product colour: Black, White
Mounting type: Ceiling
Form factor: Dome
International Protection (IP) code: IP66

Power
Power consumption: 60 mA
Power consumption (max): 16 W
DC output voltage: 12

Security
Security algorithms: HTTPS
IP address filtering: Yes
Mirror: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Digital watermark: Yes
Password protection: Yes
HTTPS encryption: Yes
Active tampering alarm: Yes
Video motion detection: Yes

Operational conditions
Operating temperature (T-T): -30 - 65 °C
Operating relative humidity (H-H): 0 - 90%

Management features
Reset button: Yes
Web browser: Yes
Behavior analysis: Line crossing detection, Region entrance detection, Region exiting detection

Weight & dimensions
Weight: 1.12 kg
Width: 120 mm
Depth: 179.3 mm
Height: 182 mm
Diameter: 12 cm

Network
Ethernet LAN: Yes
User access level: Administrator, Operator, User
Wi-Fi: No
Live view: Yes
Number of users: 32 user(s)
Number of simultaneous live view channels: 20 channels

Performance
Built-in light: Yes
Connectivity technology: Wired
Languages support: Estonian, Portuguese, Slovenian, Lithuanian, Turkish, Thai, Italian, Traditional Chinese, Finnish, Korean, Romanian, SER, Greek, Dutch, Czech, Spanish, Hungarian, Swedish, English, French, Vietnamese, LAT, Slovak, German, Polish, Japanese, Russian, Norwegian, Danish
Placement supported: Indoor & outdoor
Number of languages: 32
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Day/night mode: Yes
Dynamic range: 120 dB

Packaging content
Number of cameras: 1

Audio
Audio formats supported: G.711 A-law, G.711 μ-law, MP2L2, G.722.1, PCM, AAC, G.726
Signal-to-Noise Ratio (SNR): 52 dB

Storage
Built-in HDD: No
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Card reader integrated: Yes
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1

Camera
Tilt angle range: 0 - 90°
Tilt preset speed: 50 °/sec
Tilt speed: 50 °/sec
Camera shutter speed: 1/1 - 1/30000 s
Lens viewing angle, vertical: 46.5°
Pan range: 0 - 350°
Minimum illumination: 0.0005 lx
Pan preset speed: 60 °/sec
Pan speed: 60 °/sec
Lens viewing angle, diagonal: 105°

Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Number of sensors: 1

Video
Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 480 (VGA), 704 x 576, 1280 x 960, 352 x 288, 1920 x 1080 (HD 1080), 704 x 480, 352 x 240, 2560 x 1440
Maximum resolution: 2560 x 1440 pixels
Image quality adjustment: Sharpness, Brightness, Saturation, Contrast
Noise reduction: Yes
Total megapixels: 4 MP
Region of Interest (ROI) encoding: Yes
Video compression formats: H.265+, H.265, H.264+, H.264, M-JPEG
Highlight Compensation (HLC): Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes

Lens system
Digital zoom: 16x
Maximum aperture number: 1
Focal length range: 4 mm

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 24 months
