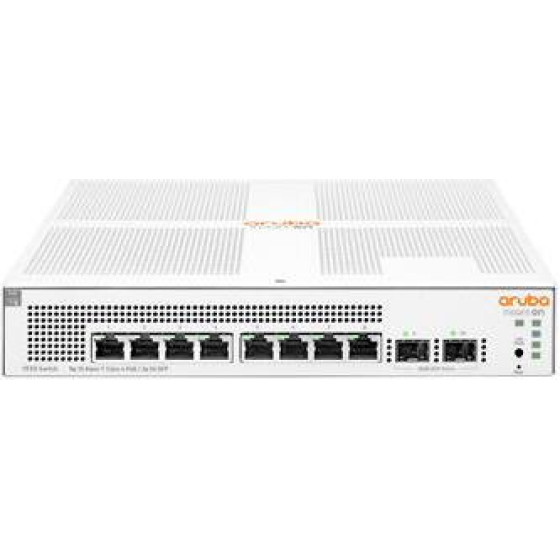

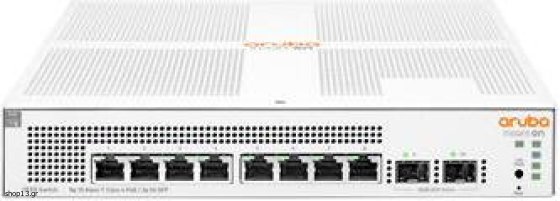

Hewlett Packard Enterprise Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) White 1U Power over Ethernet (PoE) - (JL681A)

Hewlett Packard Enterprise Aruba Instant On 1930. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Warranty 1 Years
Operating relative humidity (H-H) 15 - 95%
Power over Ethernet (PoE) No
Basic switching RJ-45 Ethernet ports quantity 8
Processor model ARM Cortex-A9
Loop protection Yes
AC input voltage 100 - 240 V
Throughput 14.88 Mpps
Flash memory 256 MB
Built-in processor Yes
Height 43.9 mm
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Stackable Yes
Number of VLANs 4093
Width 254 mm
Packet buffer memory 1.5 MB
Latency (10-100 Mbps) 5.2 s
Full duplex Yes
Web-based management Yes
Power source AC
ARP inspection Yes
SFP module slots quantity 2
Routing entries 32
Switching capacity 20 Gbit/s
DHCP features DHCP client -DHCP snooping
Access Control List (ACL) Yes
Input current 0.2 A
Auto MDI/MDI-X Yes
Storage relative humidity (H-H) 15 - 95%
BPDU filtering/protection Yes
System event log Yes
Product colour White
Port mirroring Yes
Internal memory 512 MB
MAC address table 8000 voci
Storage temperature (T-T) -40 - 70 C
Power supply included Yes
Spanning tree protocol Yes
Rack mounting Yes
Quality of Service (QoS) support Yes
SSH/SSL support Yes
Auto-sensing Yes
Active link detection Yes
10G support No
Rate limiting Yes
Memory type SDRAM / Flash
Weight 2.11 kg
Latency (1 Gbps) 3 s
Depth 254 mm
Copper ethernet cabling technology 10BASE-T -100BASE-TX -1000BASE-T
Combo SFP ports quantity 2
Total Power over Ethernet (PoE) budget 124 W
Link aggregation Yes
Networking standards IEEE 802.1Q -IEEE 802.1p -IEEE 802.1x -IEEE 802.3 -IEEE 802.3ab -IEEE 802.3u -IEEE 802.3x
IP routing Yes
AC input frequency 50 - 60 Hz
IGMP snooping Yes
Power consumption (max) 150.2 W
VLAN support Yes
Flow control support Yes
Switch type Managed
Operating temperature (T-T) 0 - 40 C
Multicast support Yes
Form factor 1U
Switch layer L2+
Processor frequency 800 MHz
Jumbo frames support Yes
