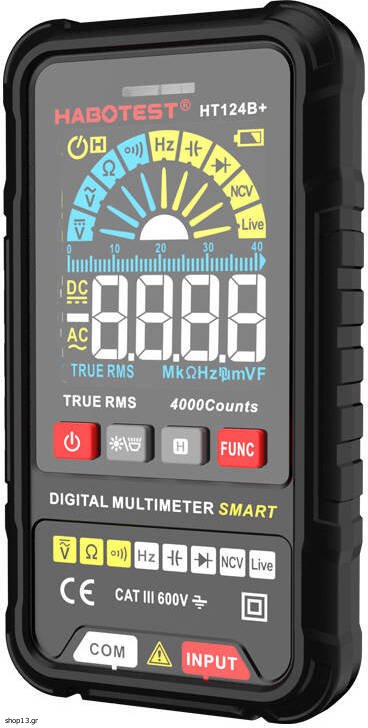

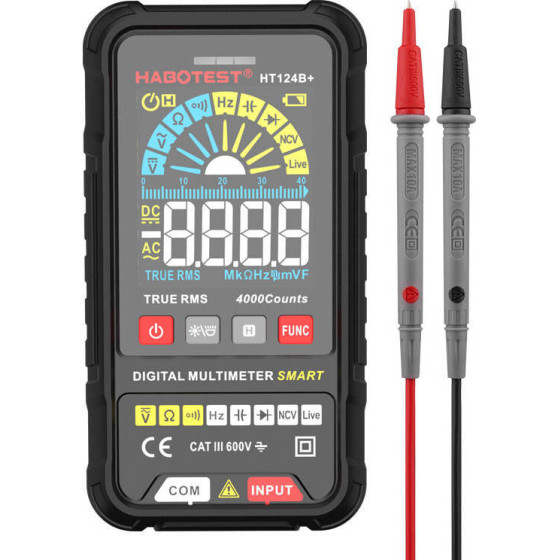

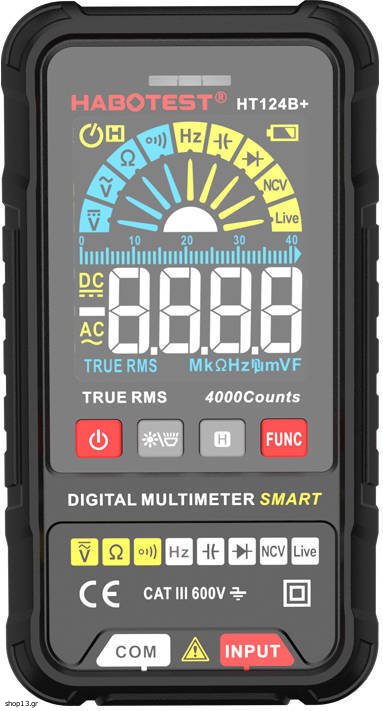

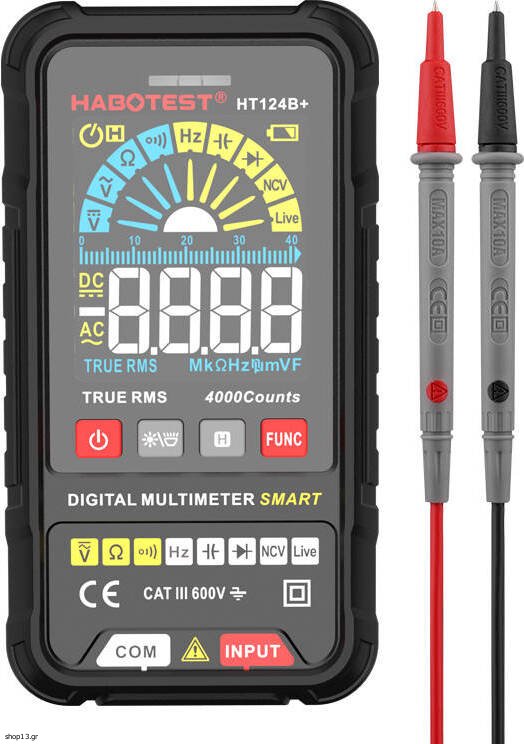

Habotest HT124B+ digital universal multimeterHabotest HT124B+ digital multimeter is a multifunctional device that will prove useful during electrical work. The product allows you to measure voltage, resistance, capacitance and many other parameters. The multimeter has an easy-to-read display that allows you to conveniently read the measurement results, plus it is equipped with a flashlight and practical buttons.
Many useful functionsHabotest HT124B+ digital universal multimeter is a handy device that surprises with the enormity of its capabilities. It allows to measure with high precision AC and DC voltage, resistance, continuity or capacitance, among others. In addition, it offers a Live Test function, enables diode testing, non-contact voltage detection (NCV) and much more. Importantly, the multimeter has practical buttons with which you can efficiently select a function.
Well designedThanks to its small size (130 x 70 x 23 mm), the device fits well in the hand and provides high comfort. It is powered by two AAA batteries (available for sale separately), which you can easily remove and replace. The soft material housing is pleasant to the touch, plus it provides effective insulation and is drop-resistant.
IncludedDigital universal multimeter
Test leads
User's manual
ProducerHabotestModelHT124A+HT124B+DC voltage measurement range400mV/4V/40V/400V/600V400mV/4V/40V/400V/600V
AC voltage measurement range4V/40V/400V/600V4V/40V/400V/600VResistance measurement range400?/4k?/40k?/400k?/4M?/40M?400?/4k?/40k?/400k?/4M?/40M?Capacitance measurement range-4nF/40nF/400nF/4μF/40μF/400μF/4mFFrequency measurement range4Hz/40Hz/400Hz/4kHz/40kHz4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/4MHzLive TestYes, sound and light alarmYes, sound and light alarmNCVYes, sound and light alarmYes, sound and light alarmDiode testing-Yes, 0~2VContinuity<50?<50?Number of counts40004000Data storageYesYesTrue RMS valueYesYesLow battery indicatorYesYesAutomatic power off functionYesYesIlluminationYesYesFlashlightYesYesPower supply2x battery 1.5V AAA2x battery 1.5V AAASafetyEN61010-1, CAT III 600VEN61010-1, CAT III 600VWeight125 g125 gDimensions130 x 70 x 23 mm130 x 70 x23 mm
