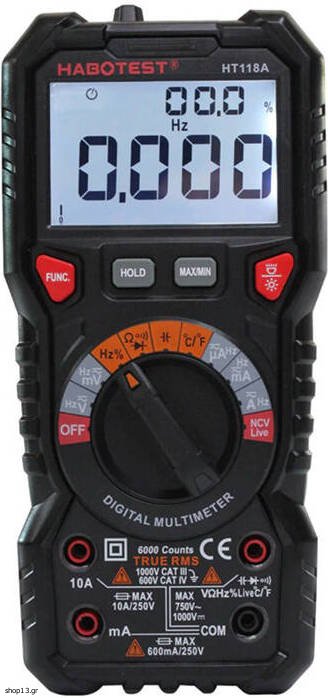

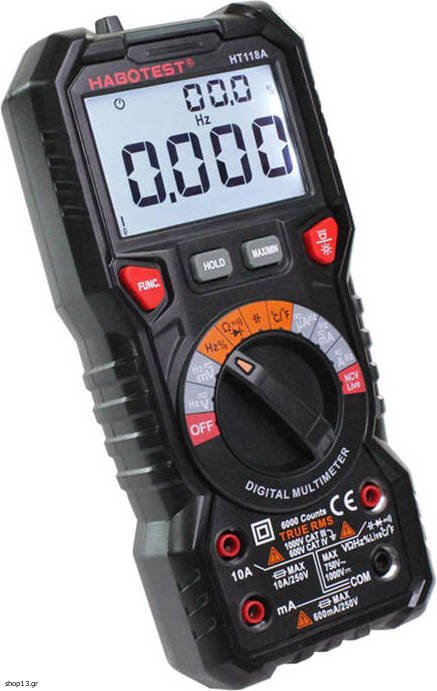

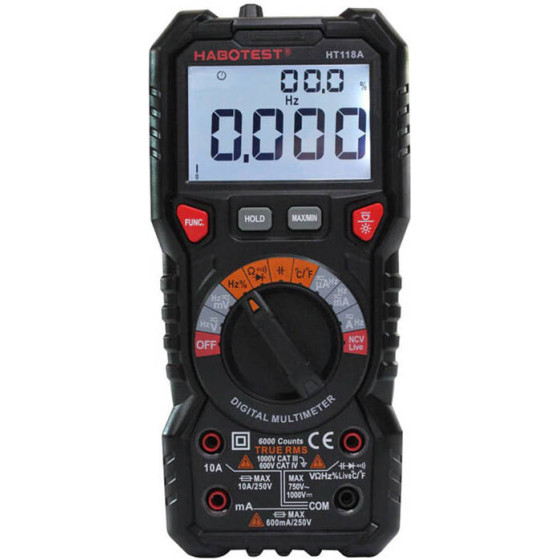

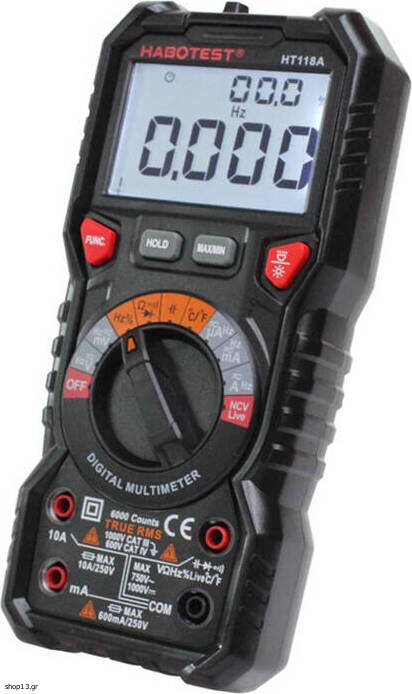

Habotest HT118A Universal MeterThe Habotest universal meter is an indispensable tool that provides precise measurement of parameters such as voltage, continuity or temperature, among others. The backlit display makes it easy to use. The built-in flashlight will allow you to work also in dark rooms, and with a special stand you can safely place the device on a flat surface. The product is also equipped with NCV sensors for non-contact voltage measurement. The meter supports automatic range selection.
Measures many different parametersThe HT118A has many useful functions. You can use it to measure AC and DC voltage, capacitance, and temperature from -40°C-1000°C, among other things. You can also check whether a cable is live and check for continuity. But this is not the end of the possibilities! The meter also allows for non-contact voltage measurement (NCV).
Clear display and practical backlightOperation of the device is very simple. The measurement results are displayed on a clear LCD screen, which has a double backlight. If the voltage value exceeds 80 V or the current value exceeds 1 A, its color will change to orange. Moreover, the meter has a jack input port LED indicator.
Additional featuresHabotest HT118A also supports other useful functions, such as max/min and diode testing, for example. You can also check the true RMS value with it. It also allows you to store data. In addition, the automatic range selection ensures optimal measurement in every situation.
Long working timeThe device requires 2 AA batteries to power it. Moreover, you don't have to worry about the meter discharging prematurely. Even if you forget to turn it off, it will automatically stop working after 15 minutes of inactivity. HT118A will take care of everything for you!

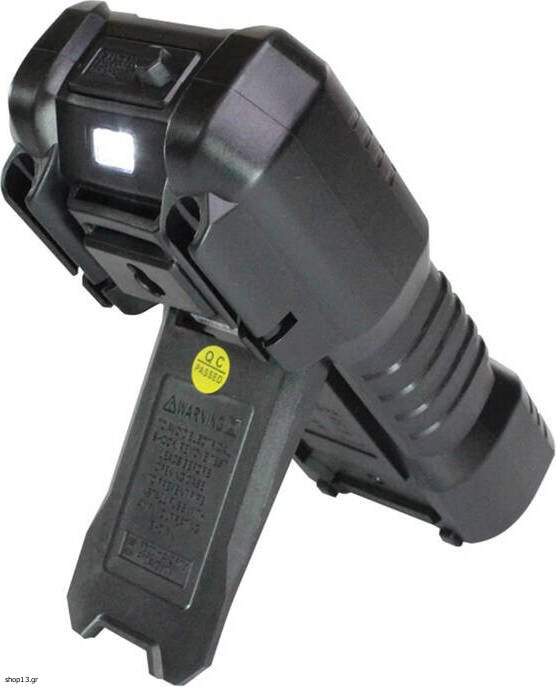

Thoughtful designThe device is light and handy - it fits perfectly in your hand and provides comfort of use. Thanks to the built-in flashlight you can use it comfortably and safely even in poorly lit rooms. The meter is also equipped with a folding stand placed at the back, which allows you to place it stably on a table or shelf.
BrandHabotestModelHT118AHT118CDC voltage (range + accuracy)600 mV ±(0.5%+3);
6/60/600/1000 V ±(0.5%+3)600 mV/6 V/60 V/600 V/1000 V ±(0.5%+3)AC voltage (range + accuracy)600 mV ±(1.0%+5);
6/60/600/750 V ±(1.0%+5)6/60/600/750 V ±(1.0%+5)DCurrent (range + accuracy)600 uA/6000 uA/60 mA/600 mA ±(0.8%+3);
6/10 A ±(1.2%+3)60 uA/60 mA/600 mA ±(0.8%+3);
10 A ±(1.2%+3)AC current (range + accuracy)600 uA/6000 uA/60 mA/600 mA ±(1.0%+3);
6 A/10 A ±(1.5%+3)60/600 mA ±(1.0%+3);
10 A ±(1.5%+3)Resistance (range + accuracy)600 ?/6 k?/60 k?/600 k?/6 M?/60 M? ±(0.8%+3)600 ?/6 k?/60 k?/600 k?/6 M?/60 M? ±(0.8%+3)Capacitance (range + accuracy)10 nF/100 nF/1 μF/10 μF/100 μF/1 mF/10 mF ±(4.0%+3);
100 mF ±(5.0%+5)10 nF/100 nF/1 μF/10 μF/100 μF/1 mF/10 mF ±(4.0%+3);
100 mF ±(5.0%+5)Frequency (range + accuracy)10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz ±(1.0%+3)10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz ±(1.0%+23)Fill factor (range + accuracy)1-99% ±(1.0%+2)1-99% ±(1.0%+2)Temperature (range + accuracy)-40°C-1000°C ±(1.0%+3);
-40°F-1832°F ±(1.0%+3)-40°C-1000° ±(1.0%+3);
-40°F-1832°F ±(1.0%+3)Counts60006000Selection of rangesAutomaticManualDisplayLCDLCDBar graphYesNoLive testYes, audible and light alarmYes, audible and light alarmNCVYes, audible and light alarmYes, audible and light alarmDiode testingYesYesContinuityYes, audible and light alarmYes, audible and light alarmMax/minYesYesData storageYesYesTrue RMS valueYesYesPass Ratio1 kHz1 kHzBattery testing (1.5 V/9 V)NoYesLow charge indicatorYesYesAutomatic shutoffYesYesDouble backlight displayYesYesLED indicator for jack input portYesYesLightYesYesPower supply2x AA battery(included)2x AA battery(included)WeightAppx. 350 gAbout 350 gDimensions188x88x58 mm188x88x58 mmSafetyEN61010-1,-2-030;
EN61010-2-033;
EN61326-1 CAT III 1000 V, CATIV 600 VEN61010-1,-2-030;
EN61010-2-033;
EN61326-1 CAT III 1000 V, CATIV 600 V
