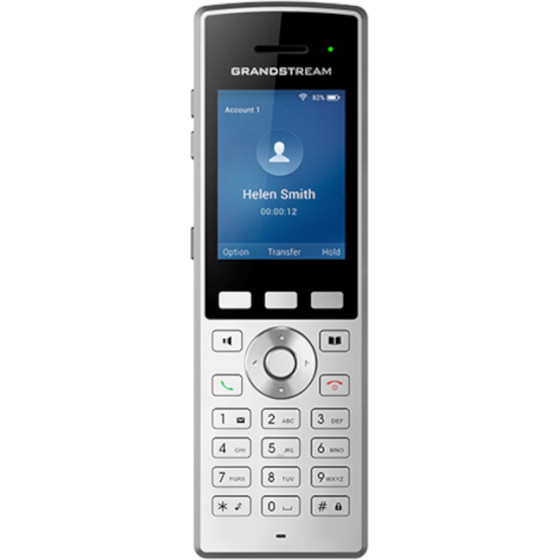

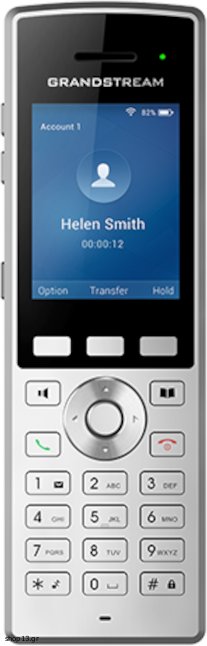

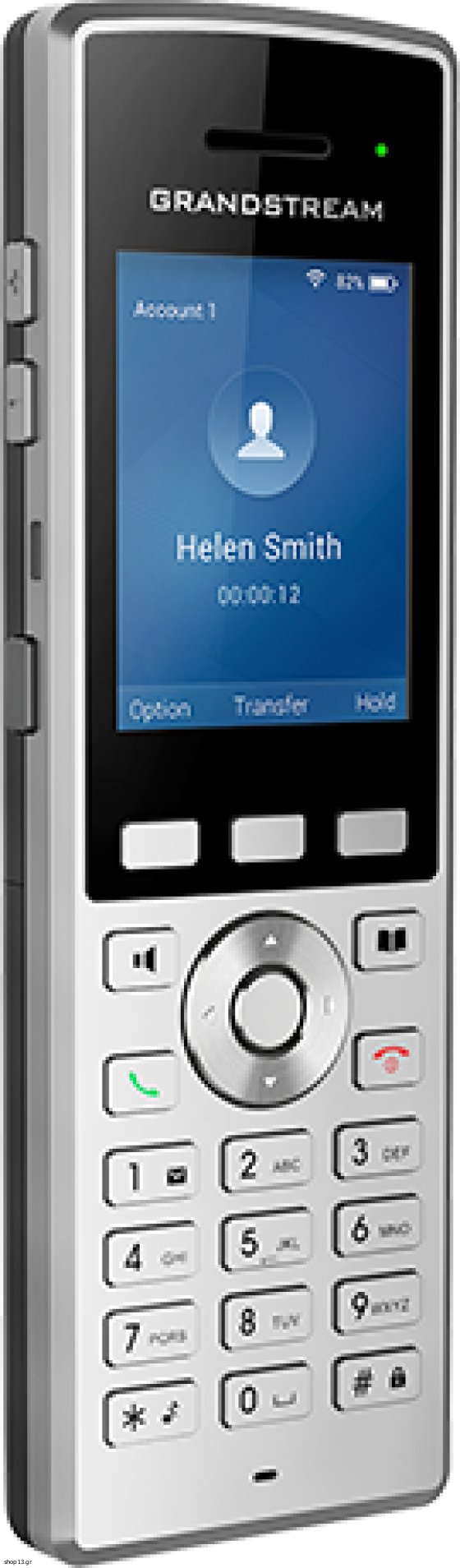

The WP822 is a portable Wi-Fi IP phone designed to suit a variety of enterprises and vertical market applications, including retail, logistics, medical and security. This business-grade Wi-Fi phone comes equipped with integrated dual-band 802.11a/b/g/n/ac Wi-Fi, an advanced antenna design and roaming support. By adding 8-hour talk time, HD voice with dual-MICs, and a configurable push-to-talk button, the WP822 comes equipped with a combination of features, mobility and durability to suit all portable telephony needs. Features
Dual-band Wi-Fi with efficient antenna design and advanced roaming support
2 SIP accounts, 2 lines
HD voice & dual MIC design with AEC and Noise Shield Technology
Rechargeable 2000mAh battery, 8 hour talk time, 200-hour standby
Integrated Bluetooth to connect headsets
Configurable button for push-to-talk
Micro USB port and 3.5mm headset jack
Specifications
Protocol/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, 802.1x, TLS, SRTP, IPv6
Voice Codecs and Capabilities
Support for G.711μ/a, G.729A/B, G.722 (wide-band), iLBC, Opus, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Wi-Fi
Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz). 802.11k/r/v Supported (WPA2/WPA2-Enterprise).
Wi-Fi Encryption
WEP, WPA/WPA2, WPA Enterprise, WPA3, WPA3-Enterprise
Graphic
2.4 inch (240x320) TFT color LCD
Bluetooth
Yes, integrated
Peripherals
3 soft keys, dial, hang-up, speakerphone, phonebook, backlit keypad, proximity sensor, vibration motor, volume button, navigation keys, and accelerometer supporting configurable gestures
Push-to-Talk
Customizable button for push-to-talk
Auxiliary Ports
3.5 mm headset jack, Micro USB port for charging, dual-MIC, dual-color MWI LED
Telephony
Hold, transfer, forward, 3-way audio conference, call waiting, call log (up to 100 records), downloadable phonebook (XML, up to 500 items) off-hook auto dial, auto answer, flexible dial plan, personalized music ringtones, server redundancy and fail-over, push to talk, LDAP
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control
HD Audio
Yes, both on handset and speakerphone with support for wideband audio, HAC supported
QoS
802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS
Multi-language
English, Chinese, German, French, Italian, Portuguese, Russian, Spanish, and more
Upgrade/Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS/FTP/FTPS, mass provisioning using encrypted XML configuration file, manual upload
Power & Green Energy Efficiency
Universal power adapter included
Input: 100-240VAC
Output: +5VDC, 1A (5W) 2000mA Li-ion battery, 200h standby time and 8h talk time
Physical
Handset dimensions: 164.0 x 52.0 x 25.8mm

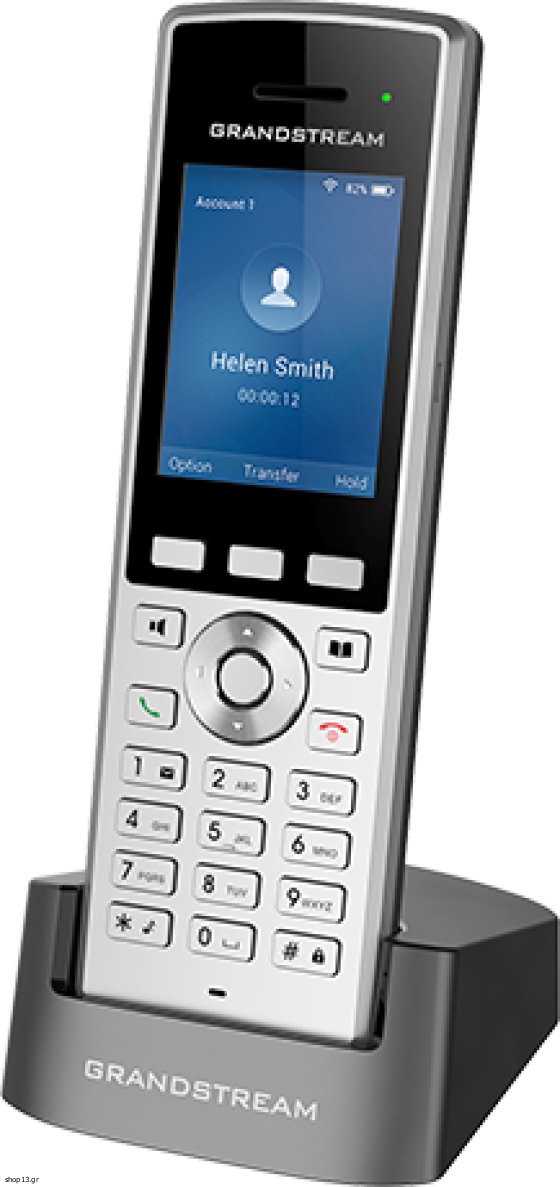

Charger cradle dimensions: 77.9 x 81.2 x 38.2mm
Handset weight: 185.90g
Handset package weight (not including QIG): 422.60g
Temperature and Humidity
Operating Temperature: 0oC to 45oC
Operating Humidity: 10-90% (non-condensing)
Storage Temperature: -20oC to 60oC
Storage Humidity: 10-90% (non-condensing)
Package Contents
Handset unit, universal power supply, charger cradle, belt clip, 1 Li-ion battery, Quick Start Guide
Compliance
FCC, CE, RCM, IC, UKCA
