Description

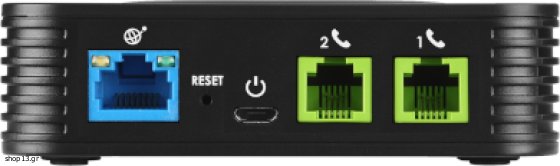

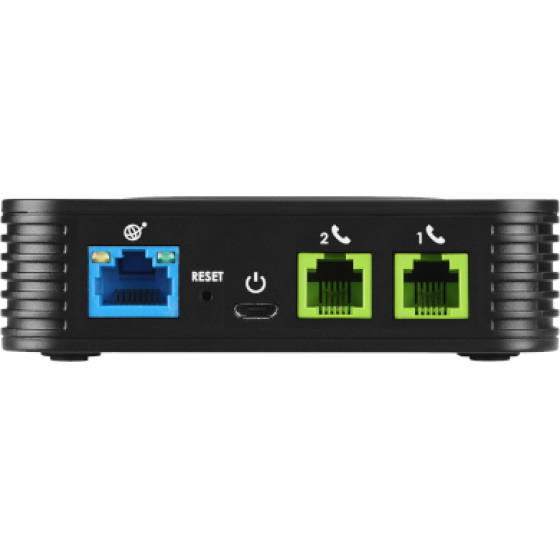

The HT802 is a 2 port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office envir onments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones and enables service provider s to offer high quality IP service. The HT802 is an ideal ATA for individual use and for large scale co mmercial IP voice deployments. Features
- Supports 2 SIP profiles through 2 FXS ports and a single 10/100Mbps port
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
Specifications
Interfaces Telephone Interfaces
Two (2) RJ11 FXS ports
Network Interfaces
One (1) 10/100Mbps auto-sensing ethernet ports (RJ45)
LED Indicators
POWER, INTERNET, PHONE1, PHONE2
Factory Reset Button
Yes
Voice, Fax, Modem Telephony Features
Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs
G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax Over IP
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load
2 REN: Up to 1km on 24 AWG
Caller ID
Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods
Busy Tone, Polarity Reversal/Wink, Loop Current
Signaling Network Protocols
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS
Layer 2 (802.1Q VLAN, SIP/RTP 802.1p), Layer 3 (ToS, DiffServ, MPLS)
DTMF Method
In-audio, RFC2833 and/or SIP INFO
Provisioning and Control
HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Security Media
SRTP
Control
TLS/SIPS/HTTPS
Management
Syslog support, SSH, remote management using web browser
Physical Universal Power Supply
Input: 100-240VAC, 50-60Hz Output: 5.0VDC/1.0A
Environmental
Operational: 32o - 104oF or 0o - 40oC Storage: 14o - 140oF or -10o - 60oC Humidity: 10 - 90% Non-condensing
Dimension and Weight
100mm x 100mm x 29.5mm, 114g (without package)
Compliance
FCC/CE/RCM, K.21
