Description

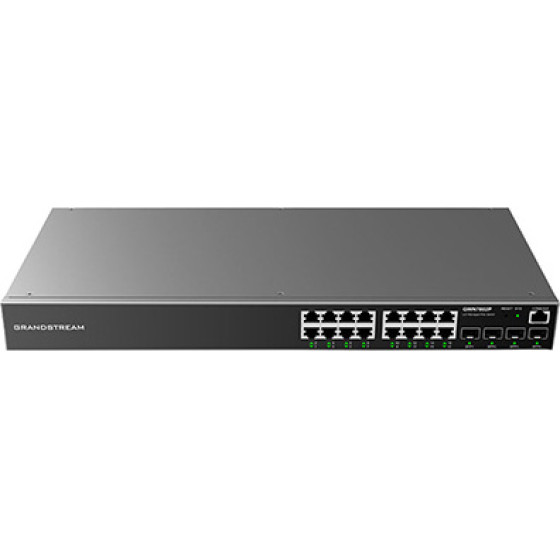

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models
provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal
managed network switches for small-to-medium businesses.
Features
16 Gigabit Ethernet ports and 4 Gigabit SFP ports
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
Supports deployment in IPv6 and IPv4 networks
Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
Built-in QoS allows for prioritization of network traffic
Specifications
Network Protocol
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Gigabit Ethernet Ports
16
Gigabit SFP Ports
2
Console
1
# of PoE Ports
16
Integrated Power Supply
270W
Max Output Power per PoE Port
30W
Max Total PoE Output Power
240W
PoE Standards
IEEE 802.3af/at
Auxiliary Ports
1x Reset Pinhole
Forwarding Mode
Store-and-forward
Total non-blocking throughput
20Gbps
Switching Capability
40Gbps
Forwarding Rate
29.76M packets per second
Packet Buffer
4.1MB
Switching
o 8K static, dynamic and filtering MAC addresses
o 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
o VLAN virtual interface
o GVRP
o 8 link aggregation groups
o Spanning tree, 64 instances for STP/RTSP/MSTP
Multicast
IGMP Snooping, MLD Snooping, MVR
QoS/ACL
o Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets
o Port priority
o Priority mapping
o Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
o Traffic shaping
o Rate limit
o 1.5K ACL for Ethernet, IPv4 and IPv6
DHCP
DHCP server, DHCP relay, Option 82, 60,160 and 43
Maintenance
CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security
o User hierarchical management and password protection, HTTPS, SSH, Telnet
o 802.1X authentication
o AAA authentication including RADIUS, TACACS+
o Storm control
o Port isolation, port security, sticky MAC
o Filtering MAC address
o IP source guard, DoS attack prevention, ARP inspection
o DHCP Snooping
o Loop protection including BPDU protection, root protection and loopback protection
o Kensington Security Slot (Kensington Lock) support
Mounting
Desktop/ Wall-Mount
LEDs
1x tri-color LED for device tracking and status indication, 20x green-color LEDs for data ports, 16x yellow-color LEDs for PoE ports
Fan
/
Environmental
Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)
Dimensions
440mm(L)*200mm(W)*44mm(H)
Unit Weight(TBD)
3Kg
Package Content
Switch, 1x 1.2m(10A) AC Cable, Rack-mounting Standard Brackets, 1x Ground Cable, 4x Rubber Feet, 2x Lug Ear
Compliance
FCC, CE, RCM, IC, UKCA
