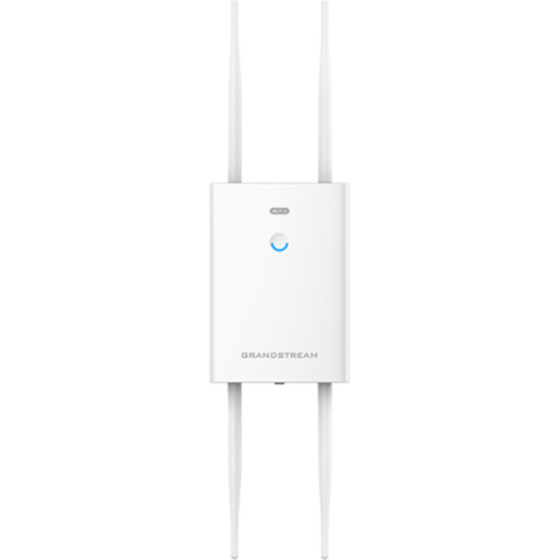

Grandstream - (GWN7664LR)
[Κωδικός : 464538]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
The GWN7664LR is an outdoor 802.11ax 4x4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more. Features
3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
Dual-band 4x4:4 MU- MIMO with DL/UL OFDMA technology
Self power adaptation upon auto detection of PoE or PoE+
Support 750+ concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibility of 4 detachable/changeable antennas for different application scenarios
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management Specifications
Wi-Fi Standards
IEEE 802.11 b/g/n/ac/ax
Antennas
4 dual band external antennas
2.4GHz, gain 3.5dBi
5 GHz, gain 3.5dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ax: 8 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 8 Mbps to 1147 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4GHz radio: 2412 - 2484 MHz
5GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.
Channel Bandwidth
2.4G: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)
System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO
4x4:4 2.4GHz, 4x4:4 5GHz
Coverage Range
Up to 300 meters
*Coverage range can vary based on environment
Maximum TX Power
5G: 25dBm 2.4G: 26dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity
2.4G
802.11b: -99dBm@1Mbps, -91dBm@11Mbps
802.11g: -94dBm @6Mbps, -78dBm@54Mbps
802.11n 20MHz: -75dBm @MCS7
802.11n 40MHz:-71dBm @MCS7
802.11ax 20MHz: -64dBm @ MCS11
802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps
802.11n: 20MHz: -74dBm @MCS7
802.11 n 40MHz: -71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8
802.11ac: HT40:- 66dBm @MCS9
802.11ac 80MHz: -62dBm @MCS9
802.11ax 20MHz: -64dBm @ MCS11
802.11ax 40MHz: -62dBm @MCS11
802.11ax 80MHz: -59dBm @ MCS11
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
750+
Network Interfaces
1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout
Auxiliary Ports
1x Reset Pinhole
Mounting
Wall mount or pole mount, kits included
LEDs
1 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at
Maximum Power Consumption: 18W
Environmental
Operation:-30°Cto 60°C
Storage: -30°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H)
Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H)
Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H)
Package Content
GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
Weatherproof Grade
IP66-level weatherproof capability when installed vertically
Compliance
FCC, CE, RCM, IC, UKCA
