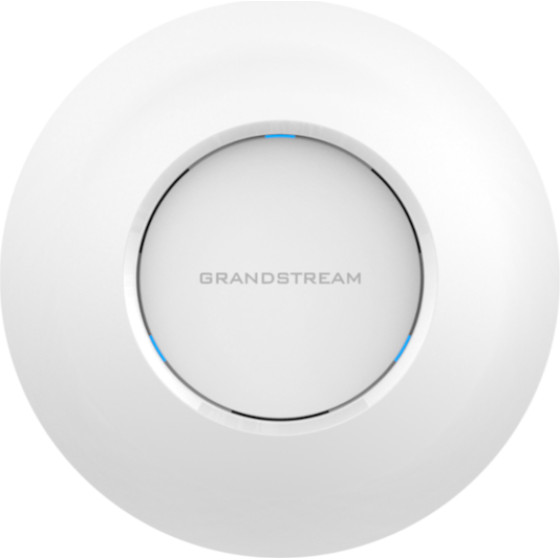

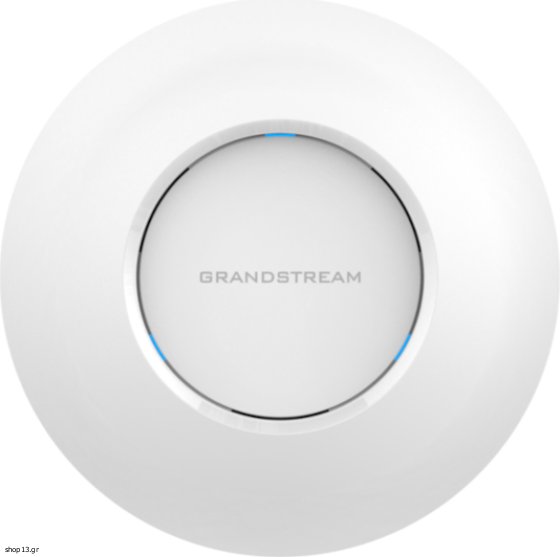

Grandstream - (GWN7664)
[Κωδικός : 464537]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi cover age range. The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps. The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 750+ concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.
Features
3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology
Up to 175-meter coverage range
Supports 750+ concurrent Wi-Fi client devices
Includes 1x 1G Port and 1x 2.5G Port
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self power adaptation upon auto detection of PoE or PoE+
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management Specifications
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax
Antennas
8 individual internal antennas, 4 per band 2.4GHz, gain 3dBi 5 GHz, gain 4dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ax: 8 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 8 Mbps to 1147 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the networ
Frequency Bands
2.4GHz Radio: 2412 - 2484 MHz 5GHz Radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth
2.4G: 20 and 40 MHz (x4) 5G: 20, 40 and 80 MHz (x4)
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
4x4:4 2.4GHz 4x4:4 5GHz
Coverage Range
Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power
5G: 25dBm 2.4G: 26dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -99dBm@1Mbps, -91dBm@11Mbps
802.11g: -94dBm @6Mbps, -78dBm@54Mbps
802.11n 20MHz: -75dBm @MCS7
802.11n 40MHz:-71dBm @MCS7
802.11ax 20MHz: -64dBm @ MCS11
802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps
802.11n 20MHz: -74dBm @MCS7
802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8
802.11ac: HT40:- 66dBm @MCS9
802.11ac 80MHz: -62dBm @MCS9
802.11ax 20MHz: -64dBm @ MCS11
802.11ax 40MHz: -62dBm @MCS11
802.11ax 80MHz: -59dBm @MCS11
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
750+
Network Interfaces
1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
1 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at; Maximum Power Consumption: 17W
Environmental
Operation: 0°Cto 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H)
Unit Weight: 0.714Kg
Entire Package Dimension: 258x247x86mm
Entire Package Weight: 1.06Kg
Package Content
GWN7664 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi cover age range. The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps. The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 750+ concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.
Features
3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology
Up to 175-meter coverage range
Supports 750+ concurrent Wi-Fi client devices
Includes 1x 1G Port and 1x 2.5G Port
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self power adaptation upon auto detection of PoE or PoE+
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management Specifications
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax
Antennas
8 individual internal antennas, 4 per band 2.4GHz, gain 3dBi 5 GHz, gain 4dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ax: 8 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 8 Mbps to 1147 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the networ
Frequency Bands
2.4GHz Radio: 2412 - 2484 MHz 5GHz Radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth
2.4G: 20 and 40 MHz (x4) 5G: 20, 40 and 80 MHz (x4)
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
4x4:4 2.4GHz 4x4:4 5GHz
Coverage Range
Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power
5G: 25dBm 2.4G: 26dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -99dBm@1Mbps, -91dBm@11Mbps
802.11g: -94dBm @6Mbps, -78dBm@54Mbps
802.11n 20MHz: -75dBm @MCS7
802.11n 40MHz:-71dBm @MCS7
802.11ax 20MHz: -64dBm @ MCS11
802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps
802.11n 20MHz: -74dBm @MCS7
802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8
802.11ac: HT40:- 66dBm @MCS9
802.11ac 80MHz: -62dBm @MCS9
802.11ax 20MHz: -64dBm @ MCS11
802.11ax 40MHz: -62dBm @MCS11
802.11ax 80MHz: -59dBm @MCS11
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
750+
Network Interfaces
1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
1 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at; Maximum Power Consumption: 17W
Environmental
Operation: 0°Cto 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H)
Unit Weight: 0.714Kg
Entire Package Dimension: 258x247x86mm
Entire Package Weight: 1.06Kg
Package Content
GWN7664 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
