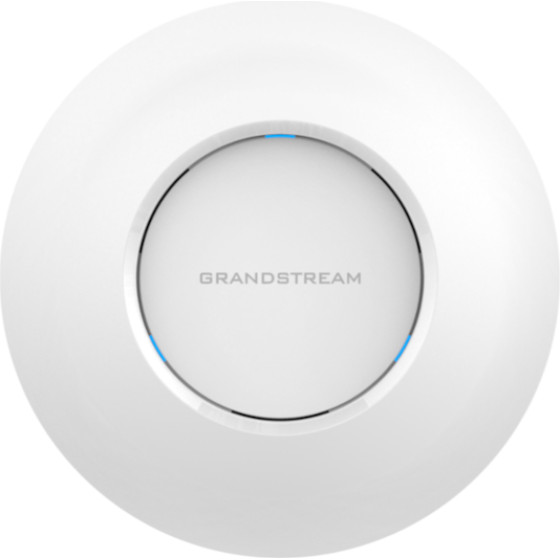

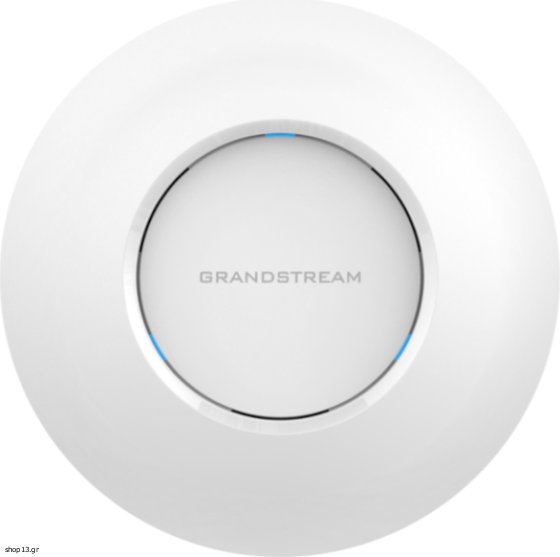

Grandstream - (GWN7660)
[Κωδικός : 464533]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
The GWN7660 offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Features
1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology
Up to 175-meter coverage range
Supports 500+ concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller Specifications
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax
Antennas
2 dual band internal antennas 2.4GHz, gain 3dBi / 5 GHz, gain 4dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ax: 7.3 Mbps to 1201 Mbps;
IEEE 802.11ac: 6.5 Mbps to 867 Mbps;
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4GHz radio: 2400-2483.5MHz 5GHz radio: 5150-5850MHz
Channel Bandwidth
2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
2x2:2 2.4GHz 2x2:2 5GHz
Coverage Range
Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power
5G: 22dBm 2.4G: 24dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps
802.11g: -93dBm @6Mbps, -75dBm@54Mbps
802.11n 20MHz: -73dBm @MCS7
802.11n 40MHz: -70dBm @MCS7
802.11ax 20MHz: -60dBm @MCS11
802.11ax 40MHz: -58dBm @MCS11
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps
802.11n 20MHz: -73dBm @MCS7
802.11n 40MHz: -70dBm @MCS7
802.11ac 20MHz: -67dBm@MCS8
802.11ac: 40MHz: -63dBm @MCS9
802.11ac 80MHz: -59dBm @MCS9
802.11ax 20MHz: -60dBm @MCS11
802.11ax 40MHz: -58dBm @MCS11
802.11ax 80MHz: -56dBm @ MCS11
SSIDs
32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients
500+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at; Maximum Power Consumption: 9W
Environmental
Operation: 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 180.4mmx180.4mmx40.8mm
Unit Weight: 443g
Entire Package Dimension: 228.5x220x79mm
Entire Package Weight: 774g
Package Content
GWN7660 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
