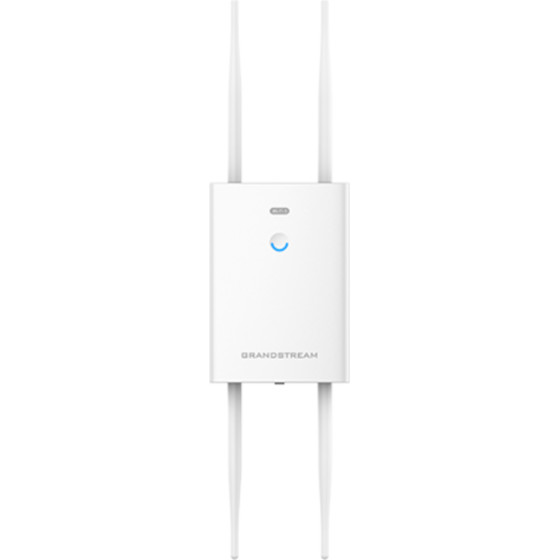

Grandstream - (GWN7630LR)
[Κωδικός : 464532]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
The GWN7630LR is an outdoor long-range 802.11 ac Wave-2 Wi-Fi access point for medium to large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4x4:4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput that supports 200+ clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7630LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. The GWN7630LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable voice and video IP phones. By including support for advanced QoS, low-latency real-time applications, mesh networks and captive portals, the GWN7630LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more. Features
2.33Gbps wireless throughput and 2x Gigabit wireline ports
Dual-band 4x4:4 MIMO technology
Self power adaptation upon auto detection of PoE/PoE+
Support 200+ concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibilty of detachable/ changeable antenna for different application scenarios
Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management Specifications
Wi-Fi Standards
IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
4 detachable/changeable dual-band omnidirectional antennas
2.4GHz, gain 3.5dBi
5GHz, gain 3.5dBi
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 1733Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4 GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz*Not all frequency bands can be used in all regions
Channel Bandwidth
2.4G: 20 and 40MHz
5G: 20, 40 and 80MHz
System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
4x4:4 2.4G (MIMO), 4x4:4 5G (MU-MIMO)
Coverage Range
Up to 300 meters
*Coverage range can vary based on environment
Maximum TX Power
2.4G: 27 dBm 5G: 25 dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
32 SSIDs total, 16 per radio (2.4 Ghz and 5 Ghz)
Concurrent Clients
200+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole
Mounting
Wall mount or pole mount - kits included
LEDs
1x tri-color LEDs for device tracking and status indication
Network Protocols
IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at
Max Consumption: 16.5W
Environmental
Operation: -30°C to 60°C
Storage: -30°C to 70°C
Humidity: 5% to 95% Non-condensing
Physical
Unit Dimension: 533.1 x 115 x 40mm
Unit Weight: 564g Unit + Mounting Kits Dimension : 533.1x115 x62mm; Unit + Mounting Kits Weight : 706g
Entire Package Dimension: 258 x 247x 86mm
Entire Package Weight: 978g
Package Content
GWN7630LR 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Weatherproof Grade
IP66-level weatherproof capability when installed vertically
Compliance
FCC, CE, RCM, IC
The GWN7630LR is an outdoor long-range 802.11 ac Wave-2 Wi-Fi access point for medium to large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4x4:4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput that supports 200+ clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7630LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. The GWN7630LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable voice and video IP phones. By including support for advanced QoS, low-latency real-time applications, mesh networks and captive portals, the GWN7630LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more. Features
2.33Gbps wireless throughput and 2x Gigabit wireline ports
Dual-band 4x4:4 MIMO technology
Self power adaptation upon auto detection of PoE/PoE+
Support 200+ concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibilty of detachable/ changeable antenna for different application scenarios
Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management Specifications
Wi-Fi Standards
IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
4 detachable/changeable dual-band omnidirectional antennas
2.4GHz, gain 3.5dBi
5GHz, gain 3.5dBi
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 1733Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4 GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz*Not all frequency bands can be used in all regions
Channel Bandwidth
2.4G: 20 and 40MHz
5G: 20, 40 and 80MHz
System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
4x4:4 2.4G (MIMO), 4x4:4 5G (MU-MIMO)
Coverage Range
Up to 300 meters
*Coverage range can vary based on environment
Maximum TX Power
2.4G: 27 dBm 5G: 25 dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
32 SSIDs total, 16 per radio (2.4 Ghz and 5 Ghz)
Concurrent Clients
200+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole
Mounting
Wall mount or pole mount - kits included
LEDs
1x tri-color LEDs for device tracking and status indication
Network Protocols
IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at
Max Consumption: 16.5W
Environmental
Operation: -30°C to 60°C
Storage: -30°C to 70°C
Humidity: 5% to 95% Non-condensing
Physical
Unit Dimension: 533.1 x 115 x 40mm
Unit Weight: 564g Unit + Mounting Kits Dimension : 533.1x115 x62mm; Unit + Mounting Kits Weight : 706g
Entire Package Dimension: 258 x 247x 86mm
Entire Package Weight: 978g
Package Content
GWN7630LR 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Weatherproof Grade
IP66-level weatherproof capability when installed vertically
Compliance
FCC, CE, RCM, IC
