Description

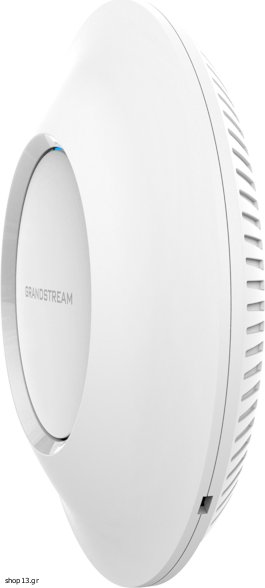

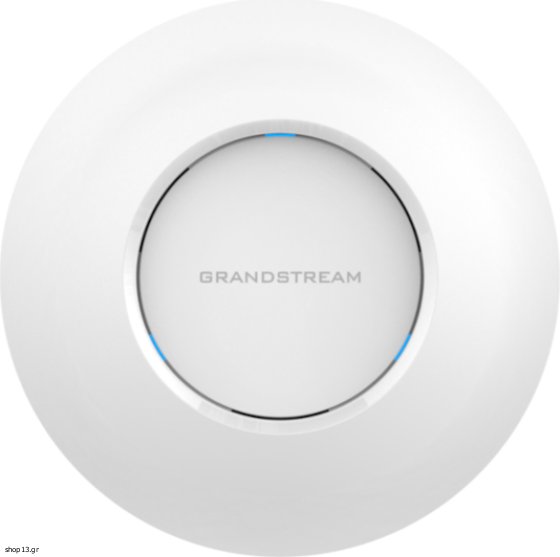

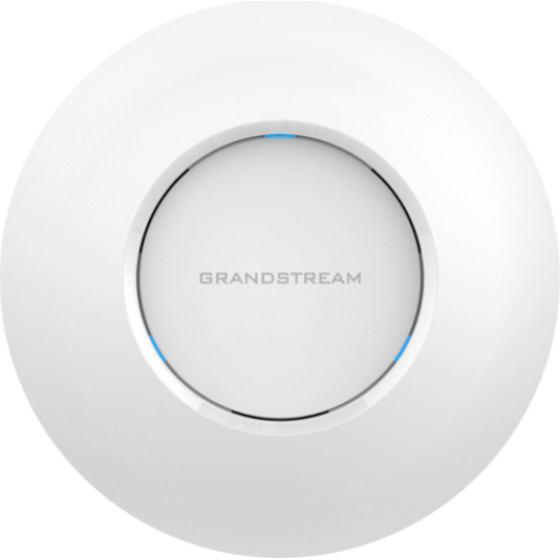

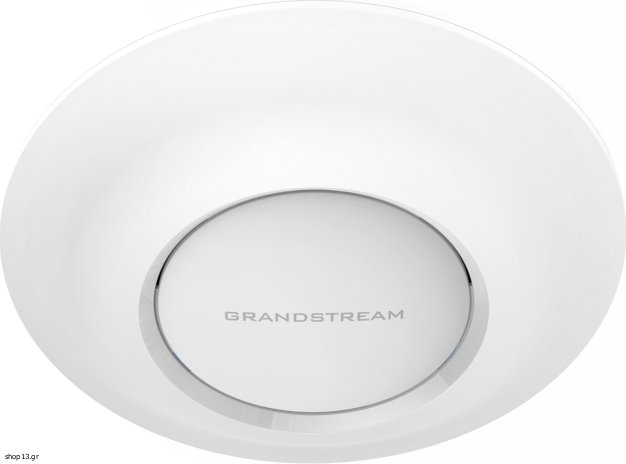

The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4x4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density. Features
2.33 Gbps wireless throughput and 2 Gigabit wireline ports
Dual-band 4x4:4 MU-MIMO technology
Self power adaptation upon auto detection of PoE or PoE+
Supports 200+ concurrent Wi-Fi client devices
Up to 175-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management Specifications
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
4 dual band internal antennas 2.4GHz, gain 4dBi 5 GHz, gain 5dBi
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 1733Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4GHz radio: 2412 - 2484 MHz 5GHz radio: 5180 - 5825 MHz
Channel Bandwidth
2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
4x4:4 2.4G(MIMO) 4x4:4 5G(MU-MIMO)
Coverage Range
Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power
2.4G: 27 dBm 5G: 25 dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps
802.11g: -93dBm @6Mbps, -75dBm@54Mbps
802.11n 20MHz: -73dBm @MCS7;
802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps
802.11ac 20MHz: -67dBm@MCS8
802.11ac: HT40:- 63dBm @MCS9
802.11ac 80MHz: -59dBm @MCS9
SSIDs
32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients
200+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN Aps GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
Support 802.3 az ; POE 802.3af/ 802.3at; Max Consumption: 16.5W
Environmental
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 205.3 x 205.3 x 45.9mm
Unit Weight: 590g Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm
Unit + Mounting Kits Weight : 710g
Entire Package Dimension: 258 x 247 x 86mm
Entire Package Weight: 930g
Package Content
GWN7630 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
