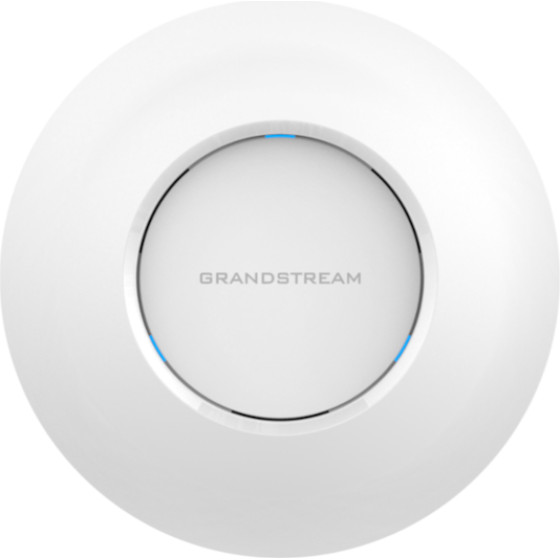

Grandstream - (GWN7625)
[Κωδικός : 464530]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, home offices, retail shops, restaurants and more. It offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7625 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7625 is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advance d QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7625 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density. Features
2.03 Gbps wireless throughput and 2 Gigabit wireline ports 5GHz 4x4:4 MU-MIMO
Supports up to 200 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 30 local GWN series APs;
GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller Specifications
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
6 single frequency internal antennas 2.4GHz, gain 3.5dBi 5GHz, gain 4.5dBi
Wi-Fi Data Rates
2.4G:
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
5G:
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5180 - 5825 MHz*Not all frequency bands can be used in all regions
Channel Bandwidth
2.4G: 20 and 40 MHz 5G: 20, 40 and 80 MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
2x2:2 2.4GHz(MIMO) 4x4:4 5GHz(MU-MIMO)
Maximum TX Power
2.4G: 23dBm 5G: 25dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps
802.11g: -93dBm @6Mbps, -75dBm@54Mbps
802.11n 20MHz: -73dBm @MCS7
802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps
802.11n 20MHz: -74dBm @MCS7
802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -67dBm@MCS8
802.11ac: HT40:- 63dBm @MCS9
802.11ac 80MHz: -59dBm @MCS9
SSIDs
16 SSIDs total, 8 per radio (2.4GHz & 5GHz)
Concurrent Clients
200
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 30 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
Supports 802.3az PoE 802.3af/ 802.3at; Maximum Power Consumption: <13W
Environmental
Operation: 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H)
Unit Weight: 530g
Entire Package Dimension: 258mm(L)x247mm(W)x86mm(H)
Entire Package Weight: 897.3g
Package Content
GWN7625 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Installation Guide
Compliance
FCC, CE, RCM, IC, UKCA
