Description

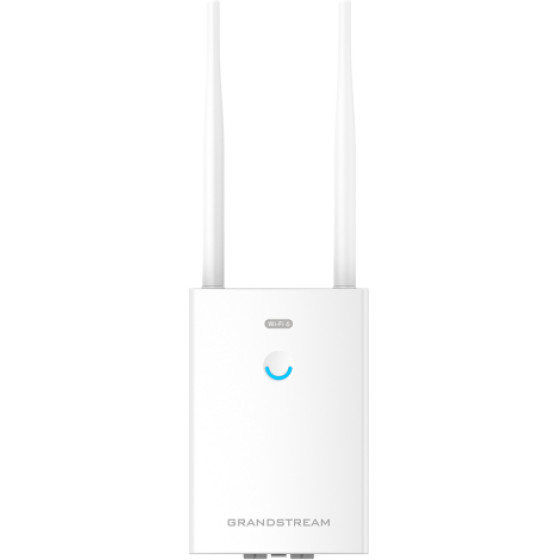

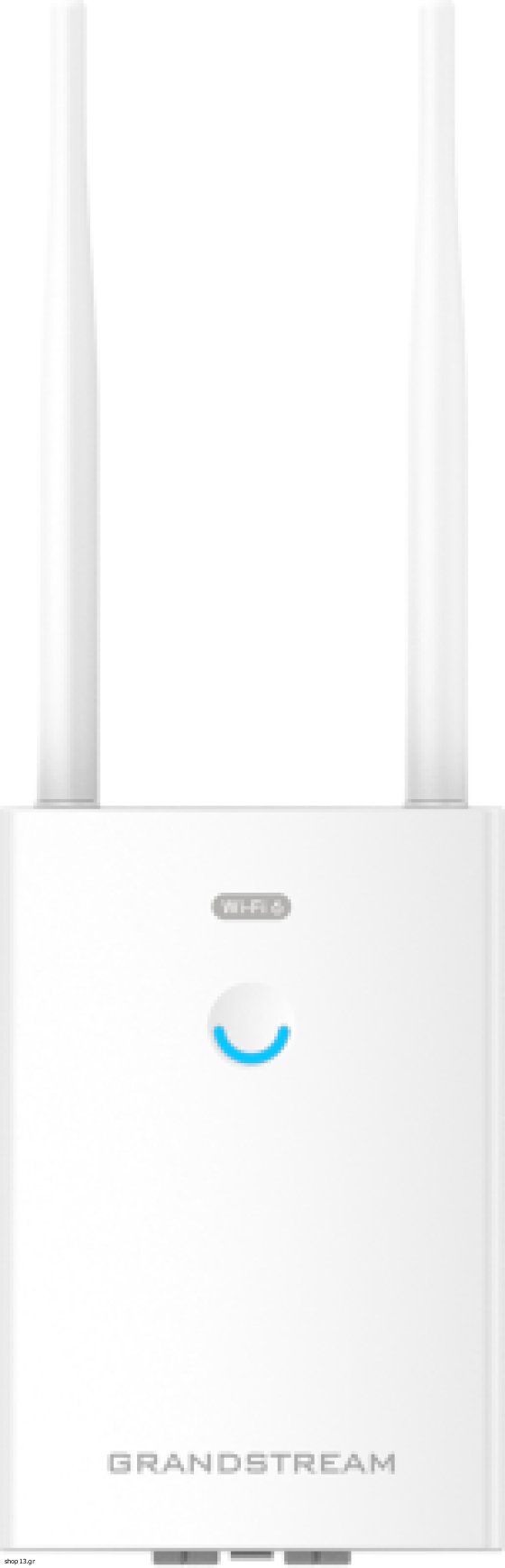

The GWN7605LR is equipped with a controller-less distributed network management architecture in which the controller is embedded within the product’s Web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7605LR is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. Powered by market leading technology for advanced QoS, fast roaming, mesh networks, captive portals, support for 100+ concurrent clients and dual Gigabit network ports, the GWN7605LR is an ideal Wi-Fi access point for low-latency jitter-sensitive real-time applications (such as voice/video-over-Wi-Fi devices & applications) in low-to-medium indoor and outdoor user density scenarios.
Features
1.27Gbps aggregate wireless throughput and 2xGigabit wireline ports
Dual-band 2x2:2 MUMIMO with beam-forming technology
Self power adaptation upon auto detection of PoE or PoE+
Supports 100+ concurrent Wi-Fi client devices
Up to 250-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibilty of 2 detachable/ changeable antennas for different application scenarios
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management Specifications
Wi-Fi Standards
IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
2 dual band external antennas 2.4GHz, gain 3.5dBi 5 GHz, gain 3.5dBi
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4Ghz
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4GHz Radio: 2412 - 2484 MHz 5 GHz Radio: 5180-5825 MHz
*Not all frequency bands can be used in all regions.
Channel Bandwidth
2.4G: 20 and 40MHz 5G: 20, 40 and 80 MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
2x2:2 2.4GHz (MIMO) 2x2:2 5GHz (MU-MIMO)
Coverage Range
Up to 250 meters
*Coverage range can vary based on environment
Maximum TX Power
2.4G: 24 dBm 5G: 22dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps
802.11g: -93dBm @6Mbps, -75dBm@54Mbps
802.11n 20MHz: -73dBm @MCS7
802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps
802.11ac 20MHz: -67dBm@MCS8
802.11ac: HT40:- 63dBm @MCS9
802.11ac 80MHz: -59dBm @MCS9
SSIDs
16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz)
Concurrent Clients
100+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole
Mounting
Outdoor metal bar mount or wall mount, kits included
LEDs
1x tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager (BETA) offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at; Maximum Power Consumption: 10.16W
Environmental
Operation: -30°C to 70°C
Storage: -30°C to 80°C
Humidity: 5% to 95% Non-condensing
Physical
Unit Dimension: 358.3mm(L)*115mm(W)*45.3mm(H)
Unit Weight: 500g
Entire Package Dimension: 258 x 247x 86mm
Entire Package Weight:655.3g
Package Content
GWN7605LR 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide
Weatherproof Grade
IP66-level weatherproof capability when installed vertically
Compliance
FCC, CE, RCM, IC
