Περιγραφή
Description

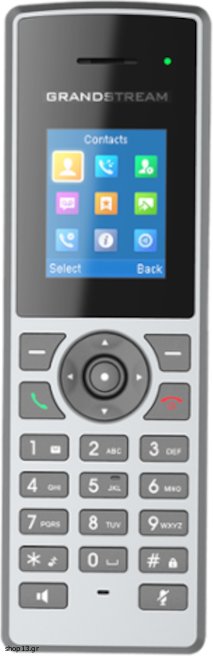

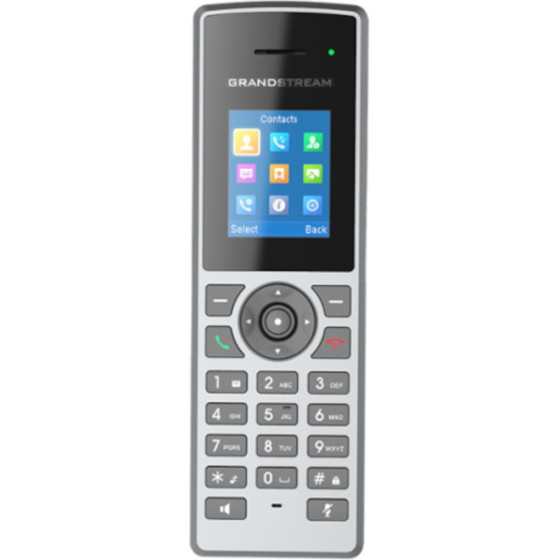

The DP722 is a mid-tier DECT cordless IP phone that allows users to mobilize their VoIP network throughout any business, warehouse, retail store and residential environment.
It is supported by Grandstream’s DP750 and DP752 DECT VoIP base stations and delivers a combination of mobility and excellent telephony performance.
Up to five DP722 handsets to be supported on each base station while each DP722 supports a range of up to 350 meters outdoors (with DP752) and 50 meters indoors, 20 hours of talk time and 250-hour standby time.
It touts a suite of robust features including support for up to 10 SIP accounts per handset, full HD audio, 1.8 inch color display, a 3.5mm headset jack, push-to-talk, a speakerphone and more.
When paired with Grandstream’s DECT Base Stations, the DP722 offers an affordable mid-range cordless DECT solution for any business or residential user.
Features
Supports a range of up to 350 meters outdoors and 50 meters indoors when used with the DP752 (300 meters outdoors when used with DP750)
1.8 inch (128x160) color LCD with 2 programmable soft keys
Offers 20 hours talk time and 250 hours standby time
Supports up to 10 SIP accounts and 10 lines per handset as well as 3-way conferencing
Push-to-talk via a configurable button
Seamless 1-touch door control with Grandstream’s GDS series of Facility Access devices
HD audio on the speakerphone, handset, and headset jack
Software and firmware updates over-the-air
Specifications
Air Interface Telephony standards
DECT
Frequency bands
1880 - 1900 MHz (Europe), 1920 - 1930 MHz (US)
1910 - 1920 MHz (Brazil), 1786 - 1792 MHz (Korea),
1893 - 1906 MHz (Japan), 1880 - 1895 MHz (Taiwan)
Number of Channels
10 (Europe), 5 (US, Brazil or Japan), 3 (Korea), 8 (Taiwan)
Outdoor Range
up to 350 meters (DP752) or up to 300 meters (DP750)
Indoor Range
up to 50 meters
Peripherals 1.8 inch (128x160) color TFT LCD
23 keys including 2 soft keys, 5 navigation/ menu keys, 4 dedicated function keys for SEND, POWER/END, SPEAKERPHONE, MUTE
3-color MWI LED
3.5mm headset jack
Removable belt clip
Micro-USB port for alternative charging and non-battery operation
Protocol/Standards
Hearing Aid Compatibility (HAC) compliant
Voice Codecs
G.722 codec for HD audio and G.726 codec for narrow band audio (G.711μ/a-law, G.723.1, G.729A/B, iLBC and OPUS are supported via companion DECT base station), AEC, AGC, Ambient noise reduction on handset mic, advanced noise suppression for incoming audio
Telephony Features
Hold, transfer, forward, 3-way conference, push-to-talk, call park, call pickup, downloadable phonebook, call waiting, call log, auto answer, click-to-dial, flexible dial plan
HD Audio
Yes, both on Handset and Speakerphone
Security
DECT authentication & encryption
Multi-language
English, Czech, German, Spanish, French, Hebrew, Italian, Dutch, Polish, Portuguese, Russian, Turkish, Arabic, Chinese Simple, Chinese Tradition, Japanese, Korean, Slovakian, Serbian
Upgrade/ Provisioning
Software Upgrade Over-The-Air (SUOTA), handset provisioning Over-The-Air
Multi-line Access
Each handset may access up to ten (10) lines
Power & Green Energy Efficiency Universal Power Supply Input AC 100-240V 50/60Hz; Output 5VDC 1A; Micro-USB connection;
Rechargeable 800mAh Ni-MH Low Self-Discharge (LSD) AAA batteries (250 hours of standby time and 20 hours of talk time)
Package Content
Handset unit, universal power supply, charger cradle, belt clip, 2 batteries, Quick Start Guide
Dimensions (H x W x D)
Handset: 158 x 50 x 28.1mm with buckle; Charger cradle: 81.15 x 75.89 x 36.36mm
Weight
Handset: 110g; Charger cradle: 44g; Universal power supply: 50g; Package: 328g
Temperature and Humidity Operation
-10o to 50oC (14 to 122oF
Charging
0 to 45oC (32 to 113oF)
Storage
-20o to 60oC (-4 to 140oF
Humidity
10% to 90% non-condensing
Compliance FCC
FCC Part 15B; FCC Part 15D; SAR (FCC 47 CFR Part2.1093; IEEE 1528; IEC 62209-2); FCC Part68 HAC; FCC ID
CE
EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1;EN 301 489-1/-6; EN 301 406; EN 50332-2; SAR(EN50360;EN50566;EN 50663;EN62209-1; EN62209-2; EN 62479); RED NB Cert
RCM
AS/NZS CISPR32; AS/NZS 60950.1;AS/CA S004;AS/ACIF S040
ANATEL, EAC, UL (adapter)
