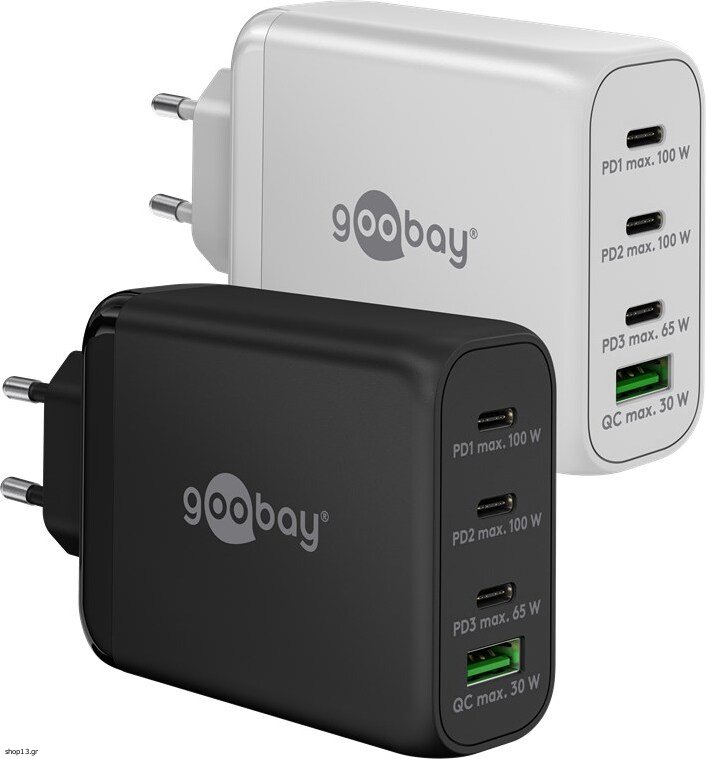

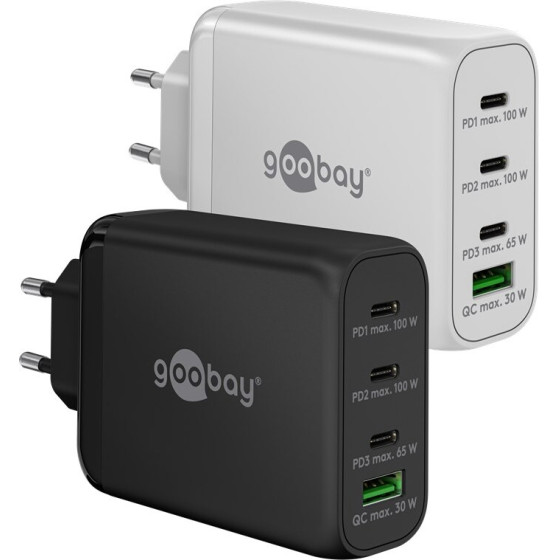

Small, yet larger than life! The compact, lightweight power supply unit is the ultimate companion for your mobile life: With maximum power at minimum size, it charges even high-performance notebooks quickly and reliably with up to 100 W. The various USB port types offer full flexibility and the option to charge up to four devices simultaneously.
Input, Voltage Range: 100 - 240 (AC) V
Number of outputs: 4
Markings: CE, WEEE, Haus, Quader, Indoor use
depth: 29.5 mm
Length: 115 mm
Weight: 227 g
Width: 61 mm
max. performance: 100 W
max. performance: 100.0 W
Average active efficiency: 86.7 %
Efficiency at low load (10 %): 82.4 %
No-load power consumption: 0.08 W
Output:
USB-C PD1: max. 100.0 W
USB-C PD2: max. 100.0 W
USB-C PD3: max. 65.0 W
USB-A: max. 30.0 W
Total: max. 100.0 W
USB-C1/C2:
5.0 V max. 3.0 A (15.0 W)
9.0 V max. 3.0 A (27.0 W)
12.0 V max. 3.0 A (36.0 W)
15.0 V max. 3.0 A (45.0 W)
20.0 V max. 5.0 A (100.0 W)
PPS: 3.3 V - 21.0 V max. 5.0 A (100.0 W)
USB-C3:
5.0 V max. 3.0 A (15.0 W)
9.0 V max. 3.0 A (27.0 W)
12.0 V max. 3.0 A (36.0 W)
15.0 V max. 3.0 A (45.0 W)
20.0 V max. 3.25 A (65.0 W)
PPS: 3.3 V - 11.0 V max. 5.0 A (65.0 W)
USB-A QC:
4.5 V max. 5.0 A (22.5 W)
5.0 V max. 4.5 A (22.5 W)
9.0 V max. 3.0 A (27.0 W)
12.0 V max. 2.5 A (30.0 W)
15.0 V max. 2.0 A (30.0 W)
Input, type: Europlug (Type C CEE 7/16)
Output, type: USB-C(TM)-socket
Consumption Unit: 1 pc. in polybag
Material: ABS
GaN Technology: yes
Color version: white
Output 2, type: USB-C(TM)-socket
Output 3, type: USB-C(TM)-socket
Output 4, type: USB-A QC (QuickCharge)
Color: white
