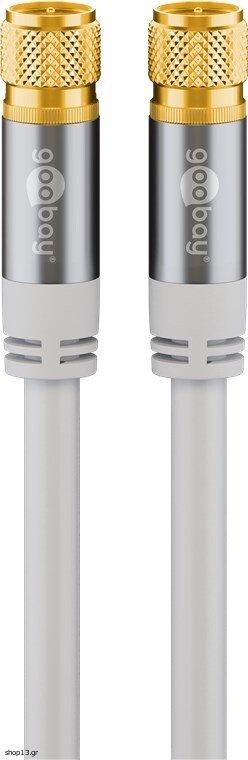

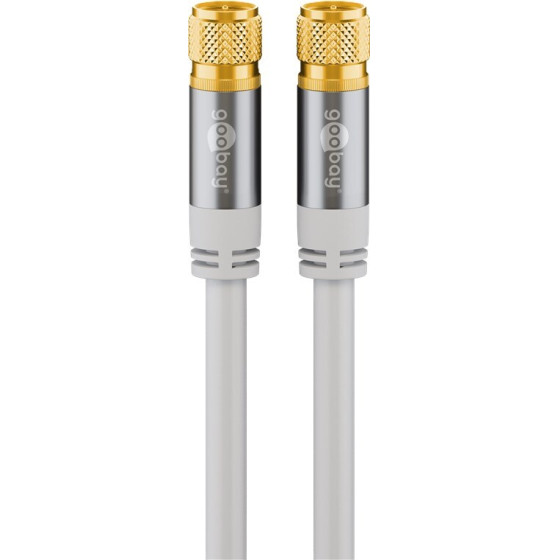

Ideal for high-resolution transmissions of digital satellite signals such as DVB-S and DVB-S2, e.g. HD TV, Full HD, Ultra HD (4K and higher). The cable provides a reliable connection between the connection/multimedia socket and the reception device such as TV, satellite receiver, cable modem, cable router, etc.
Cable sheath diameter (approx.): 8 mm
inner conductor, core diameter: 1.02 mm
Dielectric diameter: 5
Number of shieldings: 4 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 135 dB
Kink protection: both sides
Cable type: coaxial cable
Material cable sheath: PVC
Inner conductor material: CU (copper)
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 128x
Type 3, shielding: foil (aluminium)
Type 4, shielding: braid (aluminium) 128x
Connection, housing material: aluminum
Connection, contact material: gold-plated
Connection, shielding: yes
Connection, type: F male
Connection 2, type: F male
Color: white
Color version: white
Consumption Unit: 1 pc. in polybag
Special feature: big nut
Cable length: 10 m
