Περιγραφή

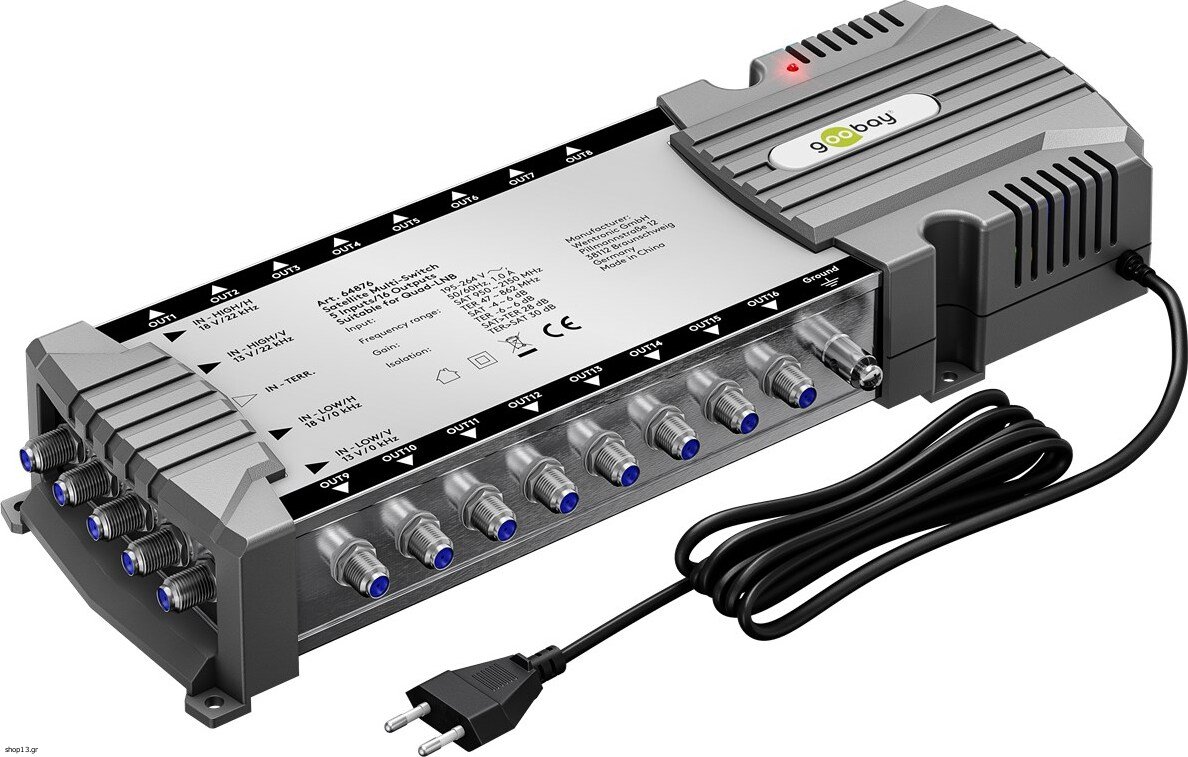

The multiswitch is your easy solution for connecting several devices for TV and radio reception in the same house via just one satellite dish. The switch ensures that each of the 16 subscribers can enjoy their individual programme - for superior flexibility in TV reception.
number of inputs: 5
Input Voltage: 230 V (AC)
max. subscriber: 16
Number of outputs: 16
switching commands: 13/0; 18/0; 13/22; 18/22
Markings: CE, WEEE
depth: 133 mm
Height: 55.1 mm
Operating temperature up to: 50 °C
Weight: 840 g
Width: 335.2 mm
Frequency range: 950 - 2.150 MHz
Frequency range terrestrial: 47 - 862 MHz
Impedance: 75 Ω
Transmission modes: DVB-S, DVB-S2, DVB-T, DVB-T2
Return loss SAT inputs: 10 dB
Return loss SAT outputs: 8 dB
Reverse flow damping terrestrial Inputs: 8 dB
Return loss terrestrial outputs: 8 dB
Output level SAT: 100 dBuV
Output level terr.:: 88 dBuV
Polarization decoupling SAT: 28 - 30 dB
Input, type: F female
Output, type: F female
Color: silver, grey
Color version: silver-grey
Consumption Unit: 1 pc. in cardboard box
Material: metal, plastic
