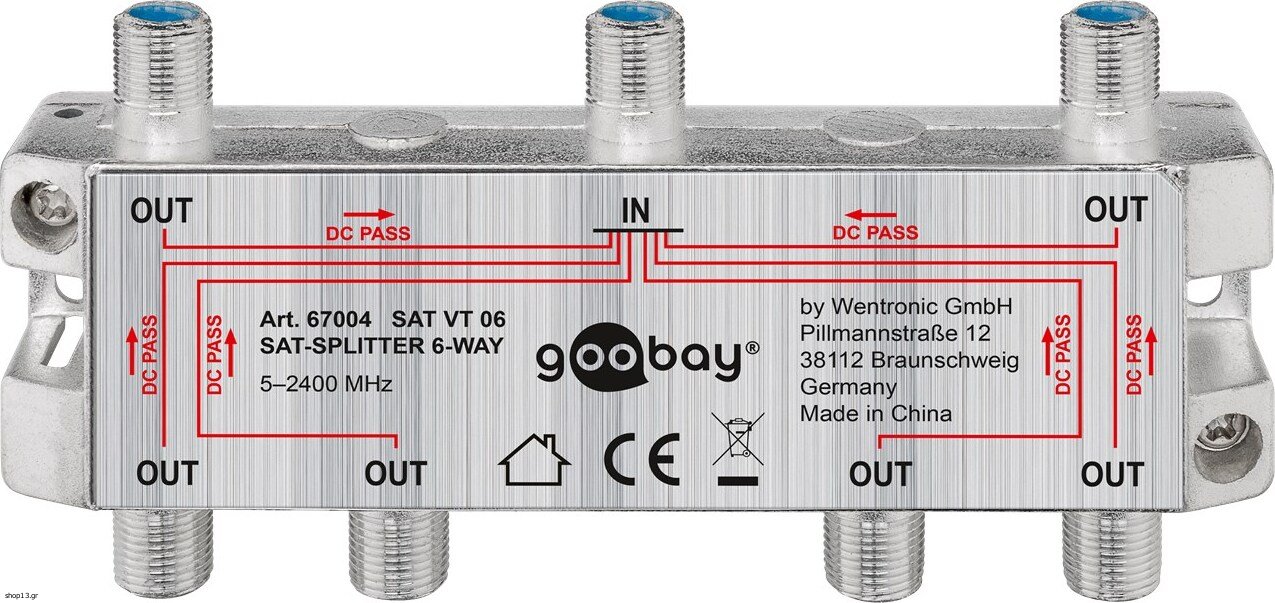

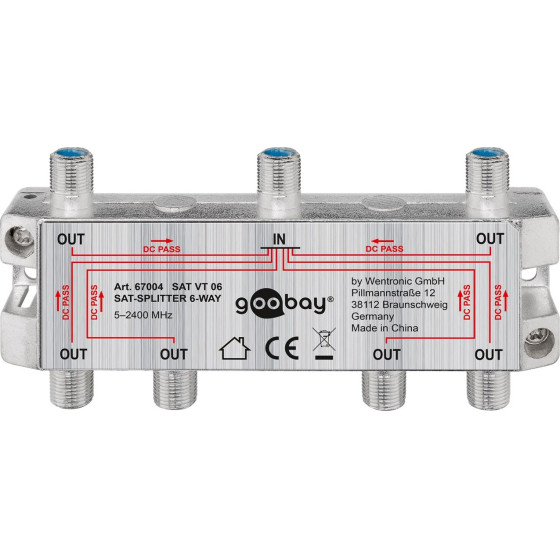

Goobay Sat Distributor, 6-Way - (67004)

number of inputs: 1
Markings: CE, WEEE
Frequency range from: 5 MHz
Frequency range until: 2400 MHz
Connection, type: F female
Connection 2, type: F female
Output, type: F female
Color: silver
Color version: silver
Consumption Unit: 1 pc. in polybag
Number of outputs: 6
Details:
INSERTION LOSS (IN-OUT):

5 - 40 MHz: 11.5 dB

40 -1000 MHz: 12 dB

1000 - 2050 MHz: 17 dB

2050 - 2400 MHz: 17.5 dB

INSERTION LOSS (OUT-OUT):

5 - 40 MHz: 20 dB

40 -1000 MHz: 18 dB

1000 - 2050 MHz: 18 dB

2050 - 2400 MHz: 20 dB

RETURN LOSS:

5 - 40 MHz: 9 dB

40 -1000 MHz: 12 dB

1000 - 2050 MHz: 12 dB

2050 - 2400 MHz: 10 dB

Input, type: F female
