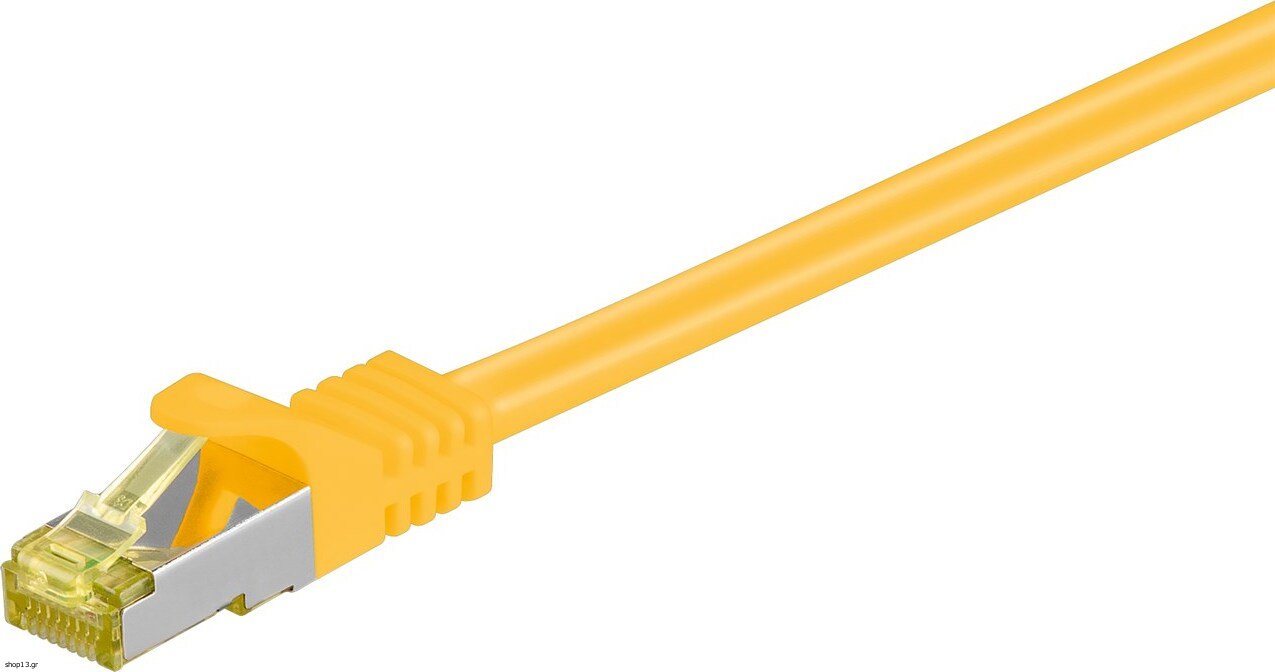

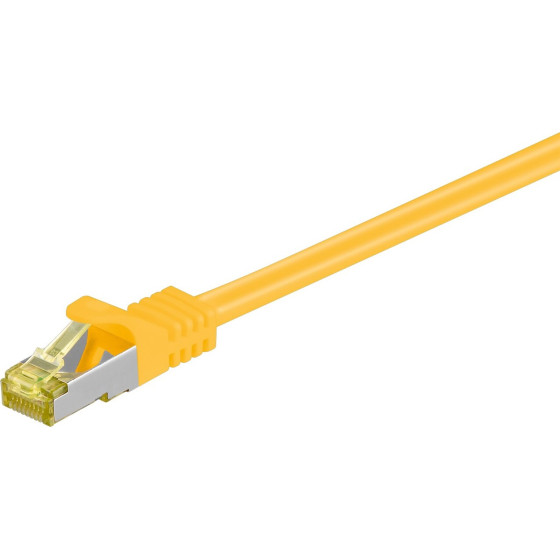

Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Our solutions are especially suitable for high-resolution image transmission in 8K @ 60 Hz and 4K @ 120 Hz. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
AWG: 26/7 (stranded)
bending radius >: 48 mm
Specification: CAT 7
Cable sheath diameter (approx.): 6.2 mm
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Contacting: EIA/TIA-568 B
Markings: CE, WEEE
Operating temperature up to: 65 °C
Operating temperature from: -20 °C
max. bandwidth: 500 MHz
Kink protection: both sides
Cable type: Cat 7 raw cable
Material cable sheath: LSZH
Inner conductor material: CU (copper)
LSZH compliant: yes
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
Connection, contact material: gold-plated 50um
Connection, shielding: yes
Connection, type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Latch protection: both sides
Color: yellow
Consumption Unit: 1 pc. in polybag
Special feature: Length indication on connector
Cable length: 20 m
Color version: yellow
