Περιγραφή

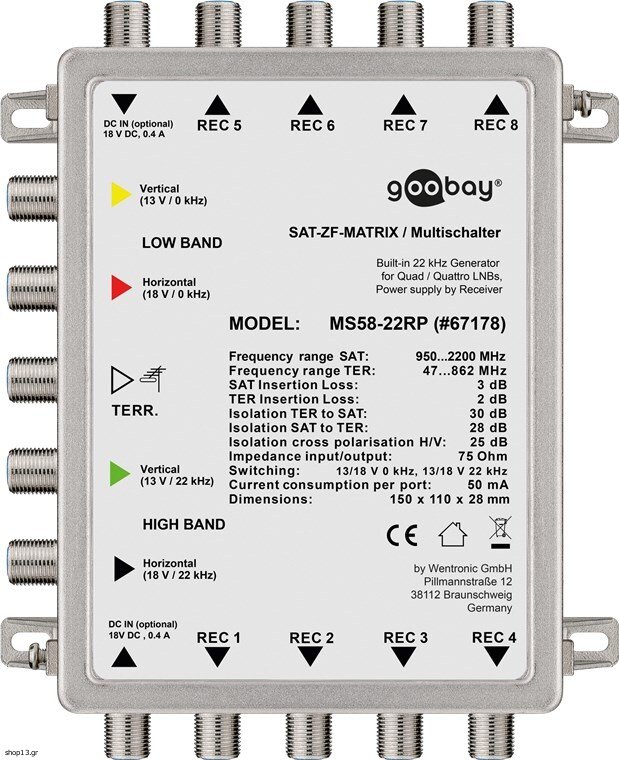

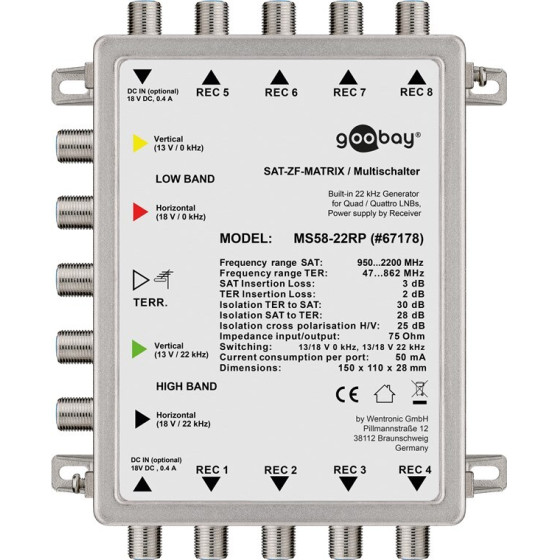

It can even fit into the smallest corner in the attic, thanks to its compact design. It doesn’t even need a power supply cord, since the multi-switch takes the power that it and the LNB require from the connected receivers.
number of inputs: 5
power supply for LNB: 400
max. subscriber: 8
Number of outputs: 8
switching commands: 13/0; 18/0; 13/22; 18/22
Markings: WEEE, CE
Height: 28.7 mm
Length: 149.9 mm
Width: 124 mm
Frequency range: 950 - 2.200 MHz
Frequency range terrestrial: 47 - 862 MHz
Impedance: 75 Ω
Transmission modes: DVB-S, DVB-S2, DVB-T, DVB-T2
Return loss SAT inputs: 10 dB
Return loss SAT outputs: 8 dB
Polarization decoupling SAT: 28 - 30 dB
Input, type: F female
Output, type: F female
Color: silver
Color version: silver
Consumption Unit: 1 pc. in cardboard box
packaging: en, de, fr, it
