Περιγραφή

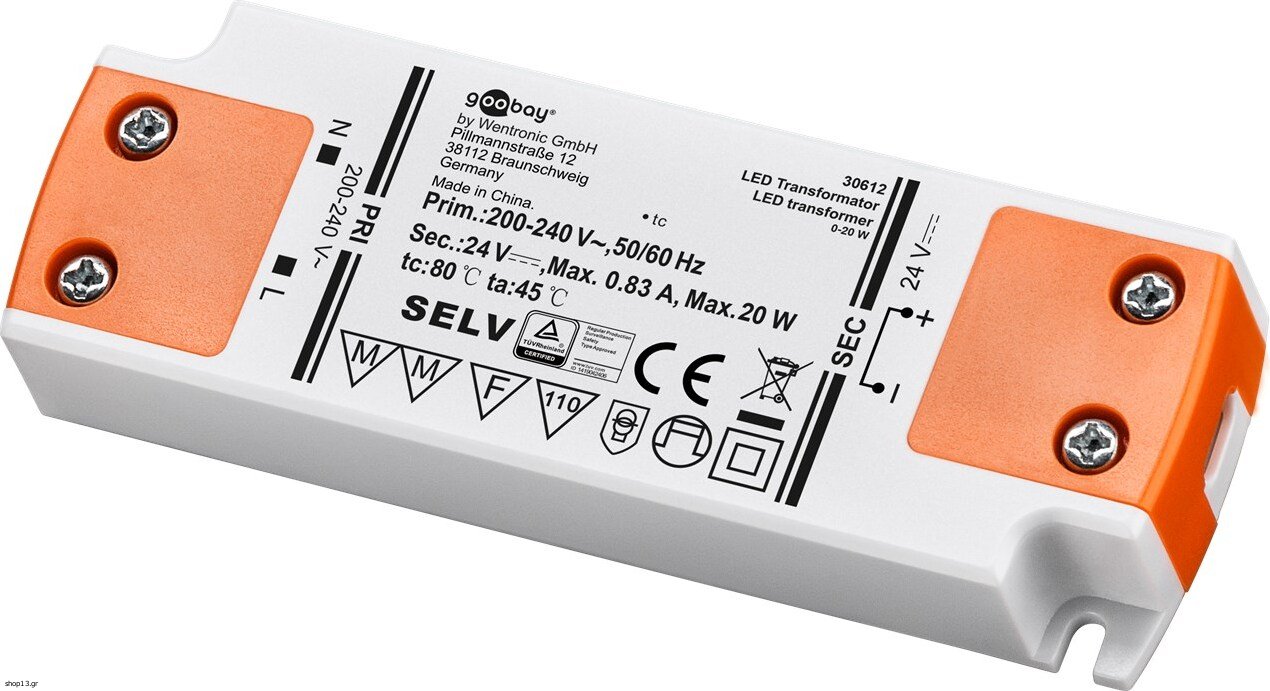

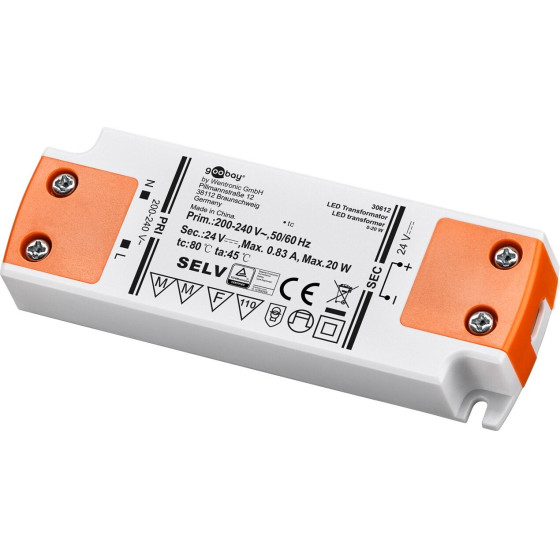

The transformer supplies LEDs with constant voltage (CV), offering a high degree of flexibility, e.g. when connecting different lengths of LED strips. The perfect solution for LED modules with fixed voltage and their own series resistor.
Input Cross Section: 0.75 mm²
number of inputs: 2
Input, Voltage Range: 200 - 240 (AC) V
Output Cross Section: 0.75 mm²
Output, max. amperage: 0.83 A
Output, max. amperage: 0.8 A
Output, max. amperage: 830.0 mA
Number of outputs: 2
Output, voltage (DC): 24 V (DC)
Output, voltage (DC): 24.0 V (DC)
Appliance Class: II
Markings: WEEE, CE, bauartgepr?ft: T?V Rheinland, SELV, MM
Height: 16 mm
Length: 103 mm
Manufacturer designation: Goobay
Operating temperature up to: 45 °C
Operating temperature from: -20 °C
protection class: IP20
Weight: 63 g
Width: 35.5 mm
max. performance: 20 W
max. performance: 20.0 W
No-load power consumption: 0.5 W
CAS no.: 7439-92-1
chemical substance: Pb
SCIP no.: e767d787-772b-4030-9653-ae0ec3c35b71
Input, type: Screw clamp
Output, type: Screw clamp
Applications: Furniture installation
Color: white, orange
Color version: white-orange
Consumption Unit: 1 pc. in cardboard box
Special feature: Constant voltage (for parallel connection)
packaging: cs, da, de, en, es, fr, it, nl, pl, sv
Dimmability: not dimmable
