Περιγραφή

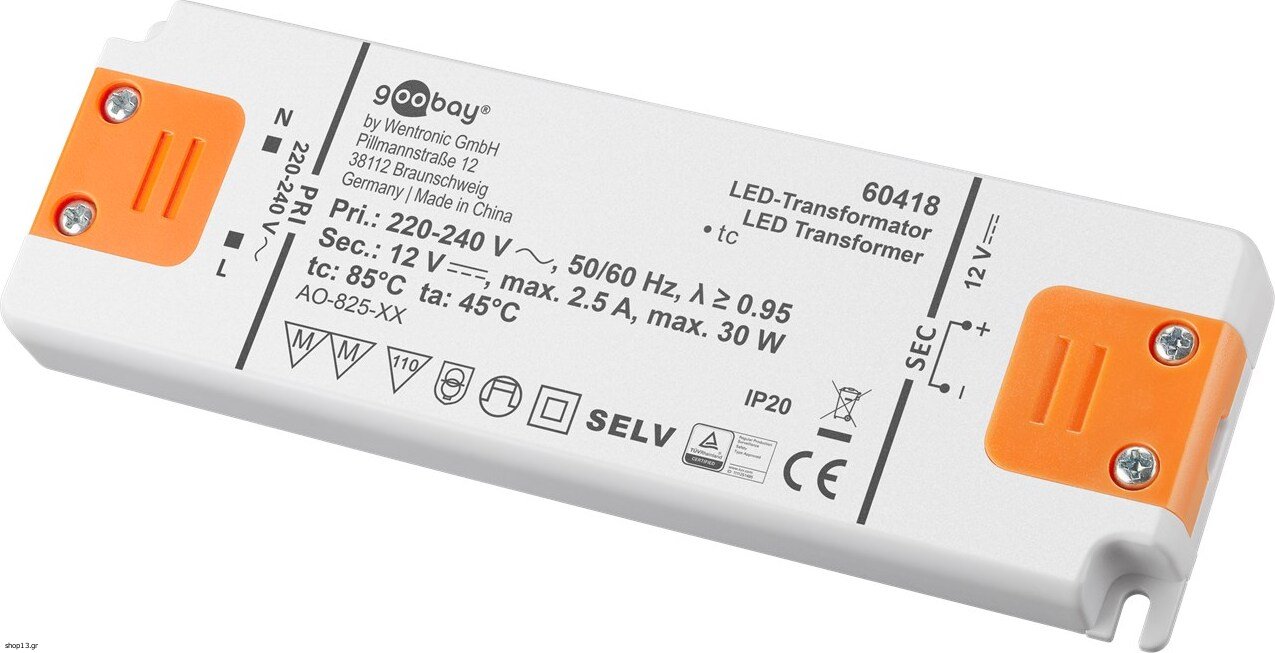

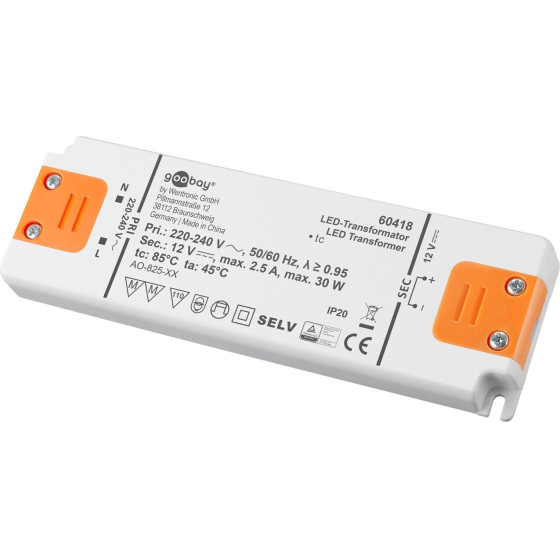

The transformer supplies LEDs with constant voltage (CV), offering a high degree of flexibility, e.g. when connecting different lengths of LED strips. The perfect solution for LED modules with fixed voltage and their own series resistor.
Input Cross Section: 0.75 mm²
number of inputs: 2
Input, Voltage Range: 220 - 240 (AC) V
Output Cross Section: 0.75 mm²
Output, max. amperage: 2500 mA
Output, max. amperage: 2.5 A
Output, max. amperage: 2.5 A
Output, max. amperage: 2500.0 mA
Number of outputs: 2
Output, voltage (DC): 12 V (DC)
Output, voltage (DC): 12.0 V (DC)
Appliance Class: II
Markings: WEEE, CE, bauartgepr?ft: T?V Rheinland, SELV, MM
Height: 14 mm
Length: 154 mm
Manufacturer designation: Goobay
Operating temperature up to: 45 °C
Operating temperature from: -20 °C
protection class: IP20
Weight: 92 g
Width: 50 mm
max. performance: 30 W
max. performance: 30.0 W
No-load power consumption: 0.5 W
CAS no.: 7439-92-1
chemical substance: Pb
SCIP no.: 3b20efc6-ec20-4996-aef3-d4841eec155e
Input, type: Screw clamp
Output, type: Screw clamp
Applications: Furniture installation
Color: white, orange
Color version: white-orange
Consumption Unit: 1 pc. in cardboard box
Special feature: Constant voltage (for parallel connection)
packaging: cs, da, de, en, es, fr, it, nl, pl, sv
Dimmability: not dimmable
