Περιγραφή

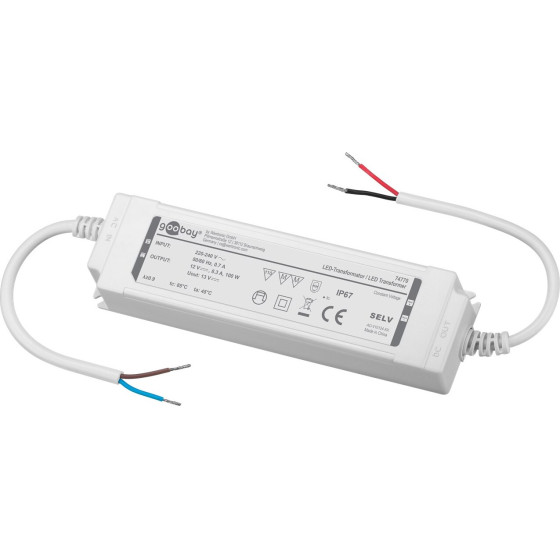

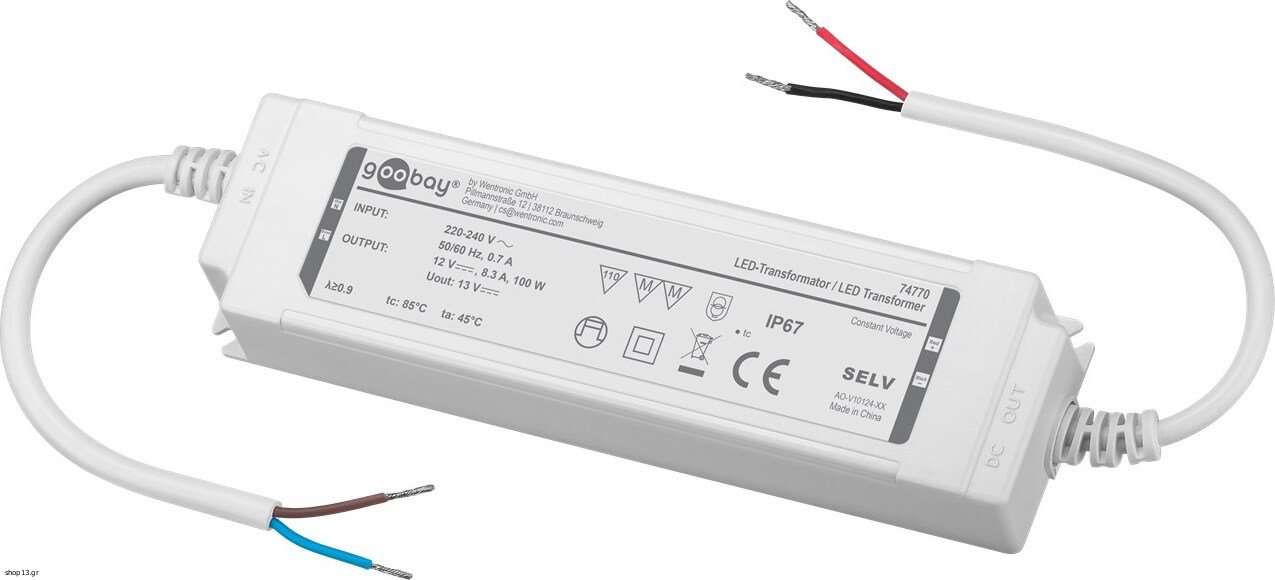

Ideal for lighting setups in damp rooms and in outdoor areas, e.g. bathroom and garden lighting as well as pond or pool lighting. The transformer supplies LEDs with constant voltage (CV), offering a high degree of flexibility, e.g. when connecting different lengths of LED strips. The perfect solution for LED modules with fixed voltage and their own series resistor.
Input Cross Section: 0.75 mm²
number of inputs: 1
Input, Voltage Range: 220 - 240 (AC) V
Output Cross Section: 1 mm²
Output, max. amperage: 8.3 A
Output, max. amperage: 8.3 A
Number of outputs: 1
Output, voltage (DC): 12 V (DC)
Output, voltage (DC): 12.0 V (DC)
Output, Voltage Range: 11,4 - 12,6 V (DC) V
Appliance Class: II
Markings: WEEE, CE, SELV, MM
Height: 37 mm
Length: 193 mm
Power frequency: 50 Hz
Manufacturer designation: Goobay
Operating temperature up to: 45 °C
Operating temperature from: -20 °C
protection class: IP67
Weight: 600 g
Width: 52 mm
max. performance: 100 W
max. performance: 100.0 W
Power consumption: 100 W
No-load power consumption: 0.5 W
Average active efficiency: 88 %
True power factor: 0.9
Input current: 0.7 A
Input, type: Loose cable ends 2 pin
Output, type: Loose cable ends 2 pin
Applications: Damp room, Outdoor
Color: white
Color version: white
Consumption Unit: 1 pc. in cardboard box
Special feature: Constant voltage (for parallel connection)
Dimmability: not dimmable
