Περιγραφή
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 x 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI(TM) jack sockets. The Keystone modules can be universally applied and interchanged.

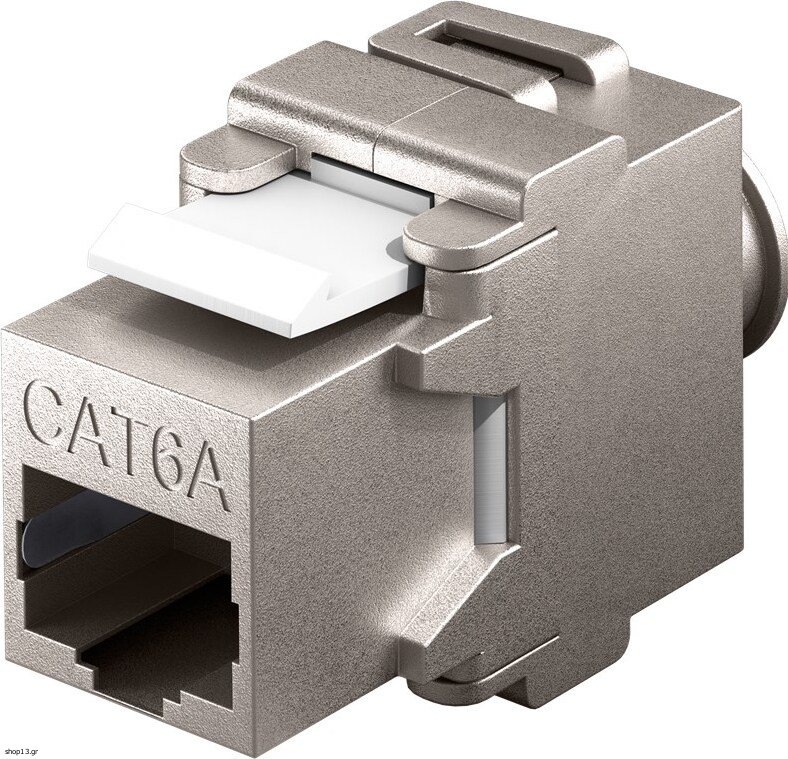

Specification: CAT 6A
Shielding class: STP
Contacting: EIA/TIA-568 A/B
Height: 26.5 mm
Length: 41.7 mm
Width: 17.1 mm
max. bandwidth: 500 MHz
construction form: 180° cable outlet, butterfly type
Cable type: for solid or stranded wire
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag
