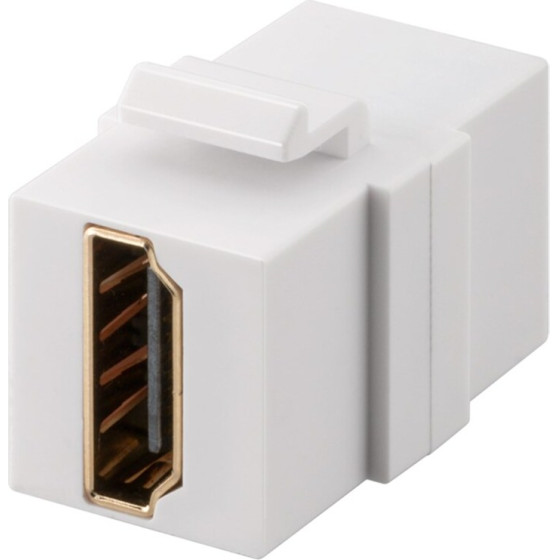

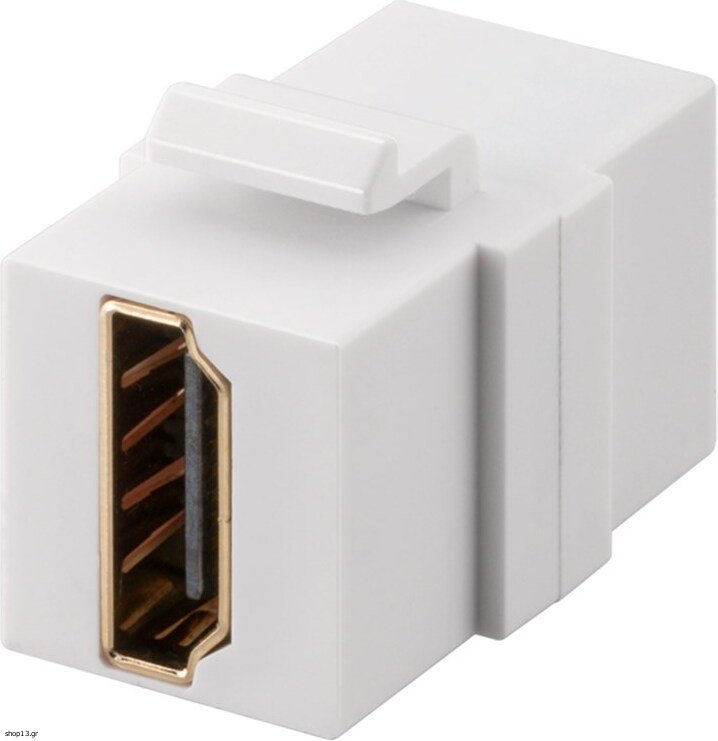

The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 x 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI(TM) jack sockets. The Keystone modules can be universally applied and interchanged.
Markings: WEEE, CE
Goobay Version: 2.0
Height: 16.1 mm
Length: 28 mm
Operating temperature up to: 85 °C
Operating temperature from: -20 °C
Width: 17.2 mm
max. transmission rate: 18 Gbit/s
Supported video standards: 4K/60Hz (3840x2160) UHD
construction form: Keystone grid (14,9 x 17,0 mm)
Connection, contact material: gold-plated
Connection, type: 2x HDMI(TM) female (Type A)
Disclaimer: The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress andthe HDMI Logos are trademarks or registered trademarks of HDMI LicensingAdministrator, Inc.
Color: white
Color version: white
Consumption Unit: 1 pc. in polybag
