Reliable performance of the network cable in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.
Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09):
2 Connector Channel Copper, Class I up to 2 GHz
GHMT Type Approval
Balanced cord: Wentronic GmbH CAT 8 patch cord
Part no.: CAT 8.1 - 100 m S/FTP PiMF yellow
Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117
Certified installation cables: 61126, 61127, 61128
Certified Keystone coupler: 61145
AWG: 22/1 (solid)
Specification: CAT 8.1
Cable sheath diameter (approx.): 8.3 mm
inner conductor, core diameter: 0.6 mm
Diameter of insulated conductor: 1.6 mm (+/-0.05)
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Markings: CE, GHMT Premium Verification Programm
Impedance: 100 Ω
max. bandwidth: 2000 MHz

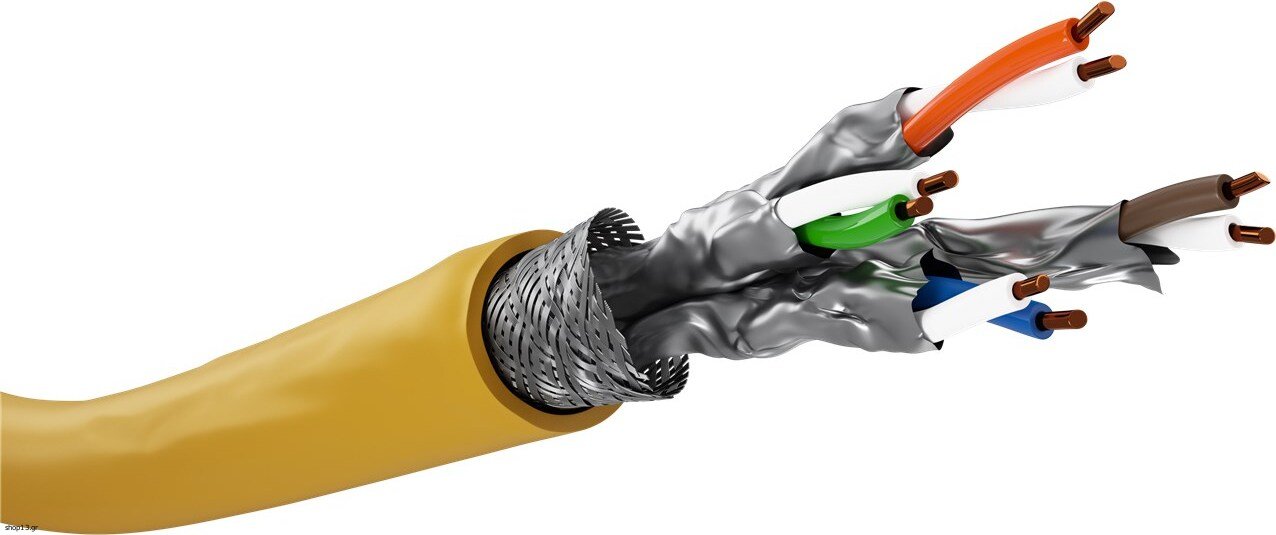

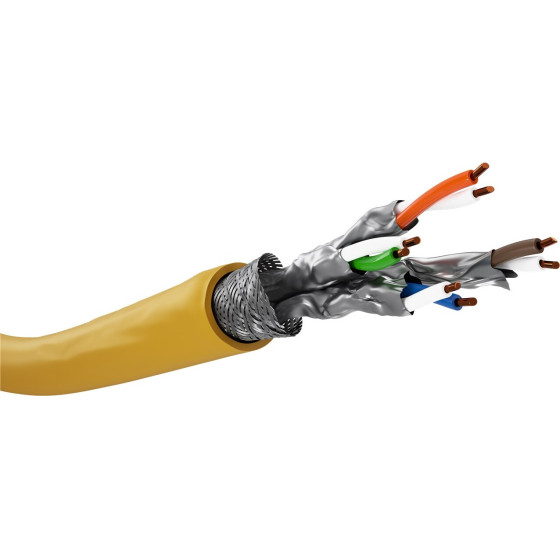

Cable type: Cat 8.1 raw cable
Material cable sheath: LSZH
Inner conductor material: CU (copper)
LSZH compliant: yes
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
Color: yellow
Outer sheath material: LSZH
Fire class (CPR): Dca
Cable length: 100 m
Meter scaling: yes
Color version: yellow
Consumption Unit: 1 pc. cable reel
