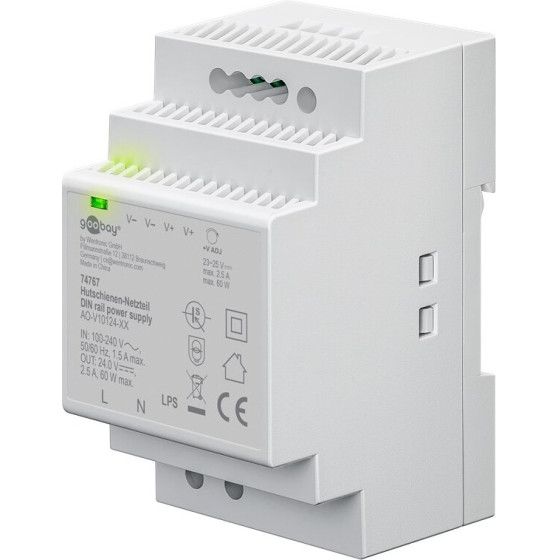

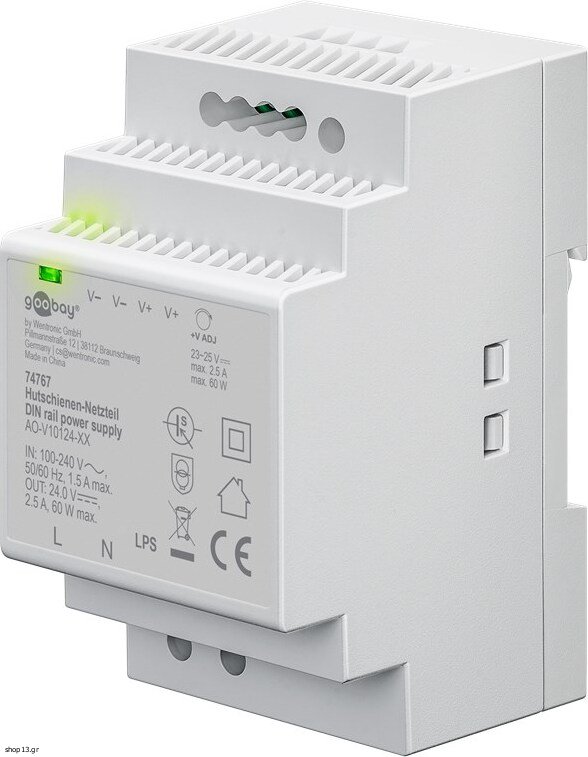

With 24 V and 60 W, the DIN rail power supply is the high-performance solution for industrial components that depend on a stable supply of constant DC voltage (CV), such as controllers like PLCs, larger alarm systems and cabling over longer distances. The compact, staircase-shaped design makes the power supply perfect for confined spaces with demanding heat requirements, such as control cabinets or junction boxes.
Input Cross Section: 0.75 mm²
number of inputs: 2
Input, Voltage Range: 100 - 240 (AC) V
Output Cross Section: 0.75 mm²
Output, max. amperage: 2.5 A
Output, max. amperage: 2.5 A
Number of outputs: 2
Output, voltage (DC): 24 V (DC)
Output, voltage (DC): 24.0 V (DC)
Output, Voltage Range: 20 - 29 V ADJ V
Appliance Class: II
Markings: WEEE, CE, UL
depth: 58.4 mm
Height: 90 mm
Power frequency: 50 Hz
Manufacturer designation: Goobay
Operating temperature up to: 50 °C
Operating temperature from: -20 °C
protection class: IP20
Warranty: 3 years
Weight: 180 g
Width: 52.5 mm
max. performance: 60 W
max. performance: 60.0 W
Power consumption: 60 W
Average active efficiency: 84 %
Input current: 1.5 A
Input, type: Screw clamp
Output, type: Screw clamp
Applications: control cabinets, House distribution
Color: white
Color version: white
Consumption Unit: 1 pc. in cardboard box
Special feature: Constant voltage (for parallel connection)
Dimmability: not dimmable
