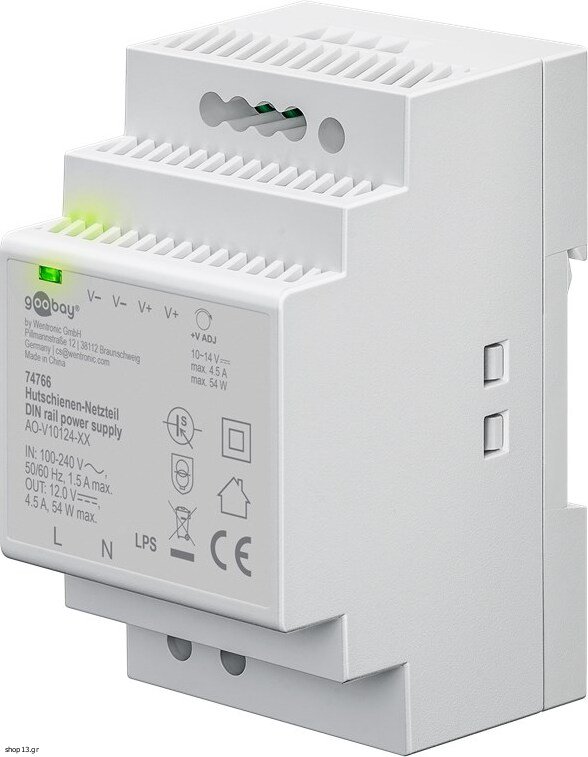

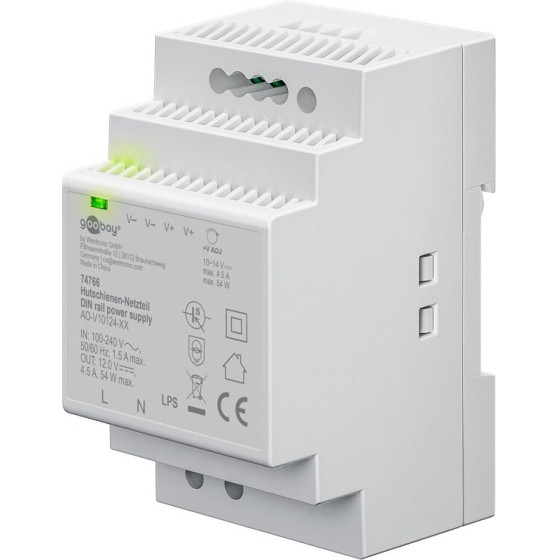

The DIN rail power supply is the ideal solution for building automation and security technology in which several devices with constant DC voltage (CV) and higher power requirements are networked, e.g. door intercom systems, cameras and lighting. The compact, staircase-shaped design makes the power supply unit perfect for confined spaces with demanding heat requirements, such as control cabinets or distribution boxes.
Input Cross Section: 0.75 mm²
number of inputs: 2
Input, Voltage Range: 100 - 240 (AC) V
Output Cross Section: 0.75 mm²
Output, max. amperage: 4.5 A
Output, max. amperage: 4.5 A
Number of outputs: 2
Output, voltage (DC): 12 V (DC)
Output, voltage (DC): 12.0 V (DC)
Output, Voltage Range: 10 - 14 V ADJ V
Appliance Class: II
Markings: WEEE, CE, UL
depth: 58.4 mm
Height: 90 mm
Power frequency: 50 Hz
Manufacturer designation: Goobay
Operating temperature up to: 50 °C
Operating temperature from: -20 °C
protection class: IP20
Warranty: 3 years
Weight: 180 g
Width: 52.5 mm
max. performance: 54 W
max. performance: 54.0 W
Power consumption: 54 W
Average active efficiency: 84 %
Input current: 20.0 A
Input, type: Screw clamp
Output, type: Screw clamp
Applications: control cabinets, House distribution
Color: white
Color version: white
Consumption Unit: 1 pc. in cardboard box
Special feature: Constant voltage (for parallel connection)
Dimmability: not dimmable
