Περιγραφή

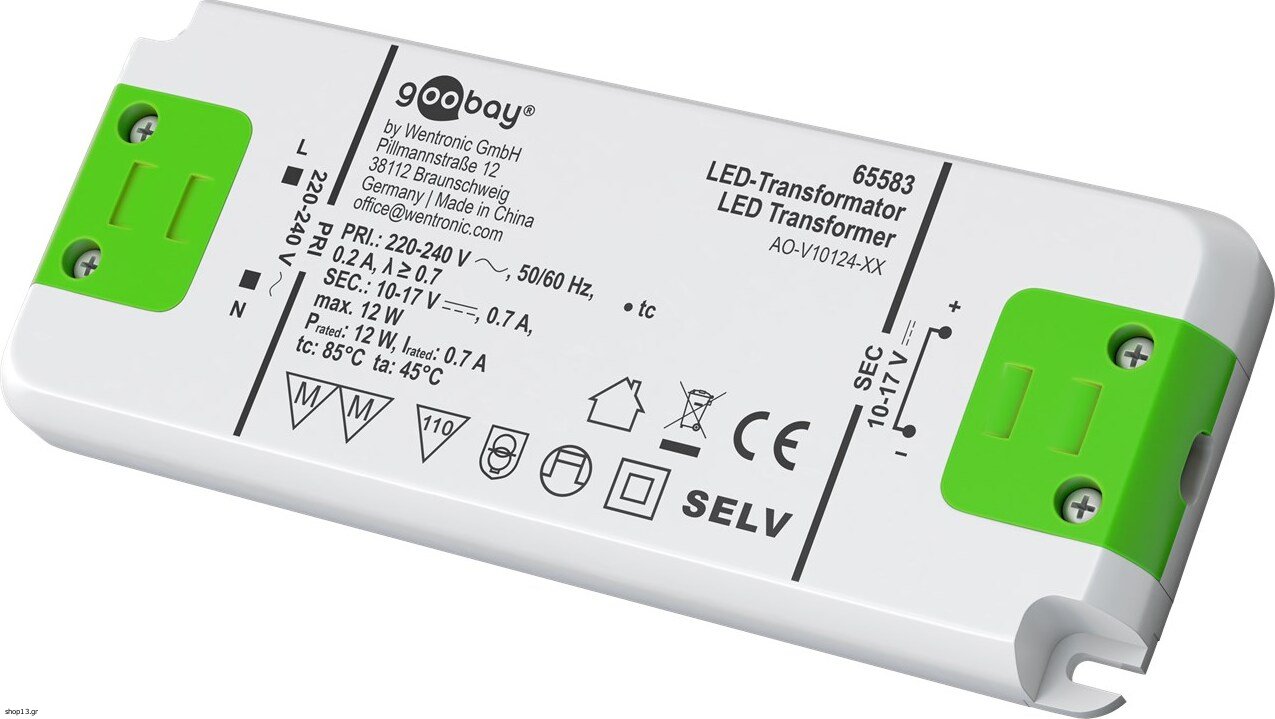

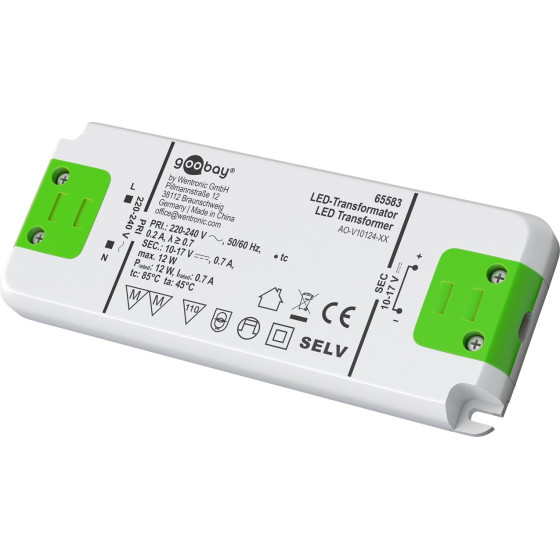

The transformer supplies LEDs with constant current (CC), effectively preventing flickering and heat wear of the connected LEDs. In contrast to transformers with a constant voltage (CV), drivers with a constant current provide a constant light quality and brightness and ensure a uniform current in all LEDs, even in series connections.
Input Cross Section: 0.75 mm²
number of inputs: 2
Input, Voltage Range: 220 - 240 (AC) V
Output Cross Section: 0.75 mm²
Output, max. amperage: 0.7 A
Output, max. amperage: 0.7 A
Output, max. amperage: 700.0 mA
Number of outputs: 2
Output, Voltage Range: 10 - 17 (DC) V
Appliance Class: II
Markings: WEEE, CE, Haus
Height: 11.2 mm
Length: 127.3 mm
Manufacturer designation: Goobay
Operating temperature up to: 45 °C
Operating temperature from: -20 °C
protection class: IP20
Weight: 60 g
Width: 50.1 mm
max. performance: 12 W
max. performance: 12.0 W
minimum load: 7
No-load power consumption: 0.1 W
Average active efficiency: 85 %
Input, type: Screw clamp
Output, type: Screw clamp
Applications: Furniture installation
Color: white, Green
Color version: white-green
Consumption Unit: 1 pc. in cardboard box
Special feature: Constant current (for series connection)
packaging: cs, da, de, en, es, fr, it, nl, pl, sv
Dimmability: not dimmable
