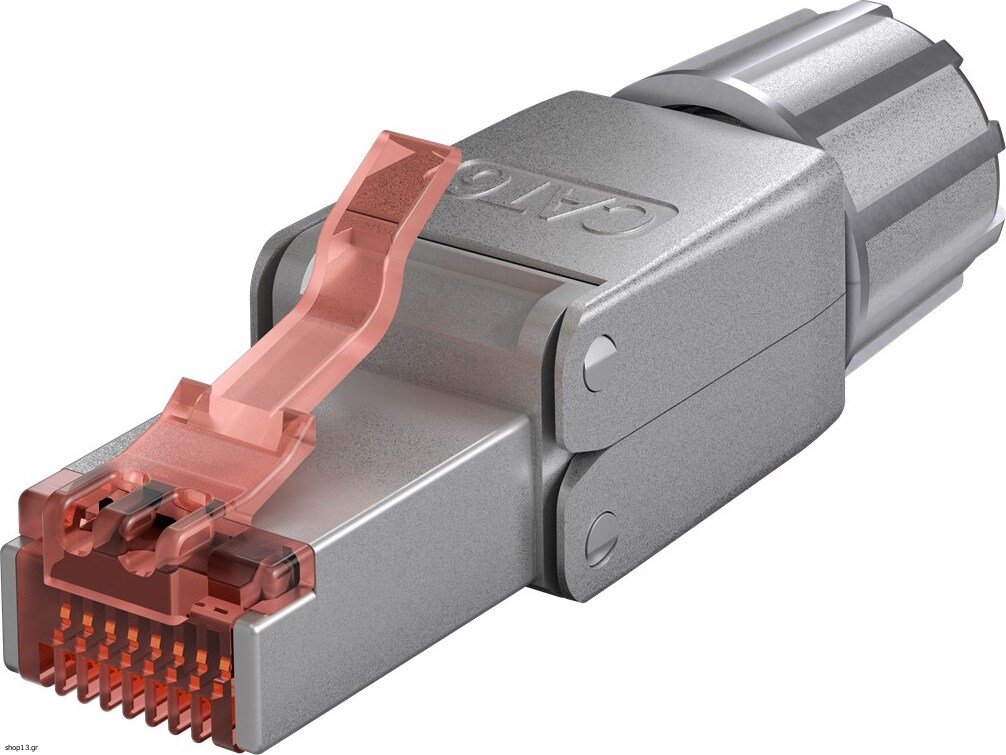

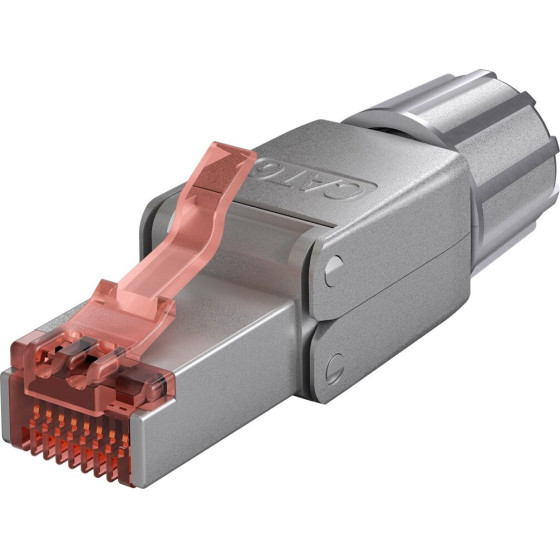

Goobay Cat 6 STP-Shielded RJ45 Connector For Field Assembly - (65940)

The RJ45 plug is time-saving and easy to install on the CAT cable due to the handy folding mechanism. Thanks to IDC assembly technology, no additional tools are required. Just place the individual wires on the colour-coded contacts and fix them in place by simply pressing the connector housing together.
AWG: 22 - 26
Specification: CAT 6
Shielding class: STP
Contacting: 8 Pin
Length: 49.7 mm
Width: 14.4 mm
max. bandwidth: 250 MHz
Connection, contact material: gold-plated 3um
Connection, type: RJ45 male (8P8C)
Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag
