Περιγραφή
Technical Paremeters:
Voltage
100-240V, 50HZ-60HZ
Total Rated power
375W
Lamp
Original Philips Phoenix YODN 9R Real HRI - 122000 Lumen @ 10M
Signal
DMX 512
Channel
16-20 DMX512 Channels
Motor
11pcs
Cooling system
4 fans+ 1 blower
Lens
Yiling Optical Lens ( 5 pcs)
Dimming
0-100% Mechanical & Auto Dimming , Free Dimming
Strobe
Strobe Macro Control, 1-20 Times/Second
Size
58*24*31CM
Packing size
64*30*38CM
Flightcase size( 1 for 2)
64*37*78CM
N.W
14.8kg
G.W( Carton)
22KG
G.W( flightcase)
60KG
The channels:
CHANNEL
CHANNEL MODE - DMX LIBRARY
STANARD
VECTOR
1
COLOR WHEEL
COLOR WHEEL
2
STOP/STROBE
STOP/STROBE
3
DIMMER
DIMMER
4
STATIC GOBO CHANGE
STATIC GOBO CHANGE
5
PRISM INSERTION 1
PRISM INSERTION 1
6
PRISM ROTATION 1
PRISM ROTATION 1
7
PRISM INSERTION 2
PRISM INSERTION 2
8
PRISM ROTATION 2
PRISM ROTATION 2
9
FOCUS
FOCUS
10
PAN
PAN
11
PAN FINE
PAN FINE
12
TILT
TILT
13
TILT FINE
TILT FINE
14
PAN AND TILT SPEED
PAN AND TILT SPEED
15
FROST & RAINBOW LENS
FROST & RAINBOW LENS
16
LAMP CONTROL & RESET
LAMP CONTROL & RESET
17
BLANK - RFU
18
COLOR SPEED
19
DIMMER, BEAM AND FROST SPEED
20
GOBO SPEED
Description:
260W Artemis Moving Head Beam Light using advanced design and processing technology, cast plastic casing with nice outlook, fully reflects the product's unique personality, the use of Philips Phoenix YODN 9R high-brightness lamp which features high brightness and stability.light mixing effect, particularly suitable for disco , television, dance halls, disco and nightclubs, and theater and other occasions.
260W Artemis Moving Head Beam Light's blending effect, the current of each lamp beads in strict accordance with the rated voltage and current control, It’s available independently controlled.

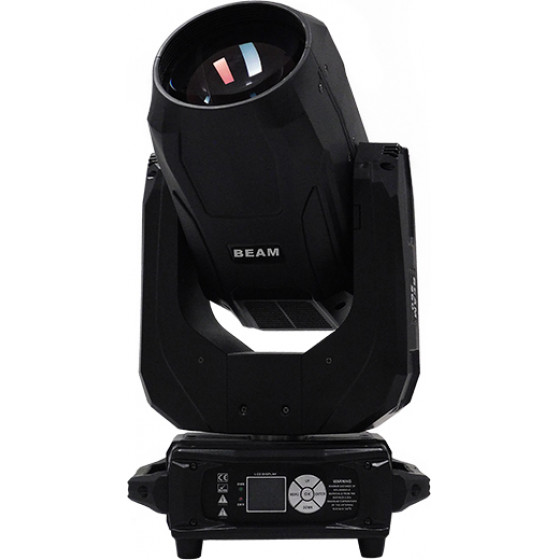

Κινούμενη Ρομποτική Κεφαλή Artemis BEAM Rainbow Effect Philips Phoenix YODN 9R RGBW 260W 230V Zoom 0° - 3.8° GloboStar 51153
Features:
Product Code SKU:
GloboStar 51153
Product Name:
GloboStar Artemis BEAM 260
Signal
International DMX 512
Operation mode
LCD screen and Button mode
Effect
Rainbow Effect + Optional
Color
One Color Wheel,13+Open
Gobo
11 Pattern+Blank
Matrix
Amazing Dot Matrix, Four tact Switch, 180° Turning Show
Prism
2 Independent Rotating Prisms Create 24 Beam Effect,
Two-Way Rotating Prism Plate, Beam Angle can be Freely Scaled
Strobe effect
Strobe Macro Control, 1-20 Times/Second
Dimming
0-100% Mechanical Dimming, Accurate Dimming, Free Dimming Available, Strobe Macro Control available
Protection
Over Heat Protection, Motor Protection
IP Rate:
IP20 Non Waterproof
Movement
Pan Scan: Horizontal 540° (16bit) Electric Correction
Tilt Scan: Vertical 270° (16bit) Electric Correction
Lens
Lens Optical System, Mechanical Focus, Beam Angle Zoom 0~3.8°
