Περιγραφή
Technical Paremeters:
Voltage
100-240V, 50HZ-60HZ
Total Rated power
350W
Lamp
Osram 7R HQ - 98000 Lumen @ 10M
Signal
DMX 512
Channel
16CH/20CH
Motor
11pcs
Coling system
4 fans+ 1 blower
Lens
Yiling optical lens ( 3 pcs)
Dimming
0-100%
Strobe
double strobe ( 1-9 times/second)
Size
40.5*33*45CM
Packing size
58*42*42CM
Flightcase size( 1 for 2)
75*47*75CM
N.W
18.5kg
G.W( Carton)
21KG
G.W( flightcase)
71KG
The channels:
CHANNEL
CHANNEL MODE
STANARD
VECTOR
1
COLOR WHEEL
COLOR WHEEL
2
STOP/STROBR
STOP/STROBE
3
DIMMER
DIMMER
4
STATIC GOBO CHANGE
STATIC GOBO CHANGE
5
PRISM INSERTION
PRISM INSERTION
6
PRISM ROTATION
PRISM ROTATION
7
MACRO
MACRO
8
FROST
FROST
9
FOCUS
FOCUS
10
PAN
PAN
11
PAN FINE
PAN FINE
12
TILT
TILT
13
TILT FINE
TILT FINE
14
PAN AND TILT SPEED
PAN AND TILT SPEED
15
RESET
RESET
16
LAMP CONTROL
LAMP CONTROL
17
BLANK
18
COLOR SPEED
19
DIMMER, BEAM AND FROST SPEED
20
GOBO SPEED
Description:

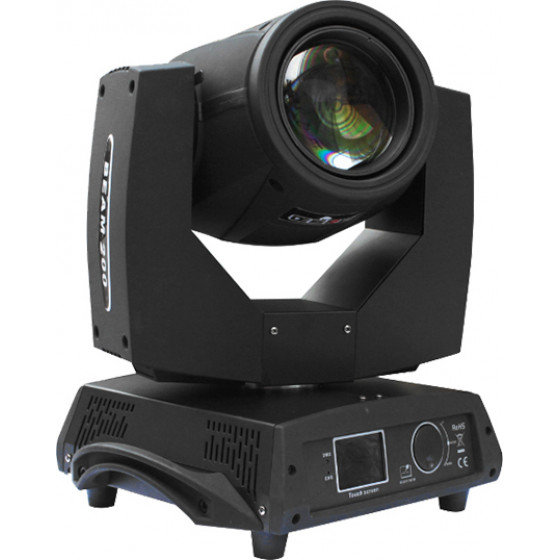

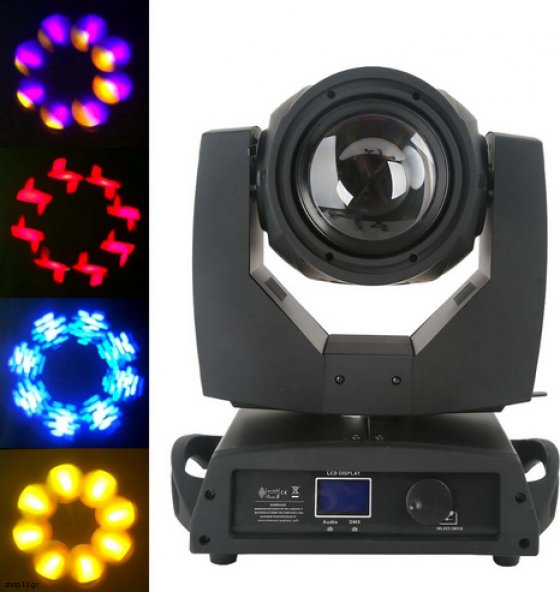

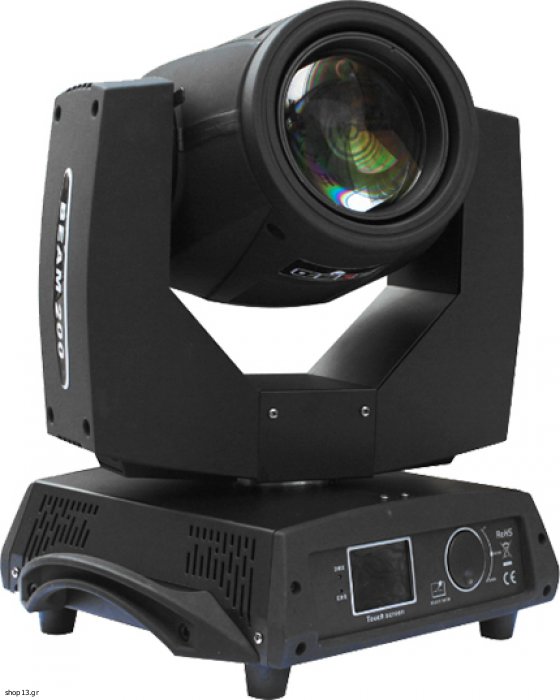

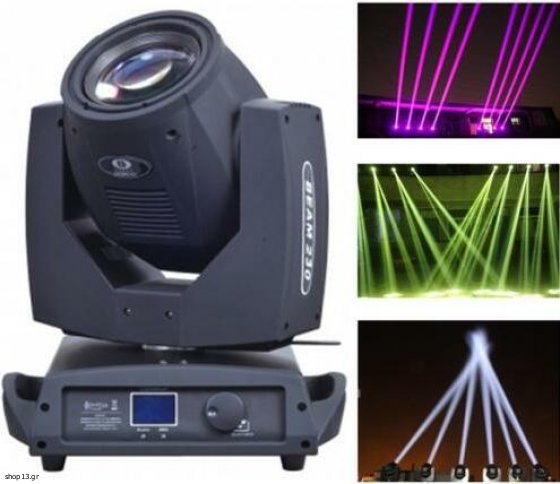

230W Moving Head Beam Light using advanced design and processing technology, cast plastic casing with nice outlook, fully reflects the product's unique personality, the use of Osram 7R high-brightness lamp which features high brightness and stability.light mixing effect, particularly suitable for disco , television, dance halls, disco and nightclubs, and theater and other occasions.
230W Moving Head Beam Light's blending effect, the current of each lamp beads in strict accordance with the rated voltage and current control, It’s available independently controlled.
Κινούμενη Ρομποτική Κεφαλή Apollo BEAM Rainbow Effect Osram YODN 7R RGBW 230W 230V Zoom 0° - 3.8° GloboStar 51115
Features:
Signal
International DMX 512
Operation mode
LCD touch screen and button two mode
Color
14+blank
Gobo
17+blank
Prism
Eight prism
Strobe effect
1-10 times/second
dimming
0-100% accurate dimming
Movement
Horizontal 540°, 270°vertical
